BRYANT UL2 Internal Grinder in used condition. Swing: 7", Max Grinding Bore: 5.5", Long Travel: 10". Features: Workhead Swivel -26°, Wheel Power 1.5HP, Workhead Speed 1850 RPM. Ideal for precision internal grinding tasks.
| Swing | 7" | 177.8 mm |
| Max Grinding Bore | 5.5" | 139.7 mm |
| Travel-Long | 10" | 254 mm |
| Workhead Swivel | -26 | -26 |
| Wheel Power | 1.5 hp | 1.1 kW |
| Workhead Speed | 1,850 RPM | 1,850 RPM |
| Weight | 10500 | 10500 |

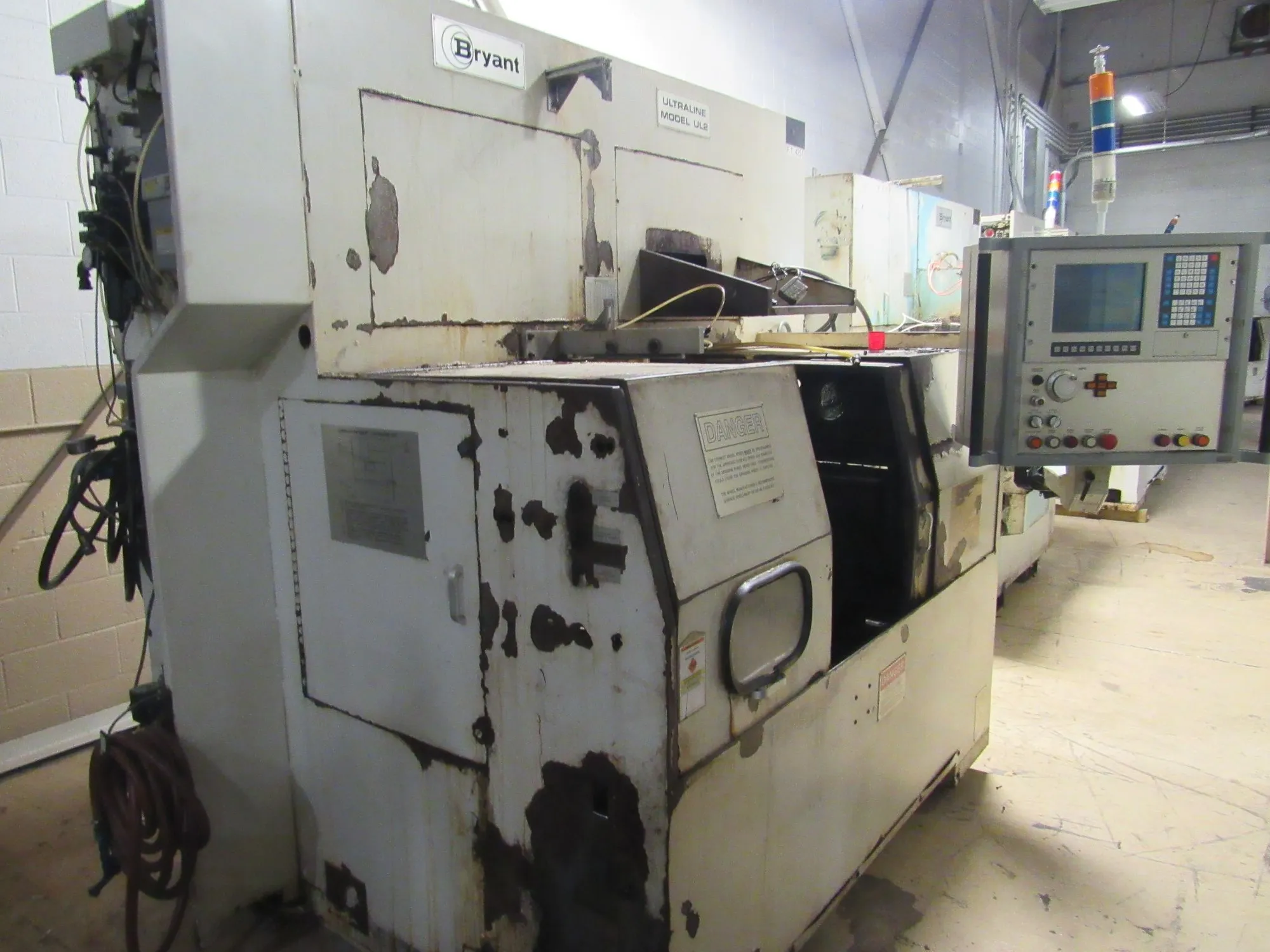

BRYANT UL2 INTERNAL GRINDER
S/N W-17711
STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS
EQUIPPED WITH
15mm Roll shoe.
PMAC – Motion card.
Allen Bradley PLC & I/O.
Kollmorgan drive & motors.
Volkman spindle drive.
Specifications are deemed accurate, however, subject to verification or prior sale.
