SEE THE ATTACHED -PDF FOR THE COMPLETE PURCHASE AGREEMENT..SHOWING MACHINE PRICE AND ALL PURCHASED OPTIONS. WITH PRICING

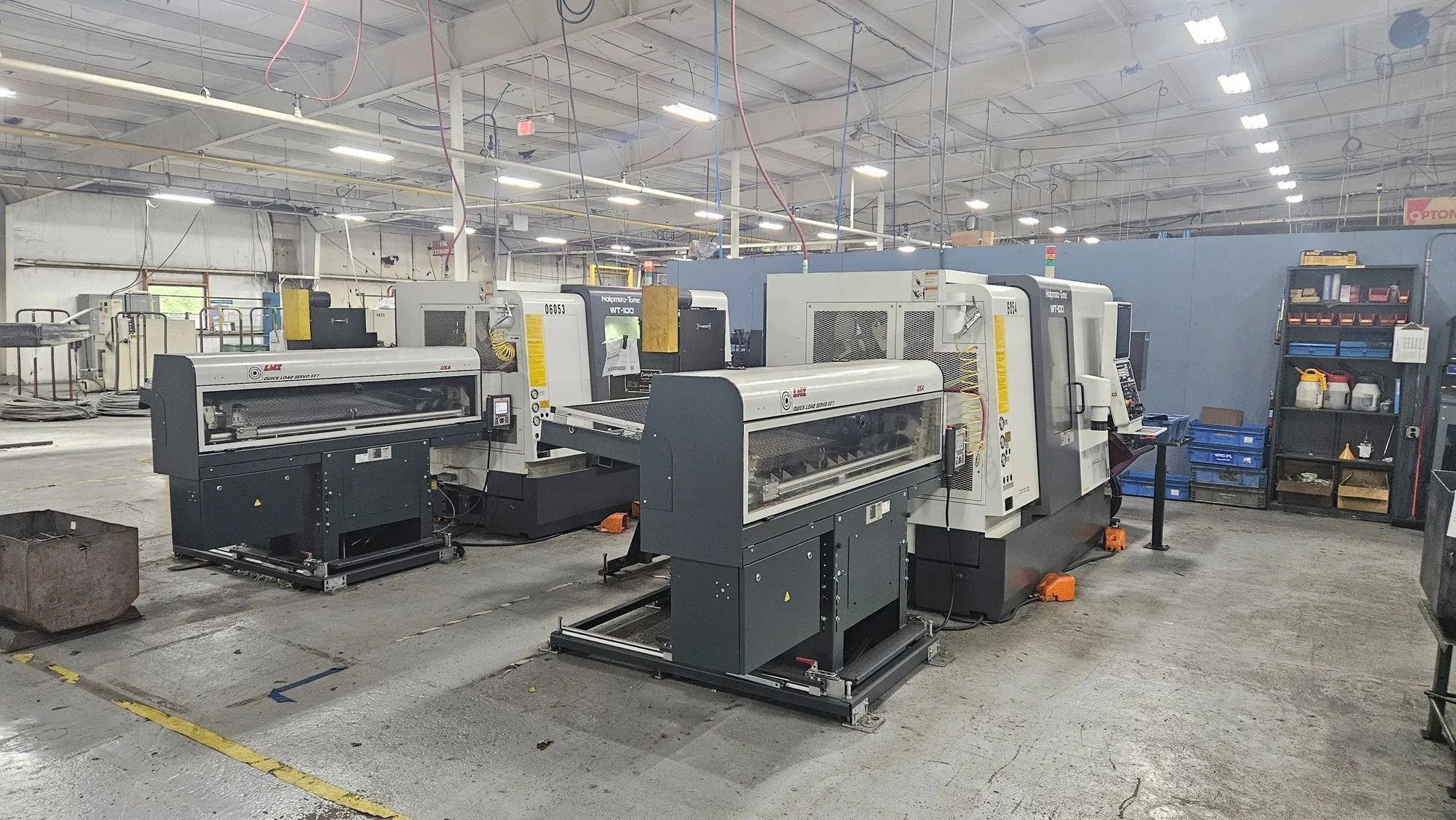

CNC Lathe Multi-Axis, used, max swing 19.8", turning dia. 7.5", dual 6" hydraulic chucks, 6,000 RPM spindles, FANUC 31i-B control, chip conveyor, LNS Quick Load, Royal FX575 mist collector, 8MB storage.
| Maximum Swing | 7.48" | 189.99 mm |
| Max Turning Diameter | 7.48" | 189.99 mm |
| Main Spindle Bore/Max Bar Capacity | 2.04"/ 1.65" | 2.04"/ 1.65" |
| Tail Stock/Sub Spindle | SUB-SPINDLE | SUB-SPINDLE |
| Distance Between Centers | 28.94" | 735.08 mm |
| Maximum Cutting Length | 19.8" | 502.92 mm |
| X-Axis Travel (X1, X2, X3) | 5.31"/ 5.31" | 5.31"/ 5.31" |
| Z-Axis Travel (Z1, Z2, Z3) | 19.8 | 19.8 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 1.22" | +/- 1.22" |
| Main Spindle Chuck Size | 6" | 152.4 mm |
| Main Spindle Chuck Type | Hydraulic | Hydraulic |
| Main Spindle Maximum Bar Work | 1.65" | 41.91 mm |
| Main Spindle Speed | 6,000 RPM | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 10/ 15 | 10/ 15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.65" | 1.65" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10/15 | 10/15 |
| Number of Turrets | 2 | 2 |
| Turret Tool Positions 1, 2 | 24 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 | 5000 |
| B-Axis Travel | 20.6 | 20.6 |
| Bar Feed | Yes | Yes |
| Chip Conveyor | Yes | Yes |
| Multi Tap Transformer | Yes | Yes |
| Control | CNC (FANUC 31i-B SmartX) | CNC (FANUC 31i-B SmartX) |
| Dimensions | 103.5" x 63.9" x 76.4 | 103.5" x 63.9" x 76.4 |
| Weight | 12,540 LBS | 12,540 LBS |
MAX TURNING DIAMETER 7.48"
MAX TURNING LENGTH 15.7"
SLIDE TRAVEL: X1/X2 6.2"/6.5"
SLIDE TRAVEL: Z1/Z2 18.3"
SLIDE TRAVEL Y+/- 1.3"
SLIDE TRAVEL B-AXIS 21.65"
SPINDLE SPEED 5,000 RPM
HOLE THROUGH DRAW TUBE 2"
C-AXIS INCREMENT .001 DEGREE
NUMBER DRIVER TOOL STATIONS. 2 X 12
DRIVE MOTOR LEFT SPINDLE 20/14 HP
DRIVE MOTOR RIGHT SPINDLE 14/10 HP
Opposed two-spindle, 2-turret construction
12 Station Turret with Half-Index Capability (48 total)
24 Milling tool stations
62mm Y-axis on Upper Turrets (+/ 31mm)
6000rpm Milling speed (Upper / Lower)
15 HP + 15 HP L/R spindle motor
9.7 HP C-Axis Milling Capable
FANUC 31i-B SmartX CONTROL
LNS TURBO CHIP CONVEYOR RH DISCHARGE
LNS QUICK LOAD SERVO S3
CAN FEED SLUGS AS SHORT AS 10" W/OPTIONS FOR SHORTER PARTS
TRIPLE ALARM LIGHT
2 - KITAGAWA B206 6" CHUCK - 3-JAW
ROYAL FX575 MIST COLLECTOR - MACHINE MOUNTED
(02) MILL HEADS (I WILL VERIFY ON MONDAY)
BLAZE AIR UNLOADING SYSTEM
EXPANDED PROGRAM STORAGE - 8MB
19 tool holders of various types for round and square spank
2 live heads
.
