2013 Complete 1000mm Wide Colines Stretch Film Line

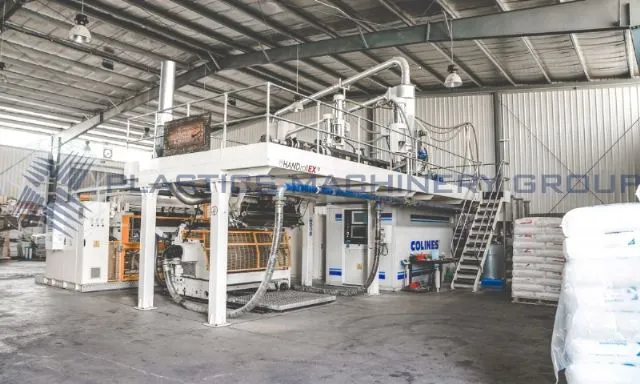

3- Layer Stretch Film Line, 1000mm wide
PROCESSING

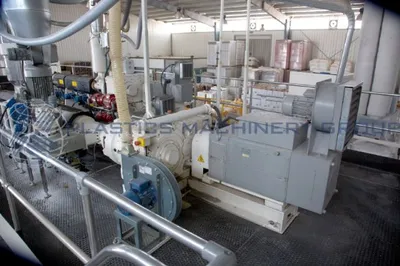

Primary Extruder* 120mm Screw* 30:1 L/D* 200 kW Motor* AC Motor and Drive* Lever Screen Changer with Pawl

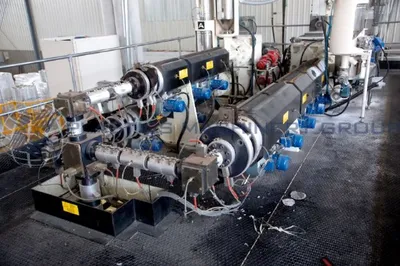

Secondary Extruders* 60mm Screw* 30:1 L/D* 50 kW Motors* AC Motors and Drives* Lever Screen Changers
Includes pressure and temperature tranducers complete with digital displays and alarm
Includes framework for supporting extruders
Includes conveyor units for extruders complete with heaters
FORMING
Flat Extrusion Die 1550mm ide, predisposed for automatic adjustment complete with bearing cart.
Vacuum box complete with piping and fan.
Edge fasteners with two independent terminals.
COOLING

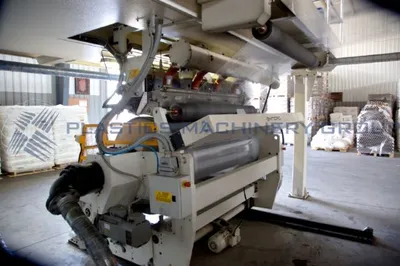

Chill-roll unit with a cylinder diameter of 960mm with AC motor drives, rotating joints and rubber coated cleaner cylinder.
WINDING
Side-up movement device.
Haul-off unit with automatic longitude trim cutting, band slitting and conveying group to separate webs.

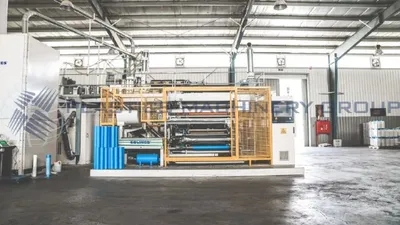

HANDspeedy – PLUS winder with automatic roll changeover, contact cylinder, transversal cutting, device for core and roll discharge.  -2" air-shafts to produce stretch film rolls for "manual" use 3" air-shafts to produce stretch film for automatic use.
Core storage rack for winder feeding
RECYCLING
Suction device for trimmed edges BIGMOUTH, with milling and transport of the milled material, complete with re-feeding system placed in the 120mm Extruder.
MANAGING General electric control equipment in air-conditioned container.
Supervision system of line with HMI (Human Machine Interface) that includes:a)  Supervisor (full management of recipes, production data and diagnosticsb)  FA (Fast Adjust) user-friendly managment for operatorsc)  LC Live Check (intuitive advanced diagnostic system)
Teleservice, i.e. web service system for remote control by internet (from COLINES/ELAV) of work parameters of the line.
Centralized control desk of the line.
Accessories and electric, pneumatic, oleodynamic connections between the various machines.
MEASURING

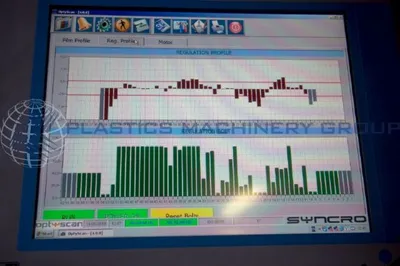

Basic equipment for film thickness measuring complete with support structure for the assembling in line, video unit, codifying unit of the product, autodiagnosis unit.
Automatic chill-roll speed regulation.
System with microprocessor for the autmatic adjustment of die bolts.
TECHNICAL AND PRODUCTION DATA
Material:  LDPEType of extrusion structure:  ABCUseful film width:  2 x 500mmMin-Max film thickness:  8µm – 40µm.Nominal tolerance values on film thickness: +/- 4% from 8µm – 20µm. +/- 3% from 20µm – 40µm.Max Diameter of finished rolls with 2" Mandrells:  80-150mmMax Diameter of finished rolls with 3" Mandrells:  230mmInternal diameter of cardboard cores:  2" / 3"Daimeter of cast cylinder: 960mmMax mechanical speed of line:  700 m/minuteReel change cycle of winder:  14 secondsLine voltage:  400 Volt 3 PhaseFrequency:  50HzElectric cabinet lighting voltage:  220v, 50Hz, single phaseElectric power installed:  620 kWAmbient humidity during production:  Max 70%Ambient temperature during production:  Max 30C
