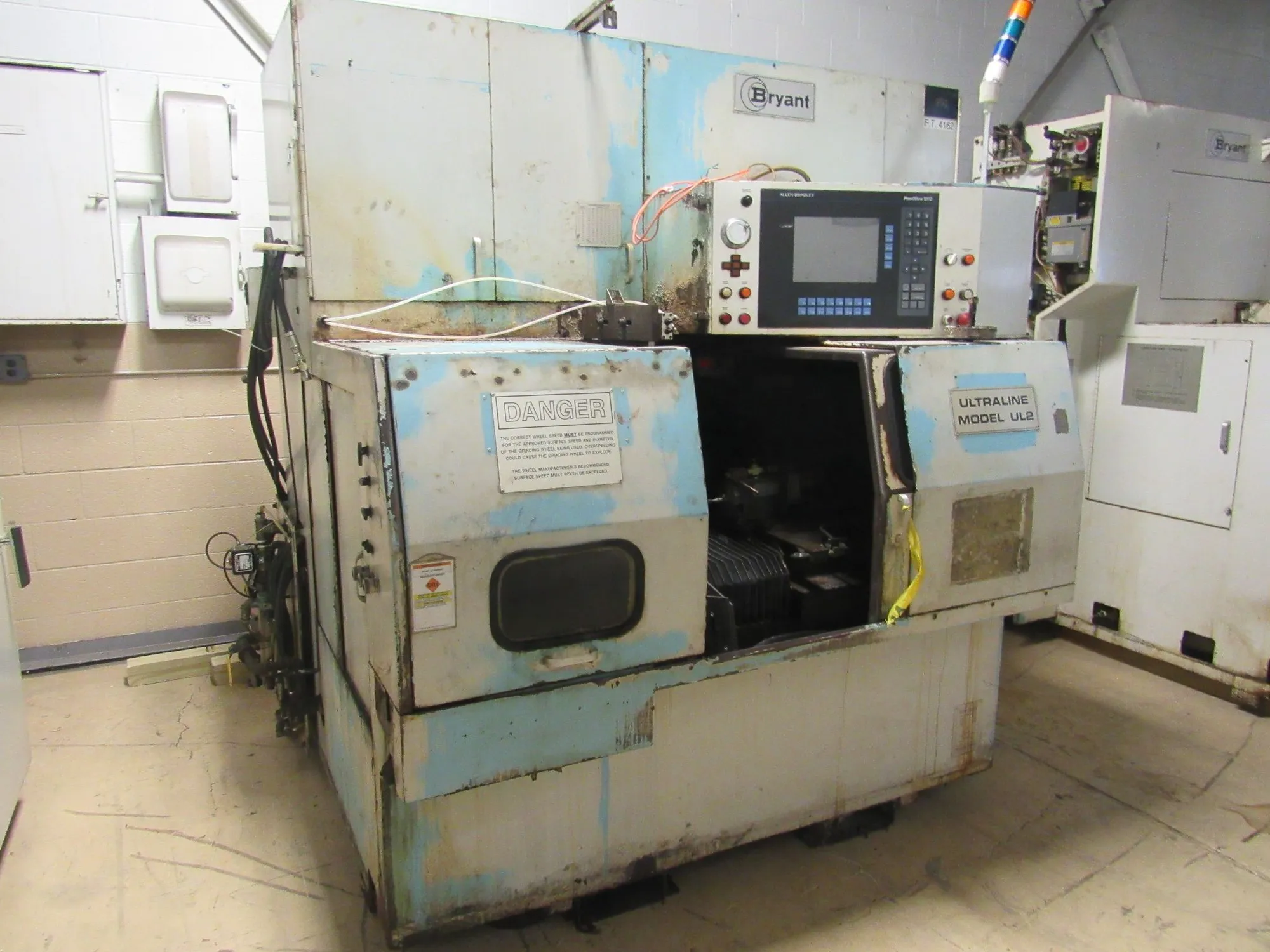

USED BRYANT UL2

BRYANT UL2 INTERNAL GRINDER

S/N W-17726

STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS

EQUIPPED WITH
15mm Roll shoe.
PMAC – Motion card.
Allen Bradley PLC 5 & I/O.
Kollmorgan drive & motors.
Volkman spindle drive.
HD104 rotary cup dresser.
CBN capable wheel.

Specifications are deemed accurate, however, subject to verification or prior sale.
