Bryant UL2 internal grinder, used condition. Swing: 7", Max Bore: 5.5", Stroke: 3", Long Travel: 10", Workhead Swivel: -26°, Power: 1.5 HP, Speed: 1850 RPM. Equipped with dresser, offering reliable performance.
| Swing | 7" | 177.8 mm |
| Max Grinding Bore | 5.5" | 139.7 mm |
| Stroke | 3" | 76.2 mm |
| Travel-Long | 10" | 254 mm |
| Workhead Swivel | -26 | -26 |
| Workhead Power | 1.5 hp | 1.1 kW |
| Workhead Speed | 1,850 RPM | 1,850 RPM |
| Dresser | Yes | Yes |
| Control | CNC | CNC |
| Weight | 10500 | 10500 |

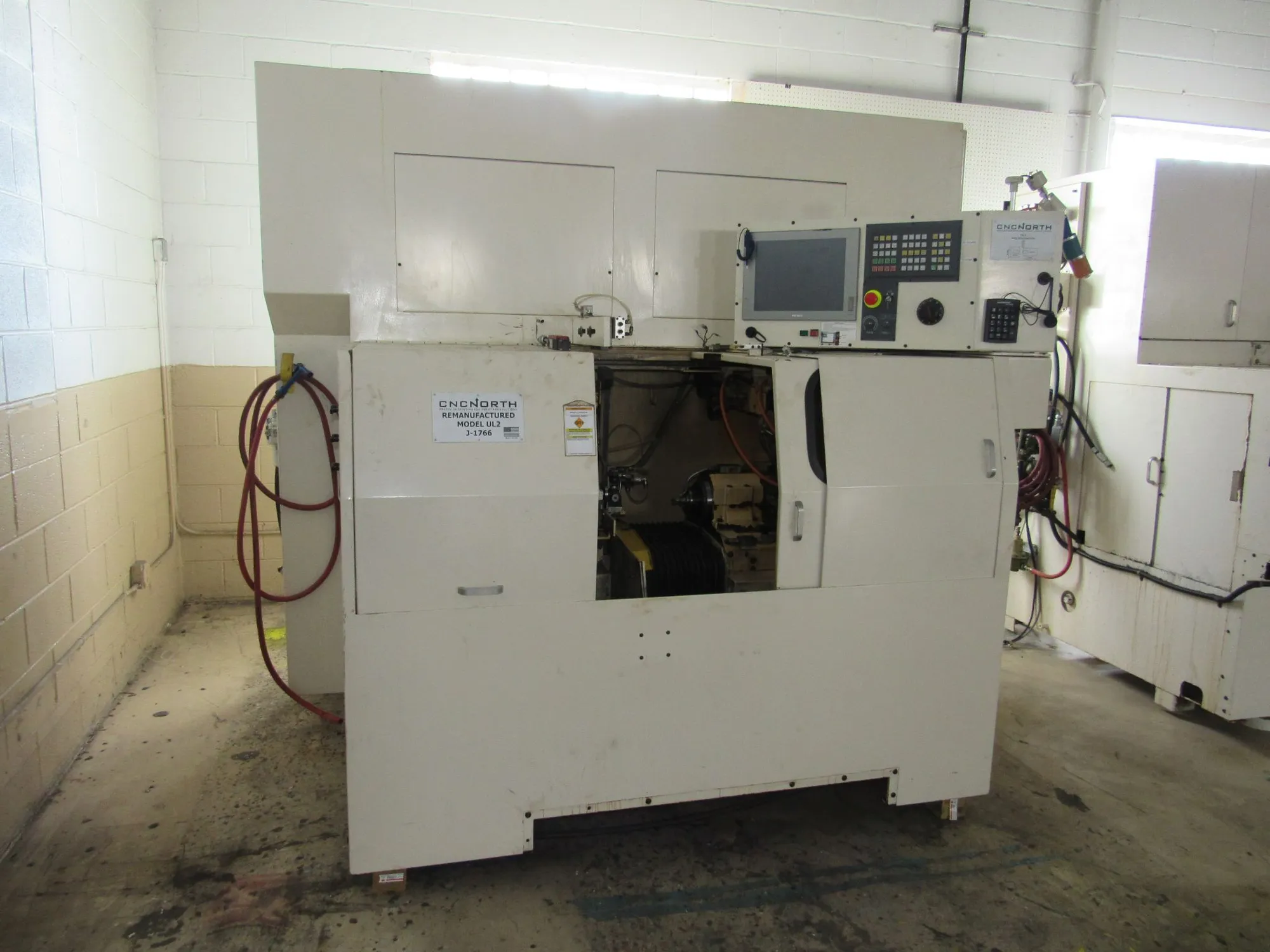

BRYANT UL2 INTERNAL GRINDER
S/N J-1766
STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS
EQUIPPED WITH
15mm Roll shoe.
Fanuc 30i CNC controls.
Proface CNC HMI..
Spindel spindle drive.
HD104 rotary cup dresser.
CBN capable wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
