BRYANT UL2 used internal grinder available with a 7" swing and max grinding bore of 5.5". Features include 10" travel-long, -26 workhead swivel, 1.5 HP workhead power, 1850 RPM speed, and integrated dresser.
| Swing | 7" | 177.8 mm |
| Max Grinding Bore | 5.5" | 139.7 mm |
| Travel-Long | 10" | 254 mm |
| Workhead Swivel | -26 | -26 |
| Workhead Power | 1.5 hp | 1.1 kW |
| Workhead Speed | 1,850 RPM | 1,850 RPM |
| Dresser | Yes | Yes |
| Control | CNC | CNC |
| Weight | 10500 LBS | 10500 LBS |

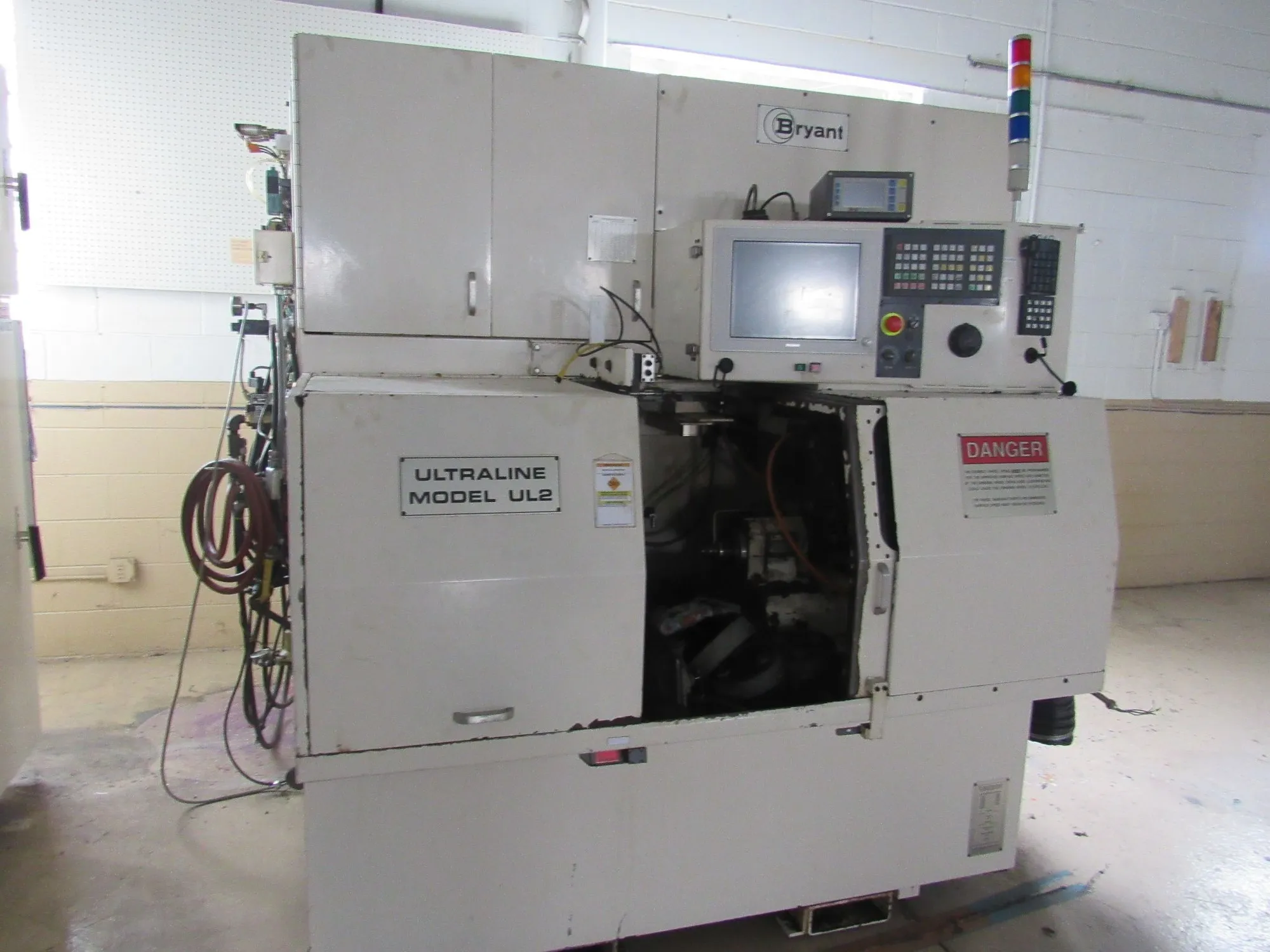

BRYANT UL2 INTERNAL GRINDER
S/N J-15483-1
STANDARD SPECIFICATIONS
Minimum Bore.............................0.4”
Max Swing(Chucker).......................7”
Max Bore(Shoe Centerless)................5.5”
Max Bore Length..........................3”
Max Z-Axis Travel........................10”
Max X-Axis Travel........................2”
X-Axis Resolution........................0.000004”
Z-Axis Resolution........................0.000016”
Max X-Axis Feedrate......................1,800 ipm
Max Z-Axis Feedrate......................520 ipm
Workhead Angular Adjustment..............-26 Degrees
Max Work Speed(Shoe Centerless...........1,850 RPM
Max Spindle Speed........................120,000 RPM
Work Drive Motor(Shoe Centerless)........1.5 HP
Weight...................................10,500 LBS
EQUIPPED WITH
15mm Roll shoe.
Fanuc 30i CNC controls.
Proface CNC HMI..
Spindel spindle drive.
HD104 rotary cup dresser.
CBN capable wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
