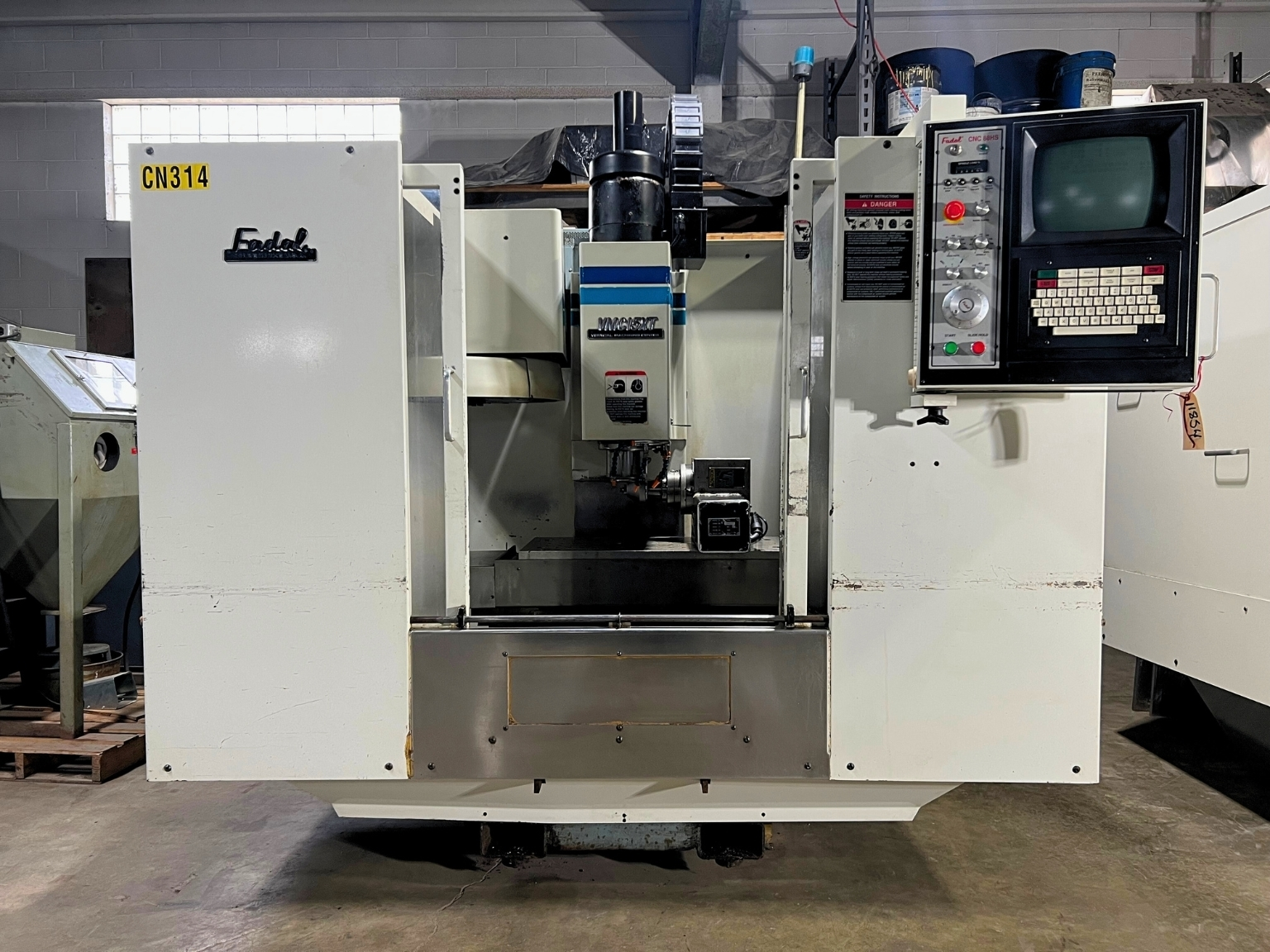

FADAL Model VMC15XT Vertical Machining Center, 1997, used. Features: 20"x16"x20" travels, 7.5 hp, CAT 40 taper, 29.5"x16" table, 21 ATC, 15 HP spindle, up to 7500 RPM. CNC-88 control, RS-232 port, rigid tapping, and enclosed splash guarding included.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 21 | 21 |
| Table-W | 16" | 406.4 mm |
| Table-L | 29.5" | 749.3 mm |
| Control | CNC (CNC-HS88) | CNC (CNC-HS88) |
| Dimensions | 90" x 77" x 104" | 90" x 77" x 104" |
| Weight | 5800 | 5800 |
Specifications:
Table Size.......................... 29.5" x 16"
Max. Table Load..................... 1000 Lbs
Spindle Nose to Table Top........... 4" - 24"
X-Axis Travel....................... 20"
Y-Axis Travel....................... 16"
Z-Axis Travel....................... 24"
Rapid Traverse Rate X & Y Axes...... 400 IPM
Cutting Feed Rate................... 0.1 - 200 IPM
Spindle Taper....................... CAT 40
Spindle Speeds...................... 0 - 7500 RPM
Spindle Motor....................... 15 HP
Tool Changer Capacity............... 21 Station ATC
Max. Tool Weight.................... 15 Lbs
Approx. Machine Weight.............. 5800 Lbs
Approx. Machine Dimensions.......... 90" x 77" x 104"
Equipped With:
Fadal CNC-88 CNC Control with 9" CRT
RS-232 C Port Interface for DNC Operation (USB)
Rigid Tapping (Synchronous Tapping / Solid Tapping)
Standard Coolant System with Tank
Fully Enclosed Splash Guarding
Expanded Memory 422K
High Speed CPU
3-Jaw chuck 4th axis RT Angle interphase
