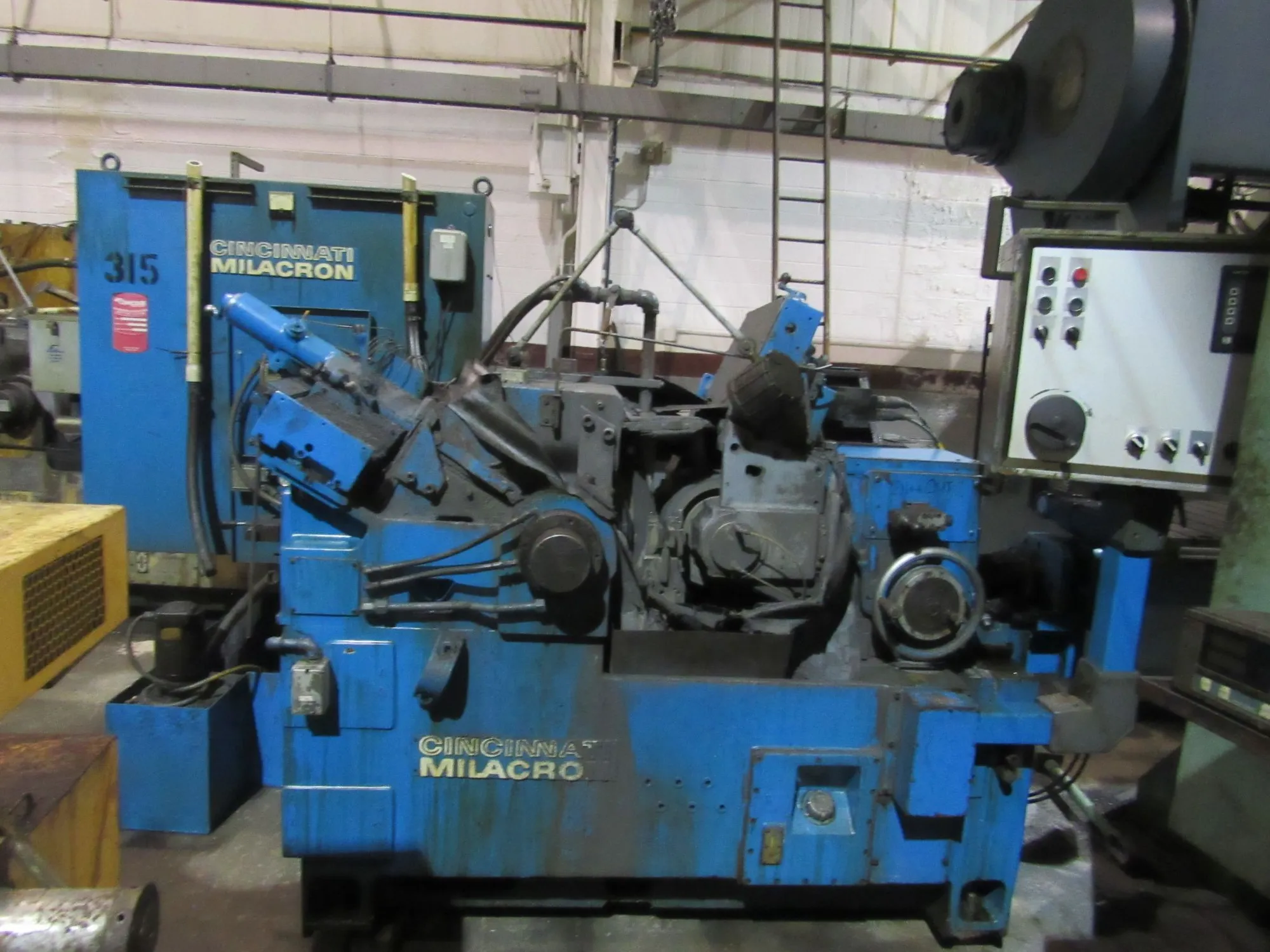

USED 1977 CINCINNATI #230-10

CINCINNATI #230-10 Centerless Grinder from 1977, used condition. Specs: Capacity 4", Grinding Wheel Dia 24", GW Power 30 HP, Regulating Wheel Dia 12", RW Power 1.5 HP, RW RPM 310. Ideal for precise grinding needs.

230 10 CINCINNATI TWIN GRIP GRINDER

S/N 350800077-004 Year: 1977

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed & infeed work rests......... 1/4" to 4" dia.

WHEELS
Grinding wheel............ widths up to 10", 12" hole 24" dia.
Regulating wheel.......... widths up to 10", 5" hole w/2" C.B.
in back. 1 1/2" C.B. in front 12" dia.

DRIVE
Grinding wheel drive........................... 30 HP
Regulating wheel drive motor................... 1 1/2 HP

REGULATING WHEEL SPEEDS
Number......................................... infinite
Range.......................................... 11 to 310 RPM

SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in........................ .000050"

CUTTING FLUID EQUIPMENT
Individually motor driven cutting fluid pump
capacity....................................... 50 gal/min.
Cutting fluid tank capacity.................... 150 gallons

WHEEL TRUING EQUIPMENT
Grinding wheel Hydraulic wheel profile diamond truing unit.
Regulating wheel Hydraulic profile regulating wheel truing unit.
Diamonds are not included as standard equipment.

FLOOR SPACE
Standard machine................................... 95" x 127 1/2"

APPROXIMATE WEIGHTS & DATA
Net weight......................................... 18,500 lbs.

EQUIPPED WITH
Thru-feed 10” dresser.
Hydraulic grinding wheel dresser.
Hydraulic regulating wheel dresser.
Gib/gib slides assembly.
Hydraulics in base.
Attached electrical.
Machine mount panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
