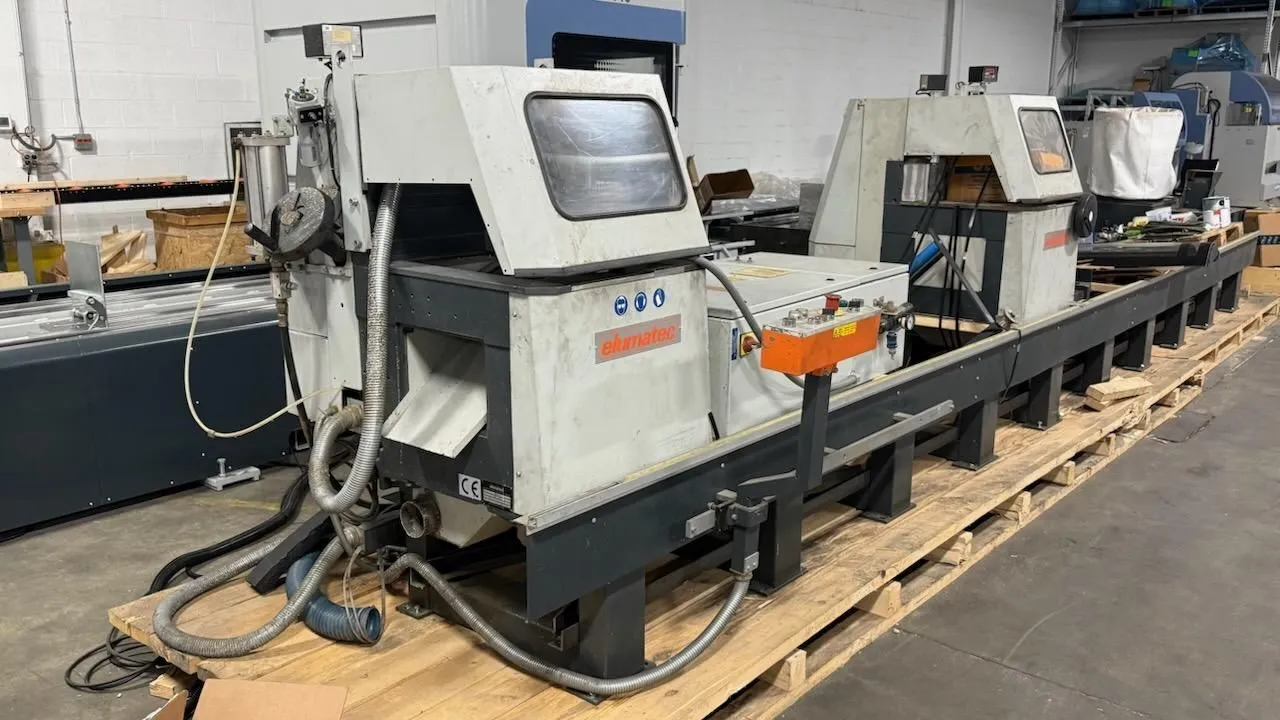

For sale: 2001 Elumatec DG 142/02 Dual Miter Saw. Features a 19-11/16" blade, 14.8 hp power, and electronic positioner. Includes manual length adjustment and PC control. Cutting bed length: 133.8". Efficient and powerful tool for precision work.
| Rect-Cap (W) | 118" | 2,997.2 mm |
| Rect-Cap (H) | 13.75" | 349.25 mm |
| Power | 14.8 hp | 11 kW |
| Saw Blade Dia. | 19.688" | 500.06 mm |
| Dimensions | 232"L x 59"W x 55"H | 232"L x 59"W x 55"H |
| Weight | 3,200 Lbs | 3,200 Lbs |
19-11/16" Double Miter Saw with Motorized Fixed Head (Fixed Setting at 20° / 45° / 90°) and E 255 Electronic Positioner.
GENERAL SPECIFICATIONS
Cutting Bed Length: 3400 mm (133.8")
Min. Cutting Length at 90°: 370 mm
Min. Cutting Length at 45°: 370 mm
Tilting Range Inwards: 90° - 45°
Saw Blade Diameter: 500 mm (19-11/16")
Saw Blade Speed: 2,800 RPM
Dimensions: 232" X 59" X 55"
Weight: 3,155 Lbs
Intermediate Angle Setting by Hand Wheel & Digital Display
Software module for Chop & Over Size Length Cuts
Material Clamping Units
Transom Stop & Lead-Cut Stop
Pulsed Coolant System
Manual Cutting Length Adjustment w/Digital Display "E-11"
Positioning Control "E-390"
PC Control "E-560"
