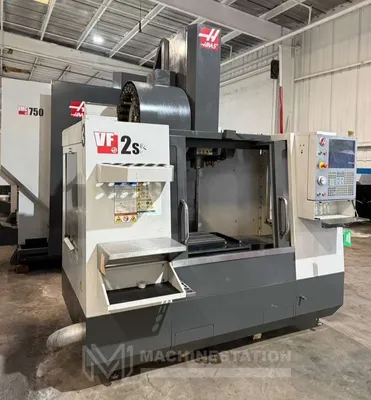

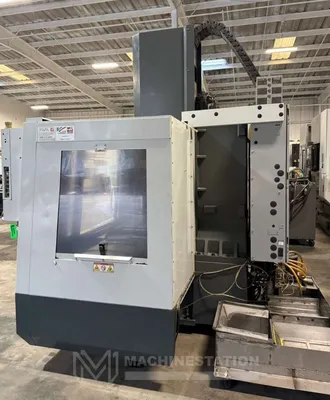

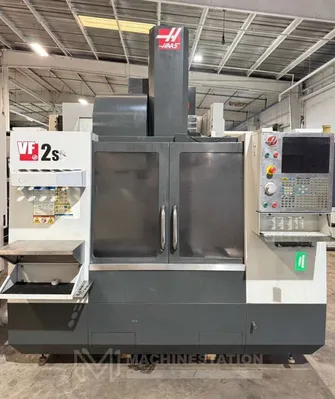

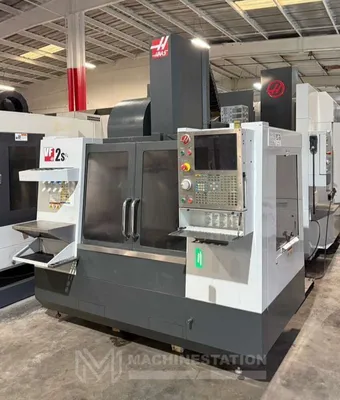

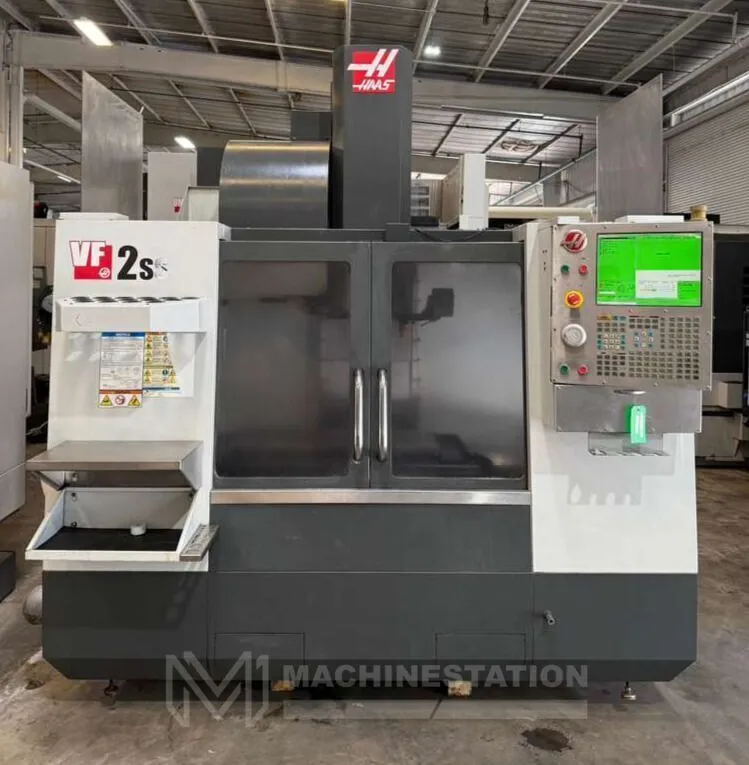

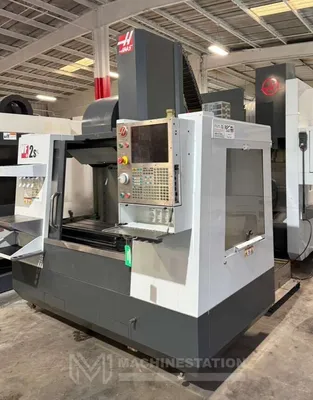

USED 2010 HAAS VF-2SS

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

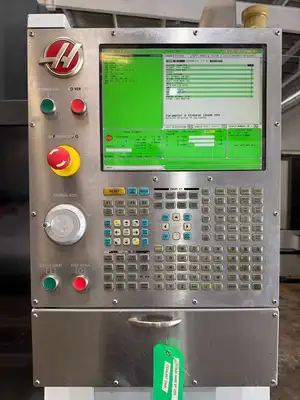

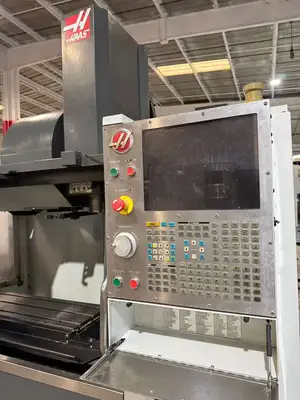

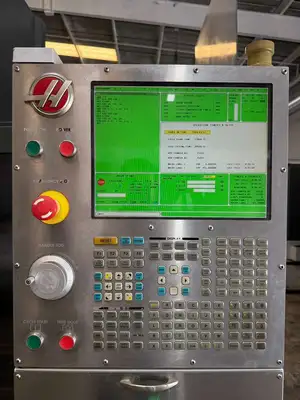

Haas CNC Control

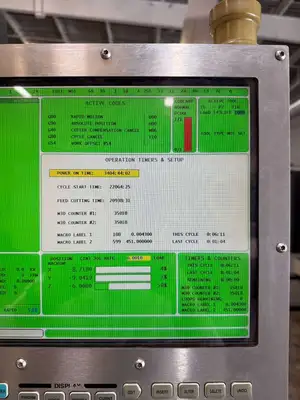

20,938 Hours Cutting Time

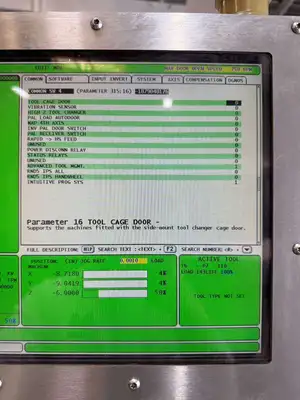

Advance Tool Management
Rotation and Scaling
Macros
Quick Code
1400 IPM Fast Rapid
Rigid Tapping
Spindle Orientation
Floppy Enabled
DNC Enabled
Extended Memory Enabled

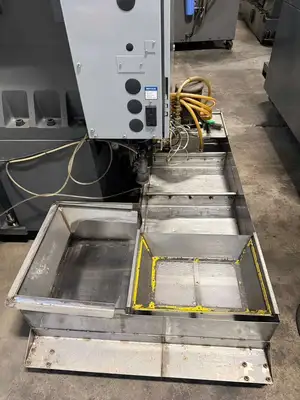

Coolant System

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 883 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 40 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

General:
Air Required: 100 psi, 4 scfm

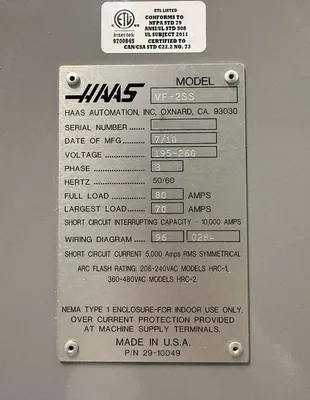

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 8380 lbs

12000 RPM High Speed Inline Direct Drive Spindle
Haas Vector 40 HP High Torque Spindle Drive
24 Station Super Speed Side Mount Automatic tool changer
High Speed Machining
Remote Jog Handle
Chip Auger
