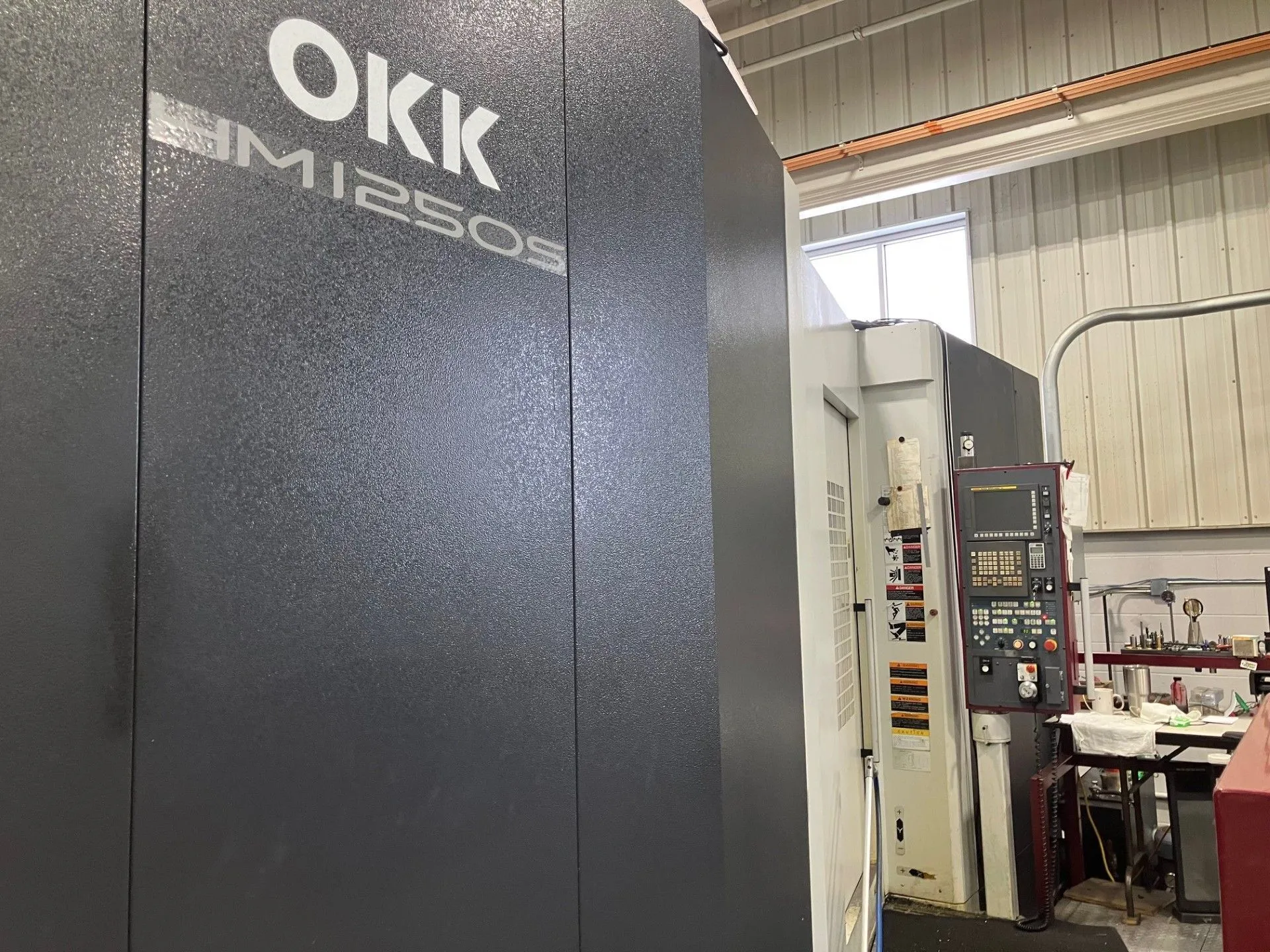

2012 OKK HM1250S HMC 66.93" X, 55" Y, and 48.82" Z travels, 50 hp, 8,000 RPM, and 60-tool ATC,#50 taper 49.21" x 49.21" pallet. Fanuc 31 iAB CNC
| X | 66.93" | 1,700 mm |
| Y | 55" | 1,397 mm |
| Z | 48.82" | 1,240 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 60 | 60 |
| Taper | #50 | #50 |
| Pallet-W | 49.21" | 1,249.9 mm |
| Pallet-L | 49.21" | 1,249.9 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31IA) | CNC (Fanuc 31IA) |
Type of CNC Control Fanuc 310is AB
# Axis 4
Pallet-W 49 inches
Pallet-L 49 inches
Pallet Capacity 6600 pounds
Pallet Indexing (B-Axis) .001
X 67 inches
Y 55.12 inches
Z 48.82 inches
X-Axis Rapid Feedrate 1890
Y-Axis Rapid Feedrate 1890
Z-Axis Rapid Feedrate 1890
Spindle Speed 8000
Spindle Taper CAT 50
Main Motor 50
Tool Changer Capacity 60
Power 50 horsepower
RPM 8000
# ATC 60
Taper 50
New 2010
Control: Fanuc 310is AB
8000 Max RPM
49" x 49" pallets (2)
Pallet load capacity #6613 Lbs.
Cat #50
60 ATC tool carousel
4th axis pallet indexing .001 degree
Blum laser tool pick-up
High pressure coolant through spindle with high pressure unit 1000 psi
Chip conveyor
Oil skimmer
Enclosure ceiling top
Pallet Size (2) 49.21" X 49.21"
Minimum Index 0.001°
Spindle Power 50 hp
Spindle Speed 8,000 rpm
Spindle Taper #50
Axis Travel X/Y/Z 66.93"/55.12"/48.82"
Max Rapid Rate X/Y/Z 1,890/1,890/1,890 ipm
Max Prog. Feedrate 787 ipm
Mist Collector Top Mount Unit
