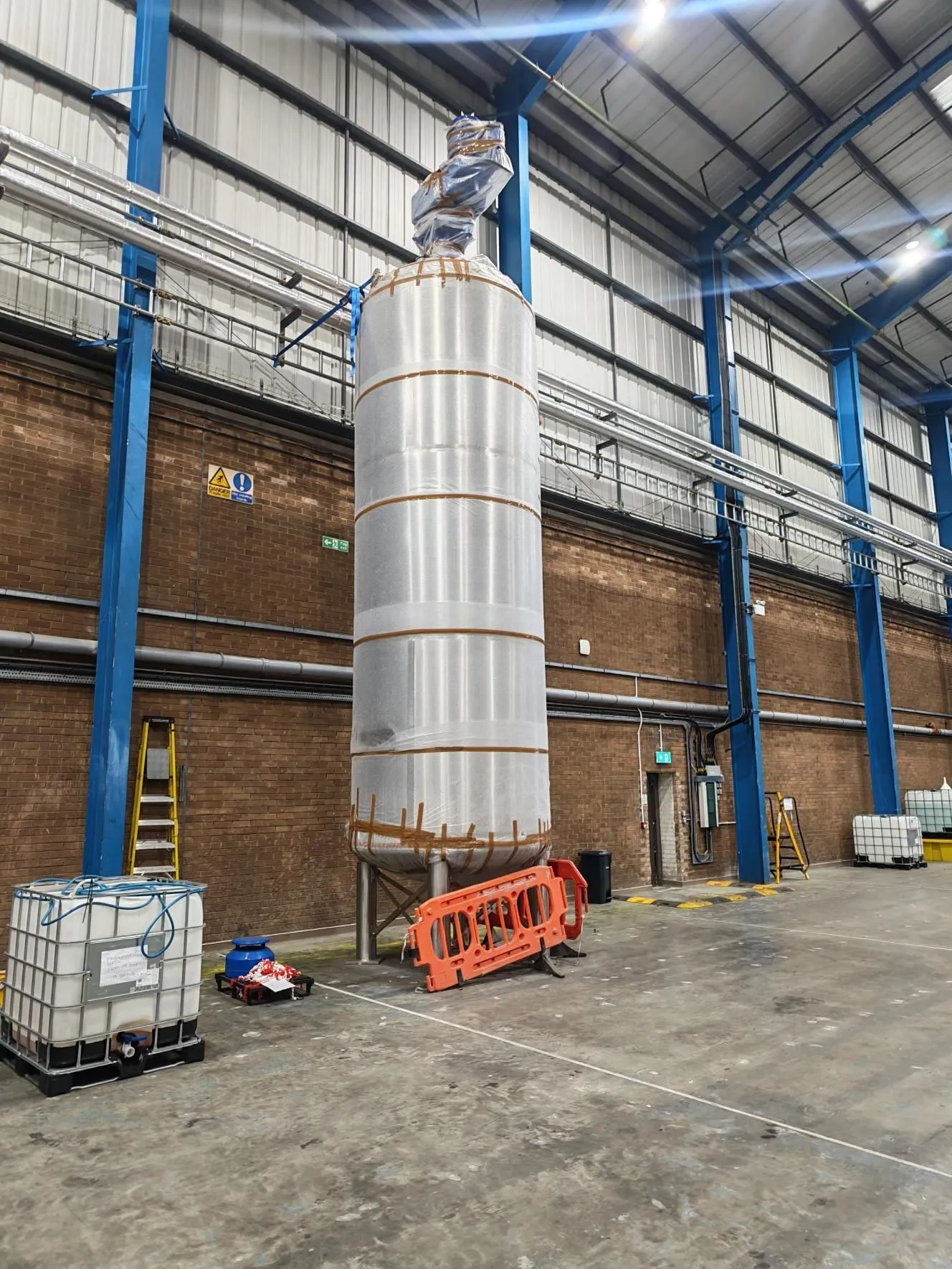

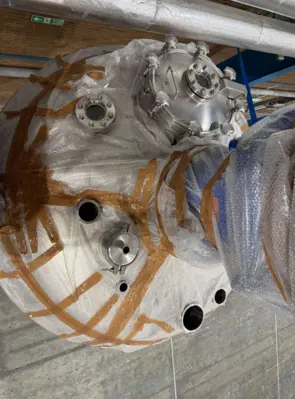

Reportedly unused Sinclair Stainless Fabrications approximately 20,000 litre nominal capacity vertical 316L stainless steel fermenter/bioreactor, approximately 15,000 litre working capacity with (4) zone limpet coil jacket. Unit has a welded dished top and bottom. Internal rated -1/+3barG internal operating at 0-159degC. Internal coils rated -1/+5barG and limpet coils rated -1/+5barG operating at 0-159degC.

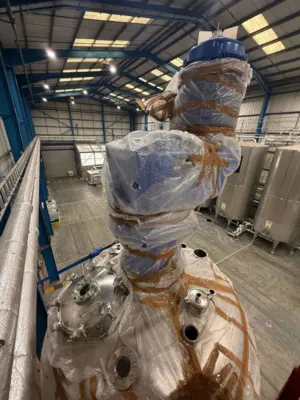

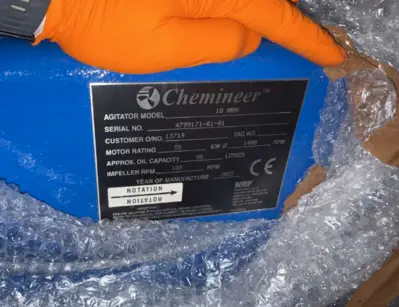

Mixer Drive = Nominal Speed: 100 RPM; Motor: 55KW 1500RPM 250 IE3 IP55 3PH
230/400V 50HZ; Gearbox Input Coupling: Integral w/Gearbox; External Paint
Finish: Standard Paint; Color: Blue RAL5005
Mounting = Arrangement: Structural Nozzle w/Flange
Shaft Seal = Mechanical Seal: Custom Seal - No Bearing Balanced (AES CDM C/SiC/C/SiC-AFLAS(3) - Double Mechanical Seal. )
Mounting Flange = Flange Size: DN400 [16”]; Flange Class: CL-150; Flange
Material: 316 Stainless Steel Face & Core
Shaft = Shaft Diameter: 4-1/2”; Shaft Extension: 6754 mm; Shaft Material: 316
Stainless Steel

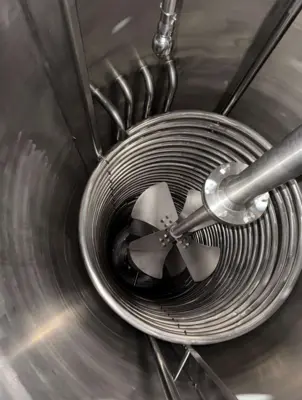

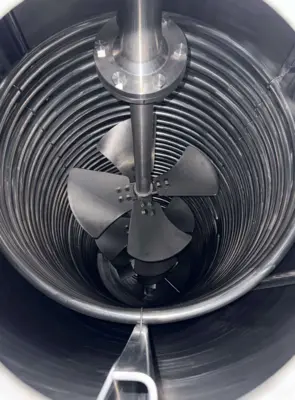

Impellers = Impeller #1: 921 mm BT-6; Impeller #2: 959 mm W-4; Impeller #3: 959
mm W-4; Impeller #4: 959 mm W-4; Impeller Material: 316 Stainless Steel
Mixer Options = Gearbox with Food Grade Lubricants
Design Compliance = Machinery Directive 2006/42/EU
| Capacity | 15,000 L | 3,962.6 gal |
| Type of stainless | 316L | 316L |
| Internal Pressure | -13 bar | -188.5 PSI |
| Internal Temperature | 0°C | 32°F |
| Jacket Pressure | -15 bar | -217.6 PSI |
| Jacket Temperature | 0°C | 32°F |
| Diameter | 1,800 mm | 70.866" |
| Straight Side | 5,900 mm | 232.28" |
| Legs/Lugs | Mounted on (4) legs | Mounted on (4) legs |
| Dimensions | 2400mm diameter x 7500mm height | 2400mm diameter x 7500mm height |
| Weight | 6720kg | 6720kg |
