6″ Davis Standard 30:1 Extruder Rebuilt Mdl. 60IN60TPIH-500 HP

6″ Davis Standard 30:1 Extruder Rebuilt Mdl. 60IN60TPIH-500 HP

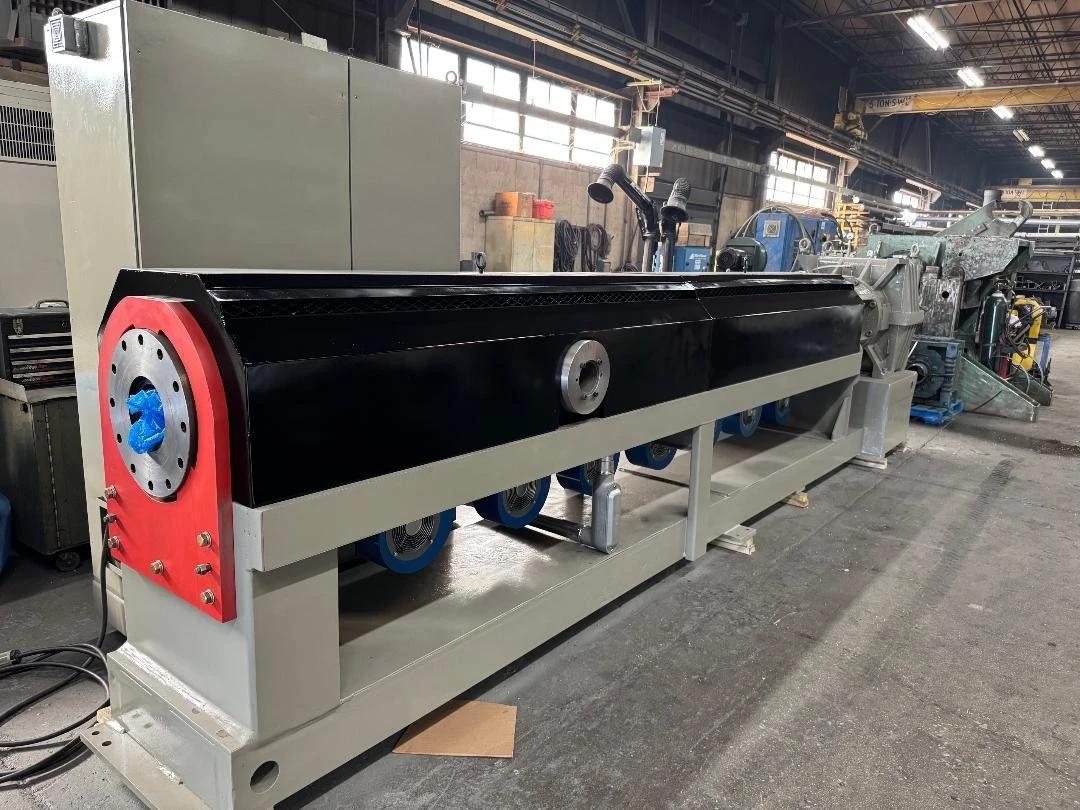

Rebuilt 6” Davis Standard Plastics Extruder Model 60IN60TPIH, MFG. 5/98, Approximate 43”

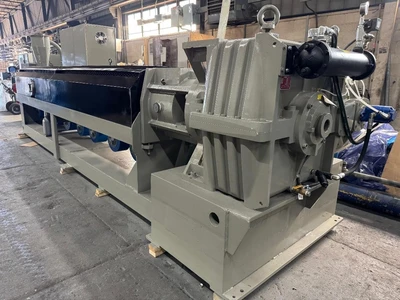

centerline height, 13.4:1 gearbox having new bearings (less thrust) with cooling unit, heat exchanger,

motor driven pump, 30:1 L/D barrel, 8 zone fan cooled vented barrel, 2-stage 6” general purpose rebuilt

PE/PP screw, *rebuilt 500HP Reliance AC motor with New 460V drive control in Nema 12 panel,

Rebuilt 12 zone control panel with new Eurotherm 3216 solid state plug in type instruments all new

wiring, panel unitized on base, with infeed hopper with clean out chute & diverter valve, wired for 460V

*Optional new TECO WESTINGHOUSE 500HP motor is available

Warranty: 6 month mechanical/electrical, 1 year for new drive

Extruder Options/Accessories:

Melt pressure gauge installed at barrel flange
