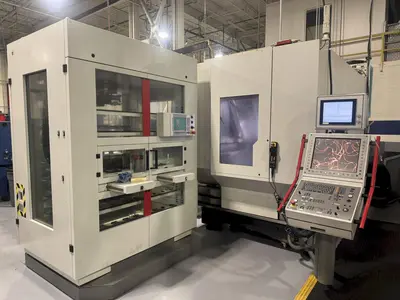

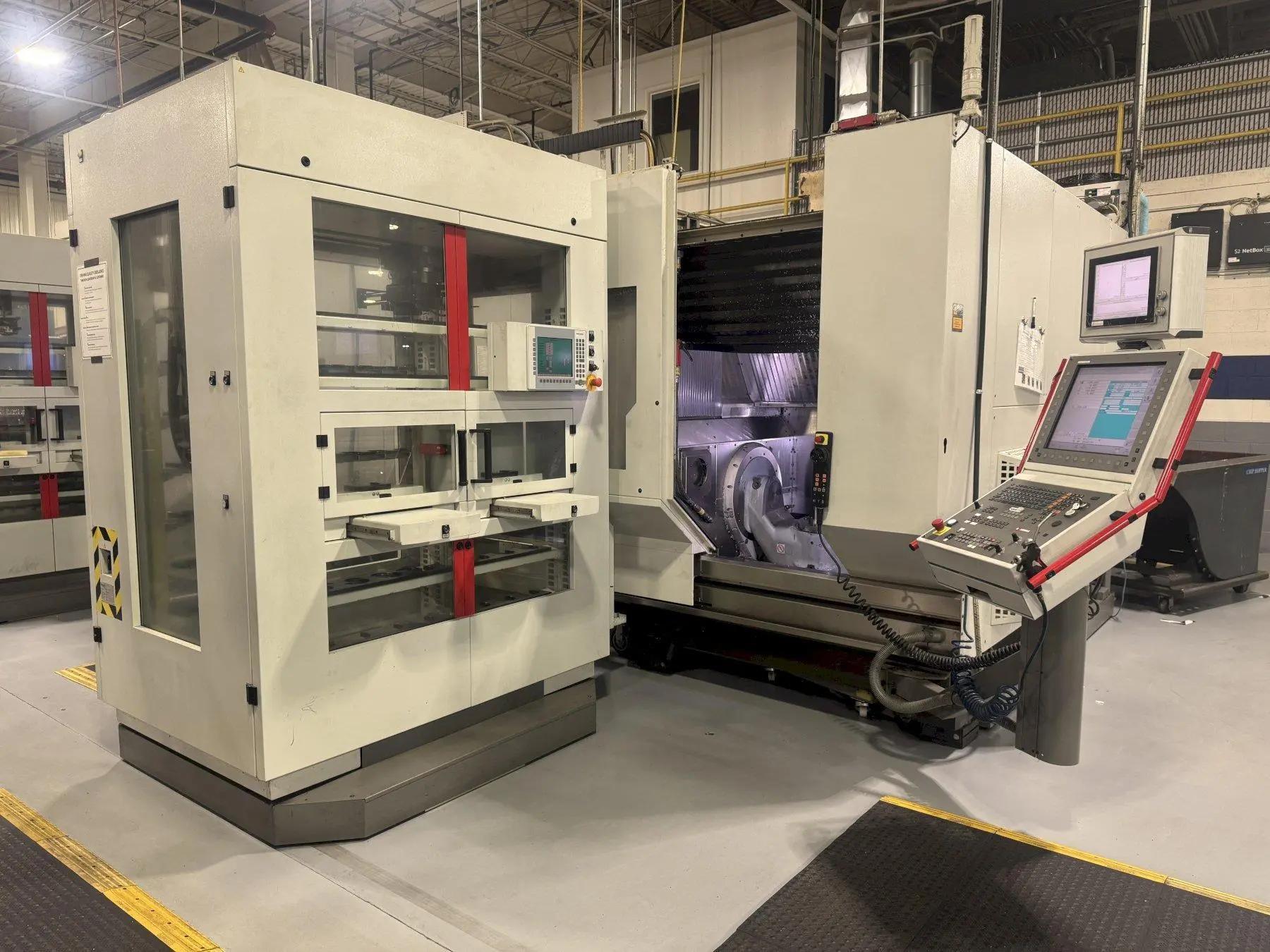

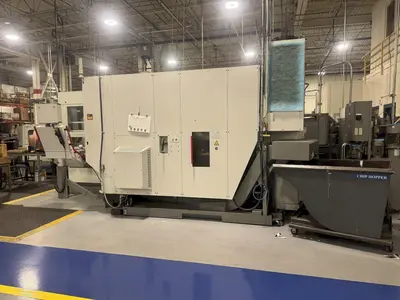

USED 2012 HERMLE C22U

- Heidenhain iTNC-530 CNC Control

- REBUILT SPINDLE IN 3/2,025

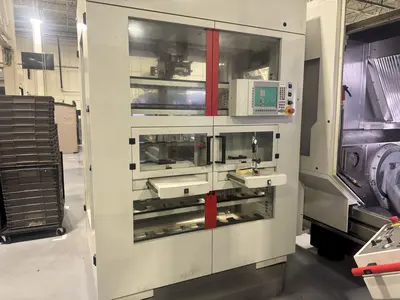

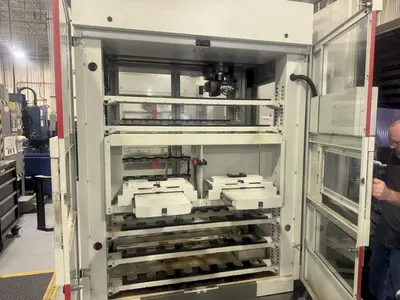

- 96 Station HSK 100 Receiver Pallet Pool

- (2) Loading/Unloading Stations

- Glass Scales on X/Y/Z Axes

- Hi-Pressure Coolant Thru Spindle

- Blum Laser

- Tool Break Off Detection

- Capable of Running with or without Loading Station
The Hermle C22U is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

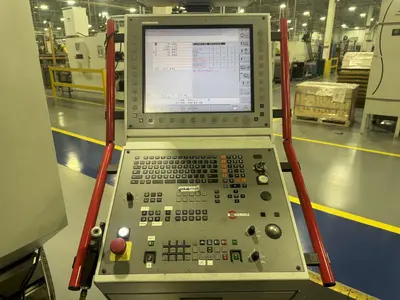

Control Type: Heidenhain iTNC 530
# Axis: 5
Table Size: 12.6" Diameter
Max Table Load: 330 pounds
X-Axis Travel: 17.7"
Y-Axis Travel: 23.6"
Z-Axis Travel: 12.99"
B Axis Rotary: +/- 135°
A Axis Rotation: 0.001°
Spindle Taper: HSK 63
Spindle Speed: 18,000 rpm
Main Motor: 35 hp
ATC Capacity: 55
Coolant Thru Spindle: yes
Machine Dimensions: 185" x 93" x 125"
Machine Weight: 20,000 pounds

- Heidenhain iTNC-530 CNC Control
- 96 Station HSK 100 Receiver Pallet Pool
- (2) Loading/Unloading Stations
- Table Receiver is HSK 100
- Chip Conveyor

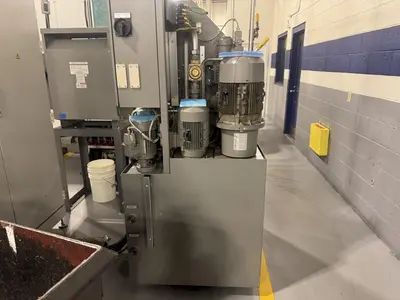

- Coolant Tank & Pump
- Glass Scales on X/Y/Z Axes
- Hi-Pressure Coolant Thru Spindle
- Blum Laser
- Tool Break Off Detection
- Capable of Running with or without Loading Station

- Kinematic Opt - Hardware

- Spindle 18,000 1/min HSK-A63

- Linear Axis Dynamic Version

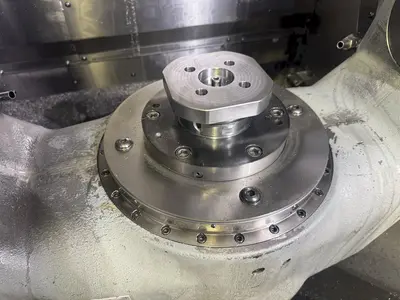

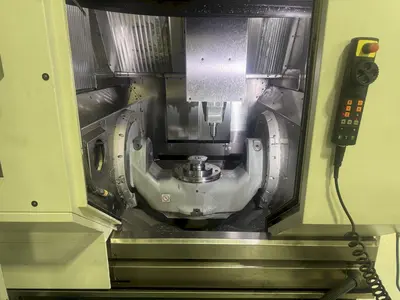

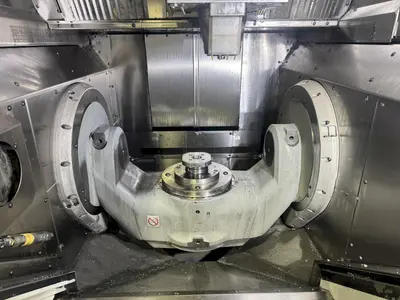

- NC swivel rotary table Ø 320

- Torque drive

- A-axis dynamics package

- Internal coolant supply 80 bar

- Blowing air through the center of the spindle

- Swarf Spray Gun

- Bed Wash

- Oil mist extraction

- Automatic Cabin Door

- Electr. iTNC Heat Compensation

- Electr. iTNC manual control module
- NEW REBUILT SPINDLE IN 3/2025
