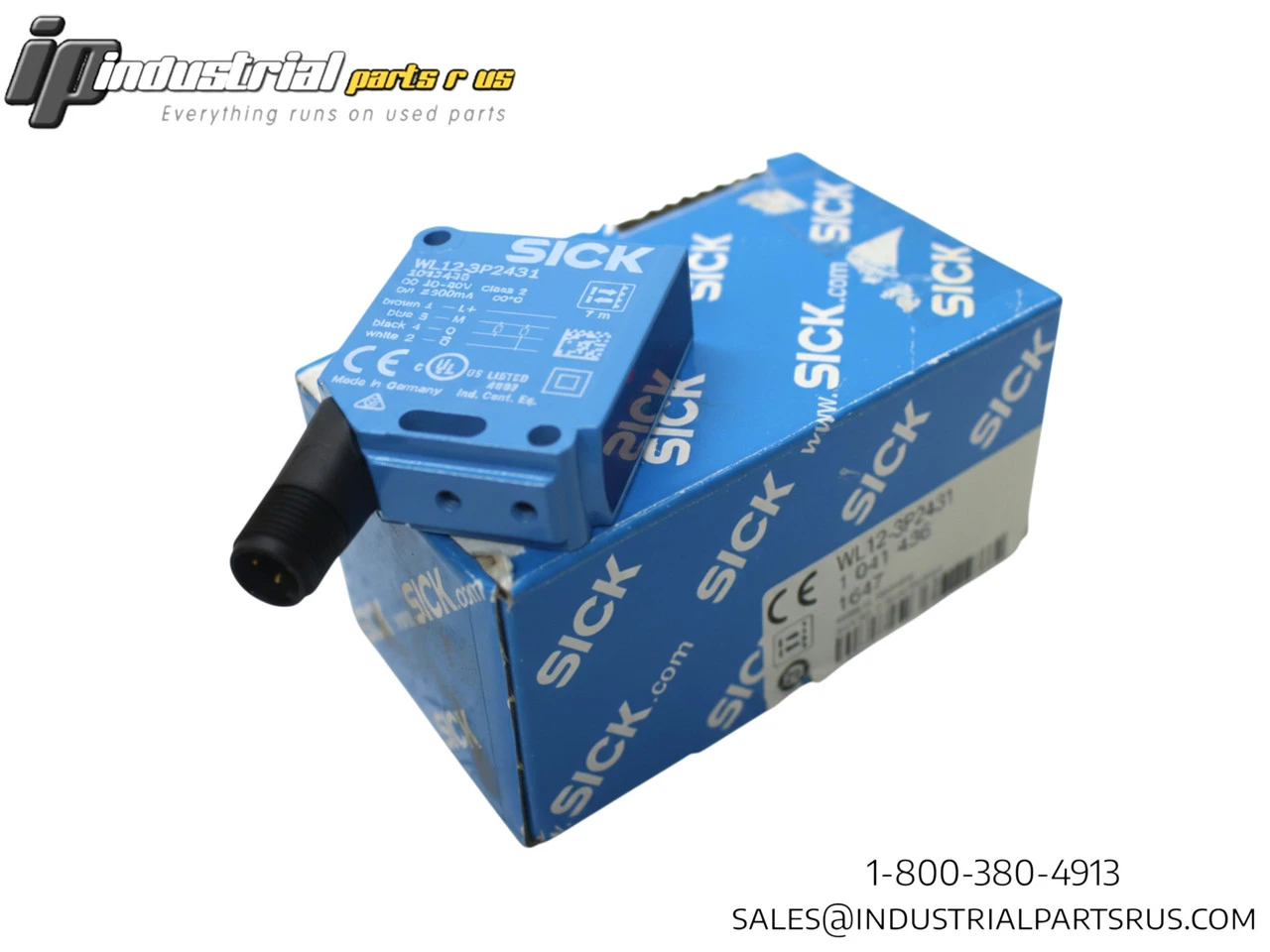

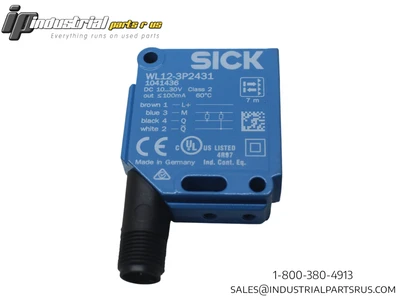

NEW SICK WL12-3P2431

The SICK WL12-3P2431 is a compact photoelectric retro-reflective sensor from the W12-3 series, featuring autocollimation technology for reliable object detection. This sensor utilizes visible red LED light at 640nm wavelength with a maximum sensing range of 7 meters and includes a polarization filter for enhanced performance in demanding industrial applications.
Specification
Value
Brand
SICK
Model/Part Number
WL12-3P2431
Series
W12-3
Sensor Type
Photoelectric Retro-Reflective
Sensing Technology
Autocollimation
Sensing Range Maximum
0-7m
Operating Distance
0-5m
Light Source
LED
Light Type
Visible Red Light
Wavelength
640nm
Light Spot Size
Ø 100mm (at 3m)
Angle of Dispersion
Approx. 1.5°
Supply Voltage
10-30 VDC
Current Consumption
30mA
Output Type
PNP
Current Type
DC
Switching Mode
Light/Dark Switching
Output Current Maximum
≤100mA
Response Time
≤330μs
Switching Frequency
1,500Hz
Output Function
Complementary
Connection Type
Male Connector M12, 4-pin
Termination Type
M12 Male Connector
Adjustment
Potentiometer, 5 turns
Housing Material
Metal
Front Screen
Plastic, PMMA
Housing Design
Rectangular
Dimensions (W x H x D)
15.6 x 48.5 x 42mm
Weight
120g
Enclosure Rating
IP66, IP67, IP69K
Operating Temperature
-40°C to +60°C
Storage Temperature
-40°C to +75°C
Protection Class
III
Polarization Filter
Yes
UL File Number
NRKH.E181493 & NRKH7.E181493
SICK Part Number
1041436
We warranty all items for 30 days from date of purchase.

SKU: AI0150
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Operating Distance: 0-5m
Full Load Amps: 30mA
Manufacturer: Sick
Enclosure Type: IP66, IP67, IP69K
Part Number: WL12-3P2431
Shelf: P-7
Model: WL12-3P2431
MPN: WL12-3P2431
Type: Photoelectric Sensor
