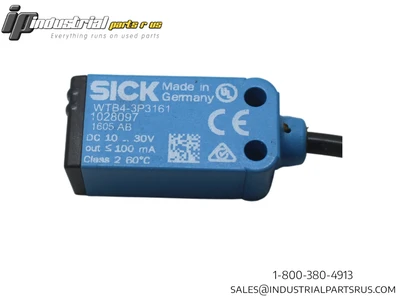

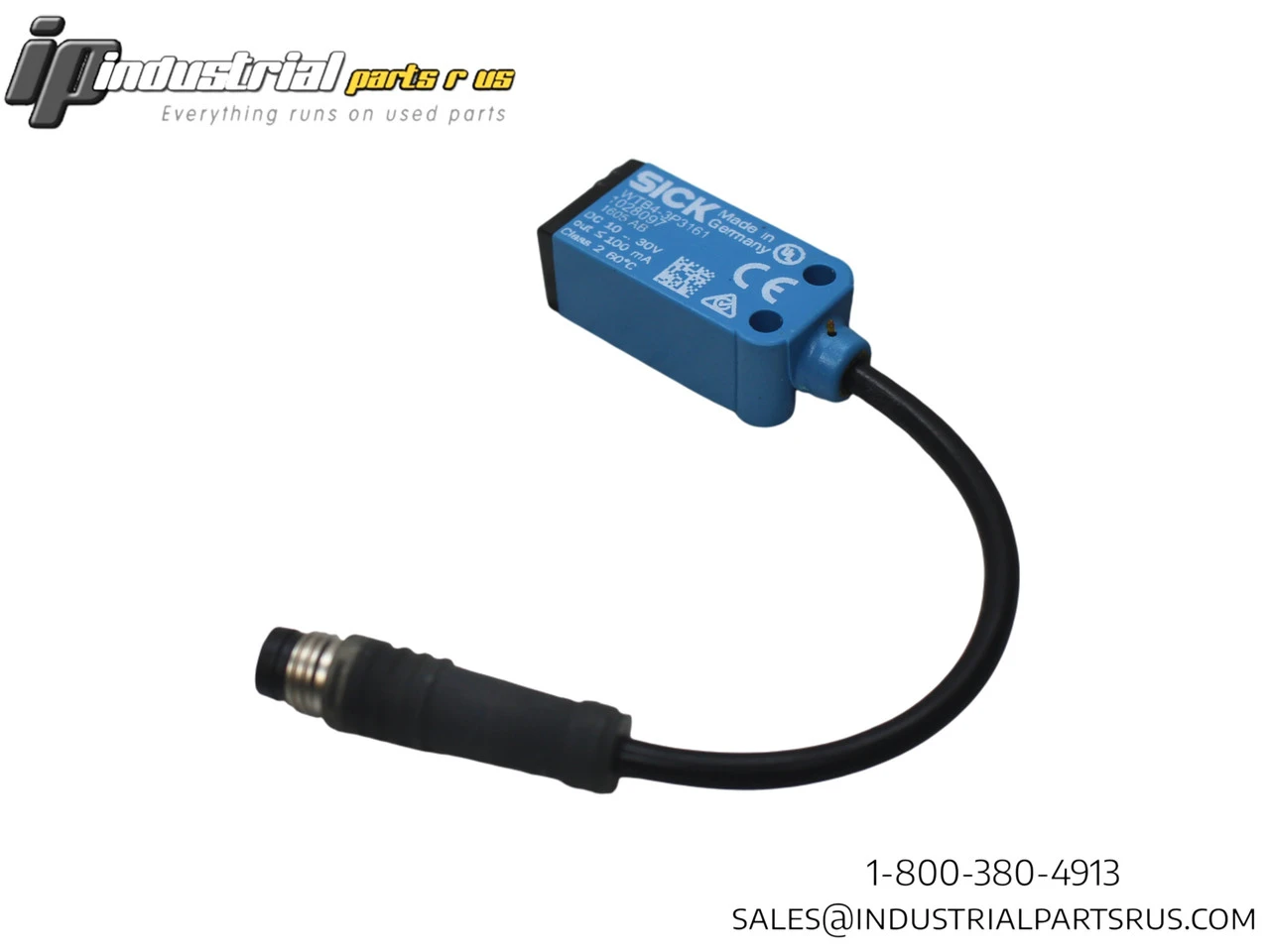

NEW SICK WTB4-3P3161

The Sick WTB4-3P3161 is a miniature photoelectric proximity sensor featuring background suppression technology for precise object detection in industrial automation applications. This sensor utilizes PinPoint LED technology with visible red light to detect objects at distances from 4mm to 150mm while suppressing false readings from background reflections.
Specification
Value
Brand
Sick
Model/Part Number
WTB4-3P3161
Series
W4-3
Sensor Type
Photoelectric
Functional Principle
Background Suppression
Sensing Range
4mm - 150mm
Optimized Range
15mm - 150mm
Light Source
PinPoint LED
Light Type
Visible Red Light
Wave Length
650 nm
Light Spot Size
Ø 7mm at 50mm distance
Supply Voltage
10-30 VDC
Current Type
DC
Current Consumption
20 mA
Output Type
PNP
Switching Mode
Light Switching
Output Current Max
≤ 100 mA
Response Time
< 0.5 ms
Switching Frequency
1,000 Hz
Protection Class
III
Housing
Rectangular, Flat Design
Dimensions
16mm x 39.5mm x 12mm (W x H x D)
Connection Type
Cable with M8 Connector, 3-pin
Termination Type
M8 Connector
Cable Length
100mm
Adjustment
5-turn Potentiometer, Teach-in Button
Part Number
1028097
We warranty all items for 30 days from date of purchase.

SKU: AI0153
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Country/Region of Manufacture: Germany
Operating Distance: 15mm - 150mm
Sensing Range: 4mm - 150mm
Switching Frequency: 1,000 Hz
Full Load Amps: 20 mA
Current: 20 mA
Manufacturer: Sick
Part Number: WTB4-3P3161
Series: W4-3
Shelf: P-7
Model: WTB4-3P3161
MPN: WTB4-3P3161
Voltage: 10-30 Vdc
Type: Photoelectric Sensor
