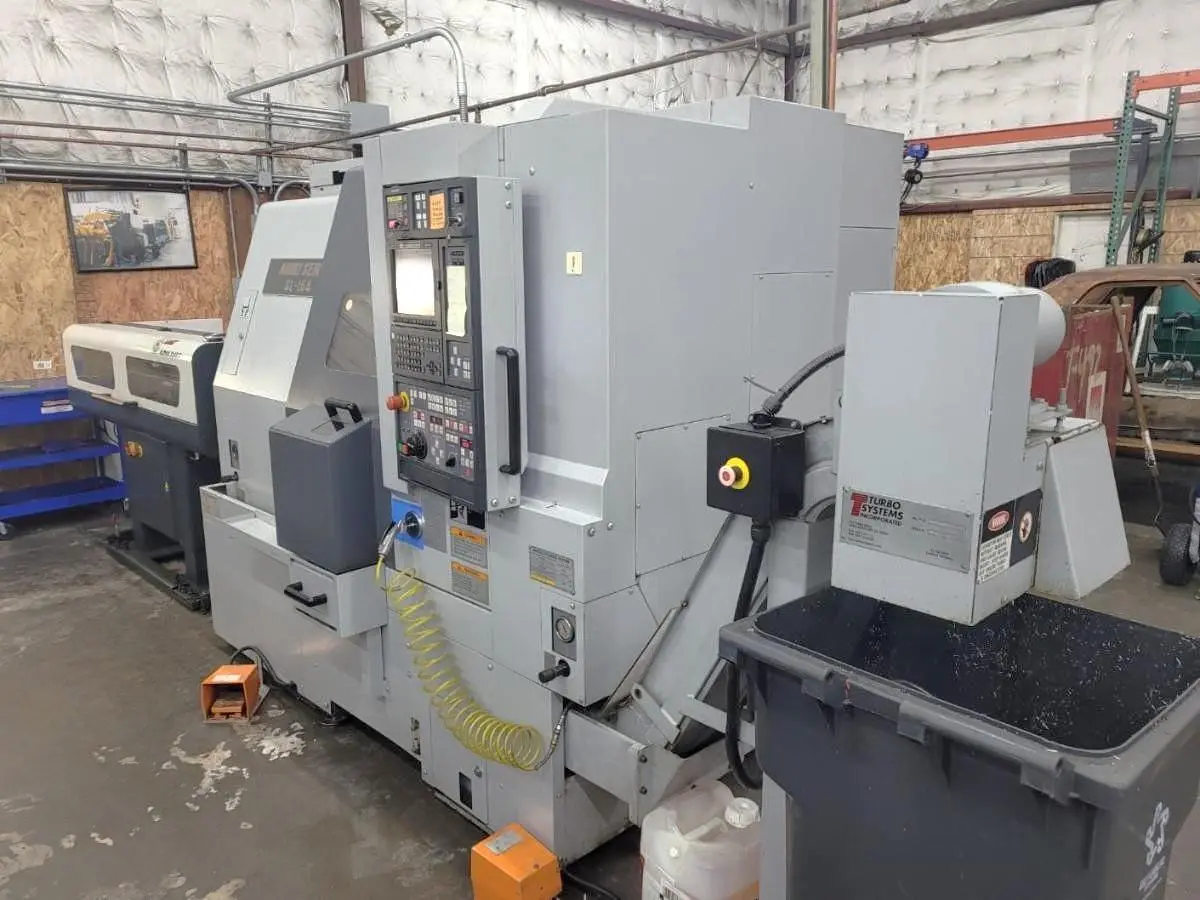

USED 2003 MORI SEIKI SL-154SY

Live Milling/Drilling Capability
Full "C" Axis Spindle Rotation on Main/Subspindle
Subspindle
Y Axis Capability

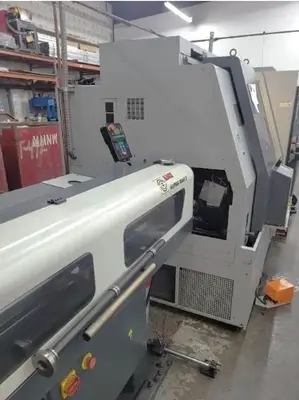

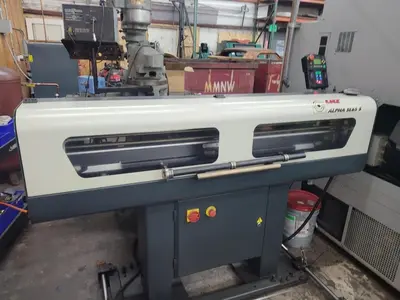

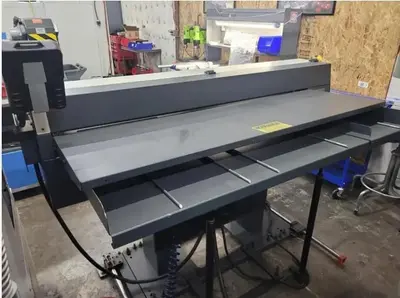

LNS Alpha SL65 S Short Load Type Barfeed System
Parts Catcher

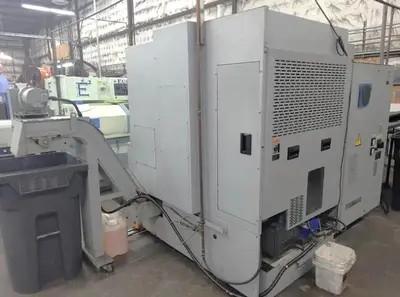

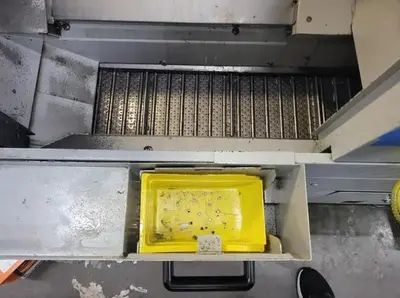

Chip Conveyor

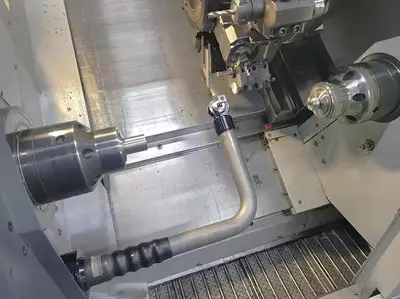

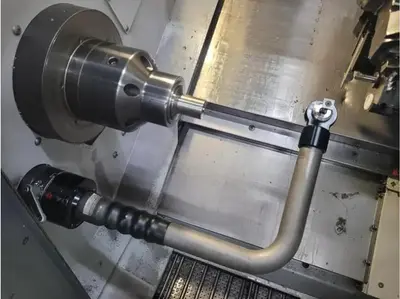

ATS 3J TLS Model Collet Chuck on Main Spindle
Tool Presetter
RS 232 Port for DNC Interface
Slant Bed Design
Boxed Ways

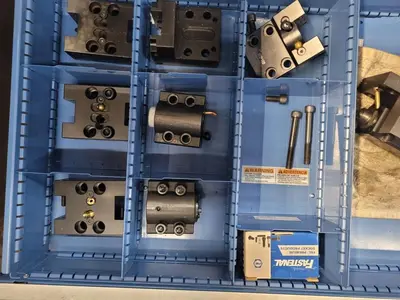

All Available Static Tooling (Approx. 14 Holders)

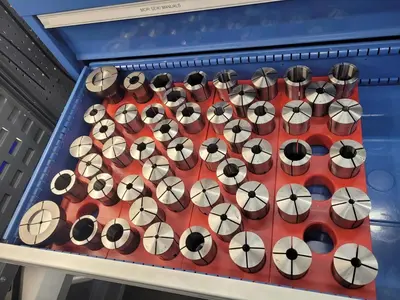

Miscellaneous Collets

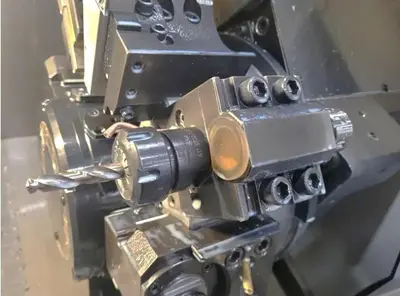

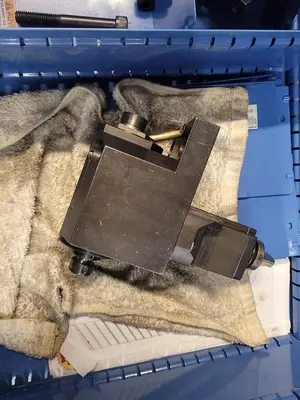

(4) Live Tool Holders
All Available Manuals
Wired 220V Electrics

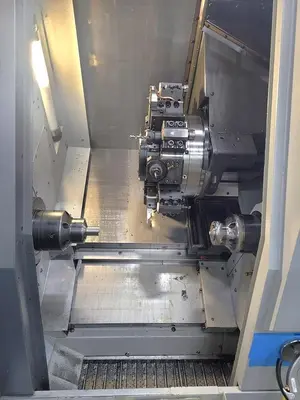

The 2003 Mori Seiki SL-154SY CNC lathe offers advanced features for precision machining, well-suited for complex tasks. Equipped with a Mori Fanuc MSC-805 control with Mapps Conversational interface, it enables easy operation and flexibility. The main and subspindle both utilize collet chucks, with the main spindle capable of speeds up to 6,000 RPM and the subspindle reaching 5,000 RPM, each powered by a 10 HP motor. The machine supports a maximum bar capacity of 1.77 inches, with a maximum turning diameter of 11.81 inches and a turning length of 13.78 inches.

The SL-154SY includes milling and a Y-axis with 2.76 inches of travel, offering enhanced versatility. The lathe's design allows for detailed work with a maximum swing of 26.77 inches over the bed. The rotary tool operates at up to 4,000 RPM, driven by a 3.5 HP motor, and is capable of fine rotational positioning with 0.001-degree spindle rotation for both the main and subspindle. A 12-station turret is included for diverse tooling options.

Measuring 92 x 74 x 80 inches and weighing 9,500 lbs, this machine offers robust construction for industrial needs. Its excellent condition ensures reliable operation and precision in machining demanding components, making it an ideal addition to busy manufacturing environments seeking to enhance their production capabilities.

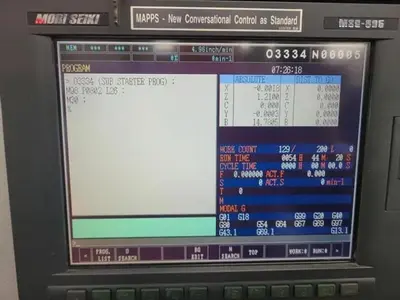

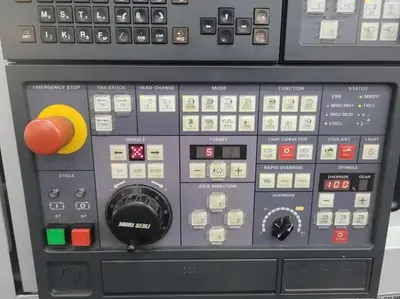

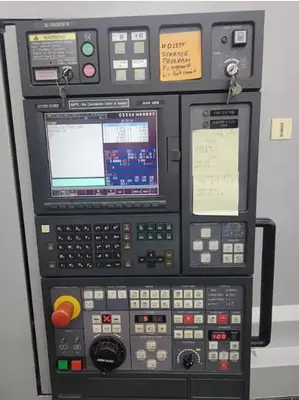

Control: Mori Fanuc MSC-805 with Mapps Conversational
Chuck Sizes Main / Subspindle: 3J Collet Chuck / Collet Chuck
Maximum Swing over Bed: 26.77"
Maximum Turning Diameter: 11.81"
Maximum Turning Length: 13.78"
Maximum Bar Capacity: 1.77"
X-axis travel: 8.5"
Y-Axis Travel: 2.76"
Z-Axis Travel: 19.29"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation: .001 / .001 Degree
Spindle Nose / Spindle Bore: A2-5" / 2.3"
Spindle Speeds: 6,000 RPM
Spindle Motor: 10 HP
Subspindle Speed / Subspindle Motor: 5,000 RPM / 10 HP
Rotary Tool Speed / Rotary Motor: 4,000 RPM / 3.5 HP

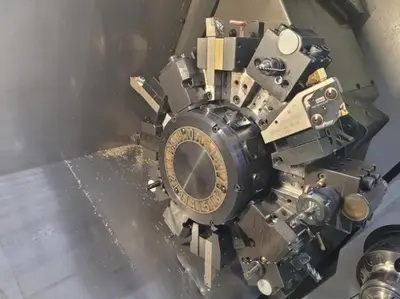

Number of Turret Positions: 12 Station Turret
Machine Dimensions: 92" x 74" x 80"
Machine Weight: 9,500 lbs.
