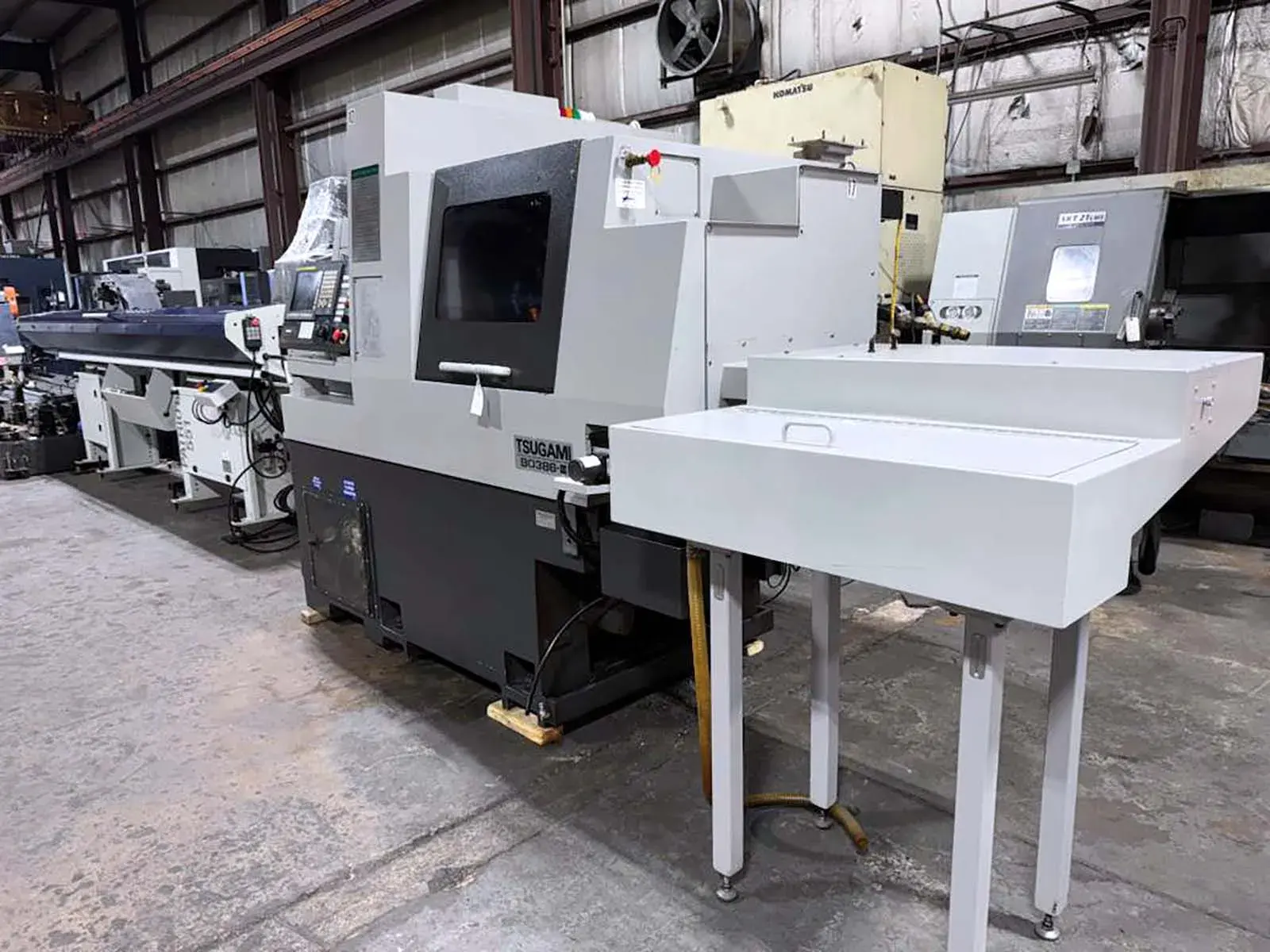

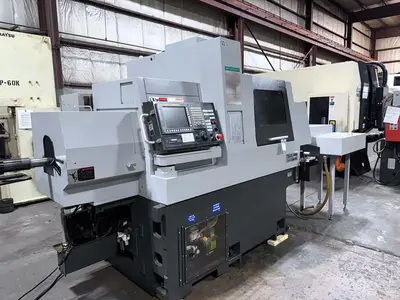

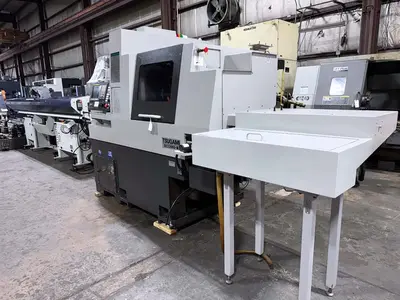

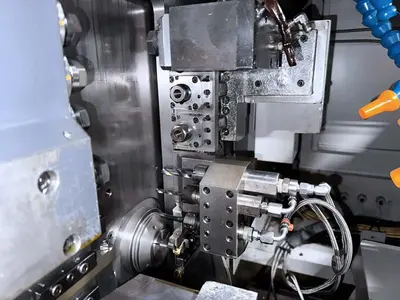

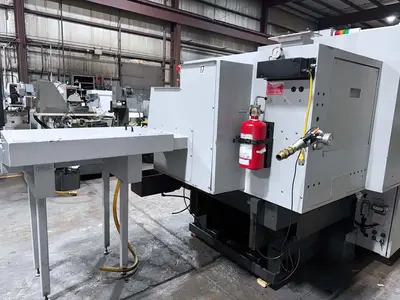

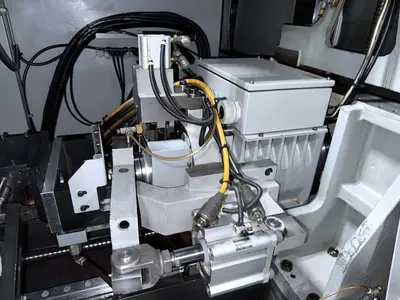

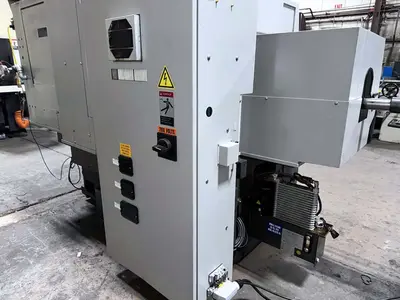

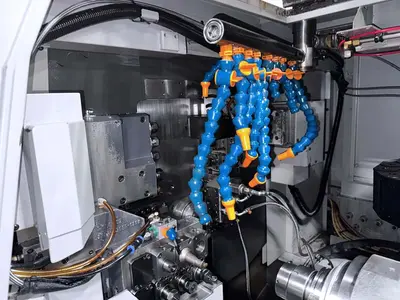

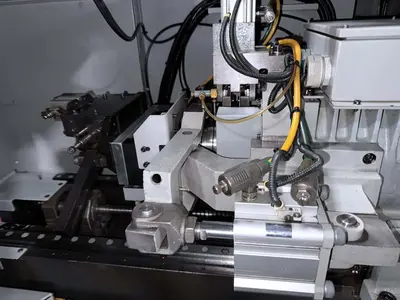

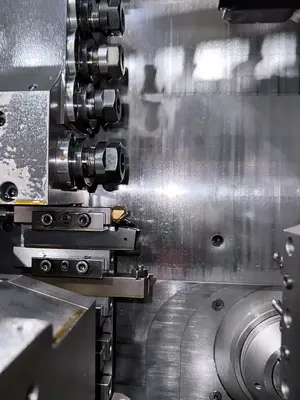

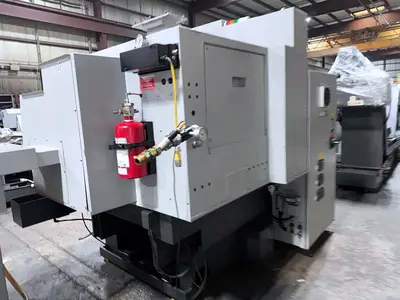

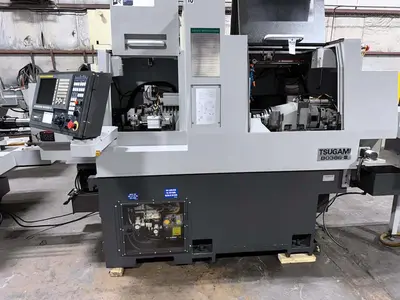

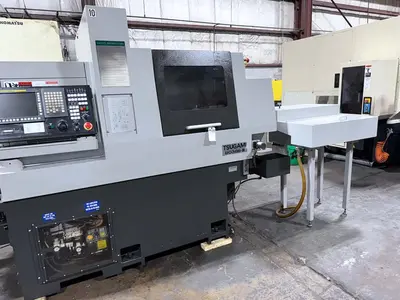

USED 2018 TSUGAMI BO386-III

High Speed Rapid Traverse: 1260 IPM
Max Bar Capacity: 1.5″ (38 mm)
Max tool positions: 29
Max. Drilling Diameter: 0.511″ (13 mm)
Max. tapping diameter: M12
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Speed: 200 – 6.000 RPM
Main Spindle Motor: 11 kw

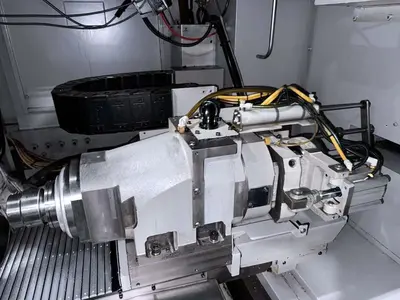

Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 7,000 RPM
Back Spindle Motor: 5.5 kw

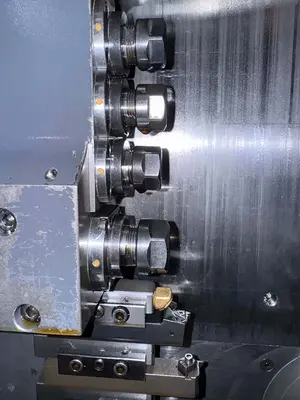

Front turning stations: 5
Back turning stations: 5

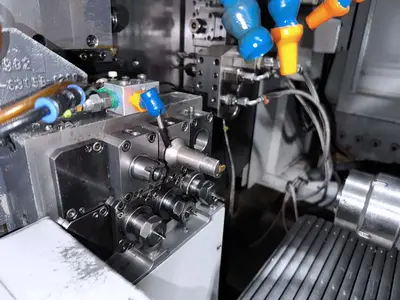

Front drilling head stations: 5
Turning stations: 2
Live cross mill stations: 4
Live sub milling stations: 8
Driven Tool Speed: 200 – 6,000 RPM
DRIVEN TOOL MOTOR: 1.4 kw
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 22.4 kva
High without Bar Feeder: 88″ X 60″ X 81″
Weight: 10,694 lbs. Approx.

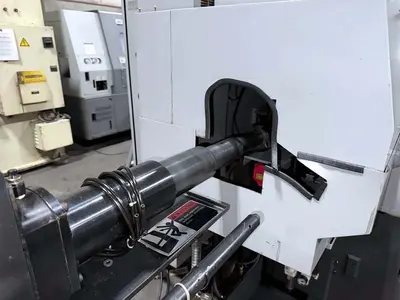

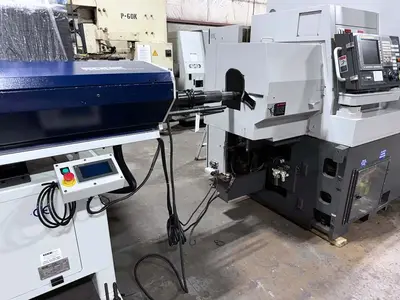

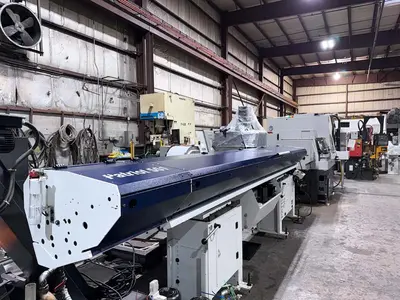

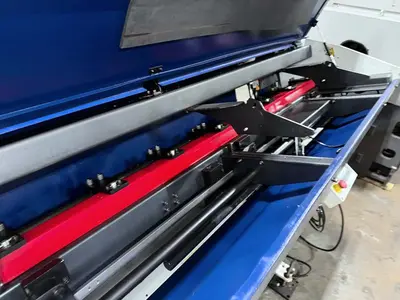

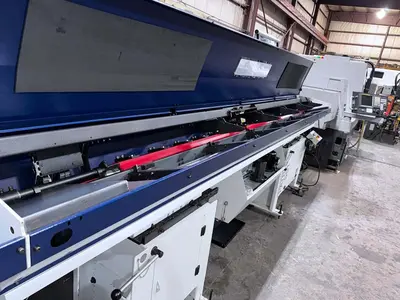

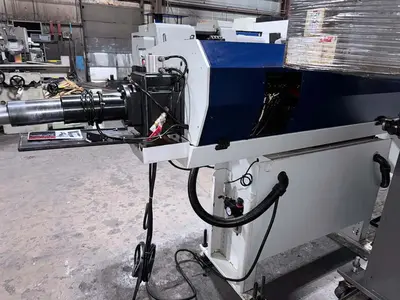

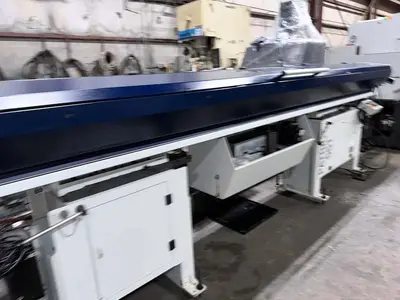

Edge Patriot 551 12' magazine barloader

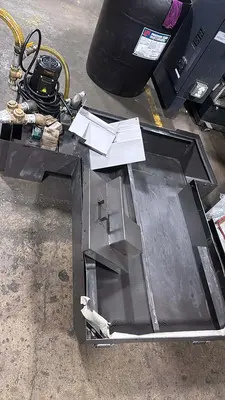

Tri-Mist Collector
Misc. Tooling
