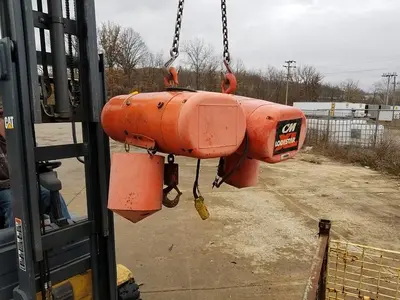

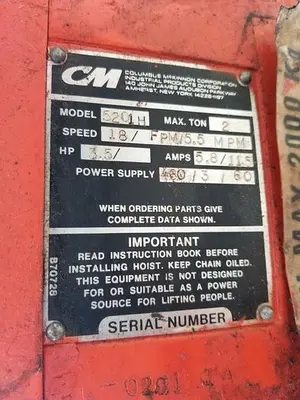

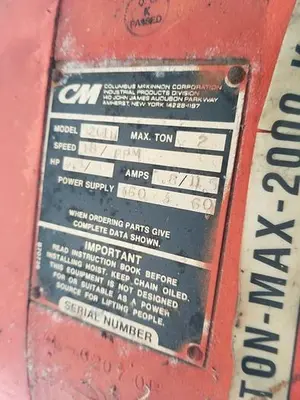

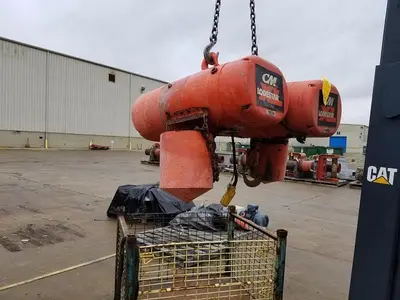

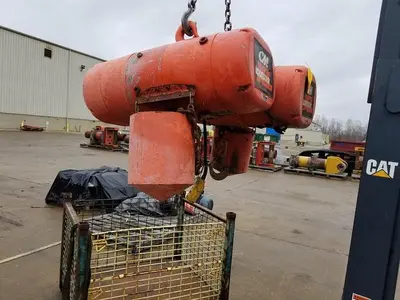

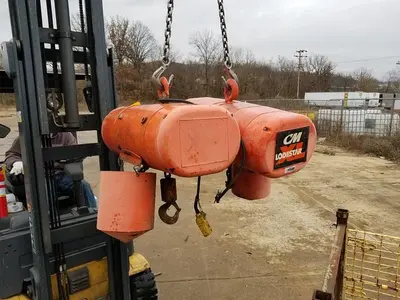

CM Lodestar XL 2-Ton Electric Chain HoistHeavy Duty H4 Rated | 18 FPM | 3.5 HP | 460V 3-PhaseAvailable now is this CM Lodestar XL #5201H, a powerhouse in industrial lifting. This 2-ton hoist is built for continuous-use environments, featuring a robust 3.5 HP motor and an H4 duty cycle rating that surpasses standard industrial hoists. The single-reeved design allows for faster, more efficient lifting at 18 FPM while maintaining a compact headroom profile. Engineered with an oil-bath gearbox and a heavy-duty disc brake, this USA-made hoist is designed for decades of reliable service in the most demanding manufacturing conditions.Tech SpecsModel Number: 5201H (Lodestar XL Series)Capacity: 2 Ton (4,000 lbs)Lifting Speed: 18 FPM (Feet Per Minute)Motor: 3.5 HP High-TorqueDuty Rating: H4 (Heavy Duty)Power Requirement: 230V or 460V, 3-Phase, 60HzReeving: 1-Part (Single Reeved)Safety Features: Standard Overload Protector, Thermal Motor Protection, and Screw-type Limit SwitchesBraking System: Heavy-duty multiple disc braking systemOrigin: Made in the USAKey Selling PointsHigh-Duty Performance: Rated H4 for heavy-duty service, this hoist can handle high-frequency lifting without thermal cutout.Superior Motor Power: Equipped with a 3.5 HP motor, providing consistent torque and speed even under maximum 4,000 lb loads.Advanced Safety: Includes an integrated mechanical overload protector and adjustable screw-type limit switches for precise control over hook travel.Smooth Operation: Features a forged ten-pocket oblique-lay liftwheel that reduces chain wear and ensures steady lifting speeds.
Custom bundle: No
Lifting method: Electric
Modified item: No
* Power Requirement: 230/460V, 3-Phase (Standard Industrial)
* Duty Rating: H4 (Heavy Duty)
* Braking System: Heavy-duty DC magnetic brake
* Origin: Made in the USA
* Motor: 3.5 HP High-Torque
* Capacity: 2 Ton (4,000 lbs)
* Reeving: 1-Part (Single Reeved)
