USED 2008 FOOKE ENDURA 905 LINEAR
Overview
Retrofitted in 2017

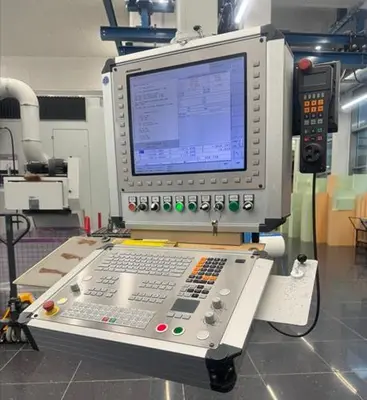

Heidenhain iTNC 530 CNC Control
5 simultaneous CNC Axes (Full 5-Axis Capability)
Drives - Linear Motors for High Dynamic Performance
High Frequency Spindle - 32 kW - 24,000 rpm - HSK 63A Interface
Protection - IP54
Tool System:
Large capacity magazine
Max tool diameter 70 mm (140 mm with adjacent slots free)
Max tool length 400 mm
Max single tool weight 8 kg
Max cumulative load 200 kg
Cooling System Included:
Industrial chiller by HYFRA SWK320-1-S-Spl (2007)
Cooling capacity 35 kW, R407C refrigerant, equipped for machine
Thermal stability and spindle cooling
Features & Benefits:
Large format gantry design —ideal for big parts
High accuracy 5-axis machining
Linear-motor dynamics for superior surface quality
Robust industrial cooling package included
German engineered, industrial production quality
Specs
Manufacturer: Fooke
Model: ENDURA 905 LINEAR
Year: 2008
Condition: Used
Stock Number: 5654313
Spindle speeds: 24,000 rpm
Spindle power: 32 kW
X axis travel: 7,500 mm
Y axis travel: 3,500 mm
Z axis travel: 2,300 mm
Spindle taper: HSK63 A
Electrics: 400/230 V - 50 Hz - 130 kW Installed
Machine weight: 120,000 kg
