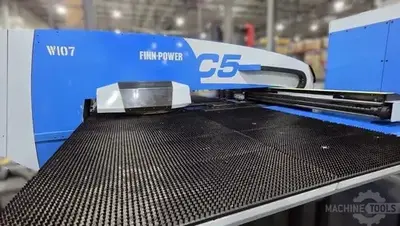

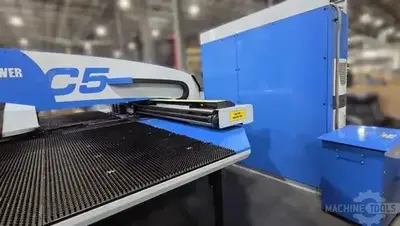

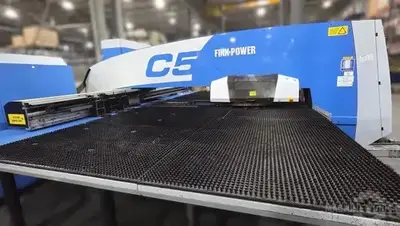

USED 2008 FINN-POWER C5
Overview
Description
33 Ton Turret Punch
Specifications
| Tonnage | 33 T | 29.937 t |
|---|---|---|
| # Turret Stations | 20 | 20 |
Request a Quote
Add to Cart
Capacity: 33 Ton
X-Axis Travel: 48"
Y-Axis Travel: 96"
Control: Siemens Sinumeric 840D
Turret Stations: 20
Throat Depth: 48"
Max Sheet Size Without Repositioning: 99.6" x 50"
Turret Configuration (Thick): 20 Stations
Turret Speed: 24 RPM (Bi-Directional)
Max Hit Rate: 420 HPM (1" Increment Movement)
Hit Rate (Continuous Nibble Mode): 1100 SPM
Max Table Traverse Speeds (X-Axis): 3540 IPM
Max Table Traverse Speeds (Y-Axis): 2352 IPM
Max Punch Diameter: 3.5"
Max Traverse: 101.7" x 51.8"
Max Sheet Weight: 440 Lbs
Maximum Sheet Thickness: 5/16"
(8) Auto-Index Stations: Including (3) Multi-Tool Holders
Multi-Tool Compatible for (2) Auto-Index and (1) Keyed Station
