USED 2018 KM KEY MACHINERY GMBH MC1

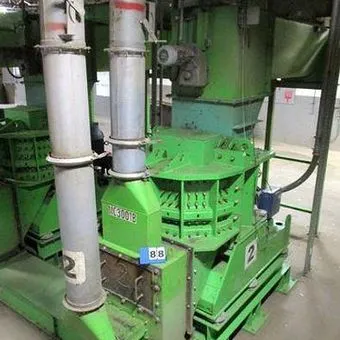

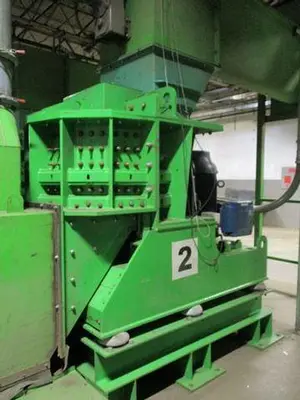

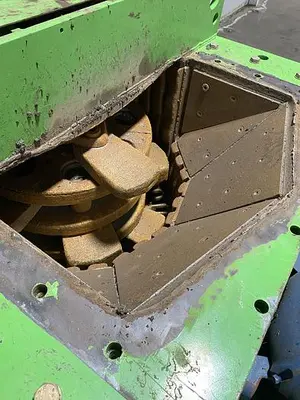

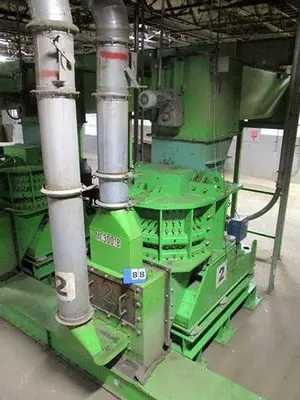

THE KM KEY MACHINERY GMBH MC1 VERTICAL HAMMERMILL GRINDER IS A 2018 MODEL DESIGNED FOR A COMPREHENSIVE RANGE OF MATERIAL PROCESSING APPLICATIONS. THIS MACHINE, ALSO KNOWN AS THE MC MILL, FUNCTIONS AS A COMBINED GRANULATOR MILL AND ROTOR IMPACT MILL, UTILIZING A VERTICAL ROTOR SHAFT WITH FLEXIBLY MOUNTED IMPACT TOOLS. ITS FUNCTIONAL DESIGN PRINCIPLE IS A COMBINATION OF IMPACT CRUSHING WITH AN OPTIONALLY FORCED PASSAGE THROUGH EXCHANGEABLE GRIDS. THE MACHINE IS ENGINEERED TO PERFORM SHREDDING, DOWN-SIZING, CLEANING, BALL-SHAPING, DISAGGLOMERATION, AND SELECTIVE CRUSHING. IT HANDLES INPUT MATERIALS SUCH AS WEEE SCRAP, AUTOMOTIVE SHREDDER RESIDUE (ASR), MINERALS, AND OTHER BRITTLE FRACTURING MATERIALS, WITH THE MAXIMUM PARTICLE SIZE LIMITED BY THE INLET GEOMETRY. THE SPECIFIC UNIT FEATURES AN APPROXIMATE 28"X32" HOUSING, IS HEAVY-DUTY I-BEAM MOUNTED, AND IS POWERED BY A 250 HP ELECTRIC MOTOR. THE DRIVE SYSTEM IS A V-BELT SYSTEM, SUPPORTING ROTOR SPEED FLEXIBILITY VIA AN OPTIONAL FREQUENCY CONVERTER. MATERIAL IS FED VIA A CO#FD3002C AUGER SCREW CONVEYOR FEED AND DISCHARGED THROUGH AN MC3001C DISCHARGE CHUTE. THE PROCESS ALLOWS FOR THE MACHINE TO BE ADAPTED TO THE MATERIAL BY CHANGING THE SHAPE AND NUMBER OF TOOLS, THE GEOMETRY OF THE GRIDS, AND THE ROTOR SPEED. A DEDUSTING SYSTEM WITH A CAPACITY OF 6000–10000 M³/H IS REQUIRED FOR OPERATION.
