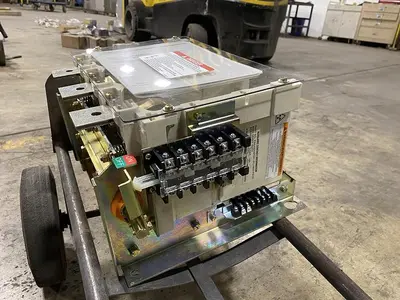

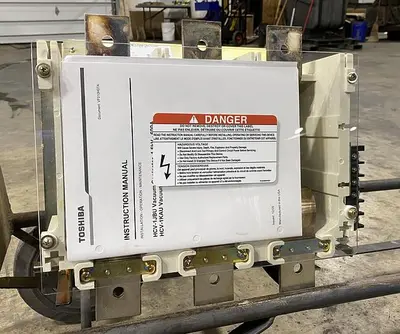

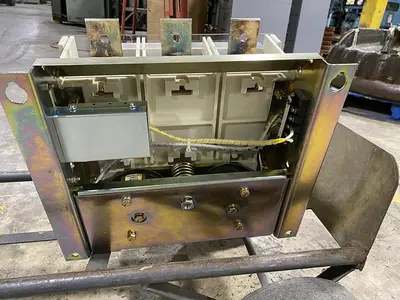

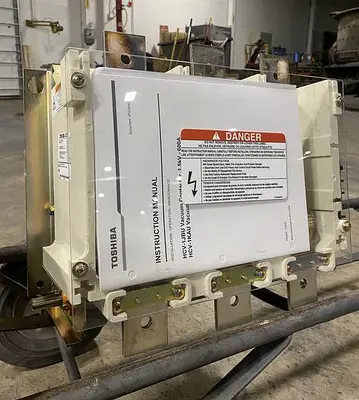

USED 2016 TOSHIBA HCV-1JBU

THE TOSHIBA HCV-1JBU IS A LOW-VOLTAGE VACUUM CONTACTOR SUITABLE FOR MOTOR STARTERS, TRANSFORMER FEEDERS, AND CAPACITOR SWITCHING APPLICATIONS. IT IS RATED FOR A VOLTAGE RANGE OF 208 TO 1500 V AND FEATURES A RATED OPERATIONAL CURRENT OF 600 A, WITH A RATED THERMAL CURRENT ALSO AT 600 A. THE CONTACTOR OFFERS A HIGH INTERRUPTING CURRENT OF 42,000 A AND IS DESIGNED FOR PROTECTIVE COORDINATION WITH CURRENT-LIMITING FUSES FOR PROSPECTIVE SHORT-CIRCUIT CURRENTS UP TO 50 KA. IT CONFORMS TO STANDARDS LIKE UL 508 AND IEC 60470. THE HCV-1JBU INCLUDES A SOLID-STATE ELECTRONIC CONTROL DRIVE UNIT THAT ACCEPTS A WIDE STANDARD CONTROL VOLTAGE OF 100 TO 240 VAC/VDC AND HAS A LOW HOLDING BURDEN OF 50 VA. THIS ELECTRONIC DESIGN MINIMIZES CURRENT CHOPPING, WHICH ELIMINATES THE NEED FOR EXTERNAL SURGE PROTECTION IN MOST APPLICATIONS. THE UNIT HAS A MECHANICAL LIFE OF 2.5 MILLION OPERATIONS AND AN ELECTRICAL LIFE OF 500,000 OPERATIONS, WITH A MAXIMUM SWITCHING FREQUENCY OF 1200 PER HOUR. IT FEATURES A 3NO-3NC AUXILIARY CONTACT ARRANGEMENT AND HAS A WEIGHT OF 59.5 LBS (27 KG).
