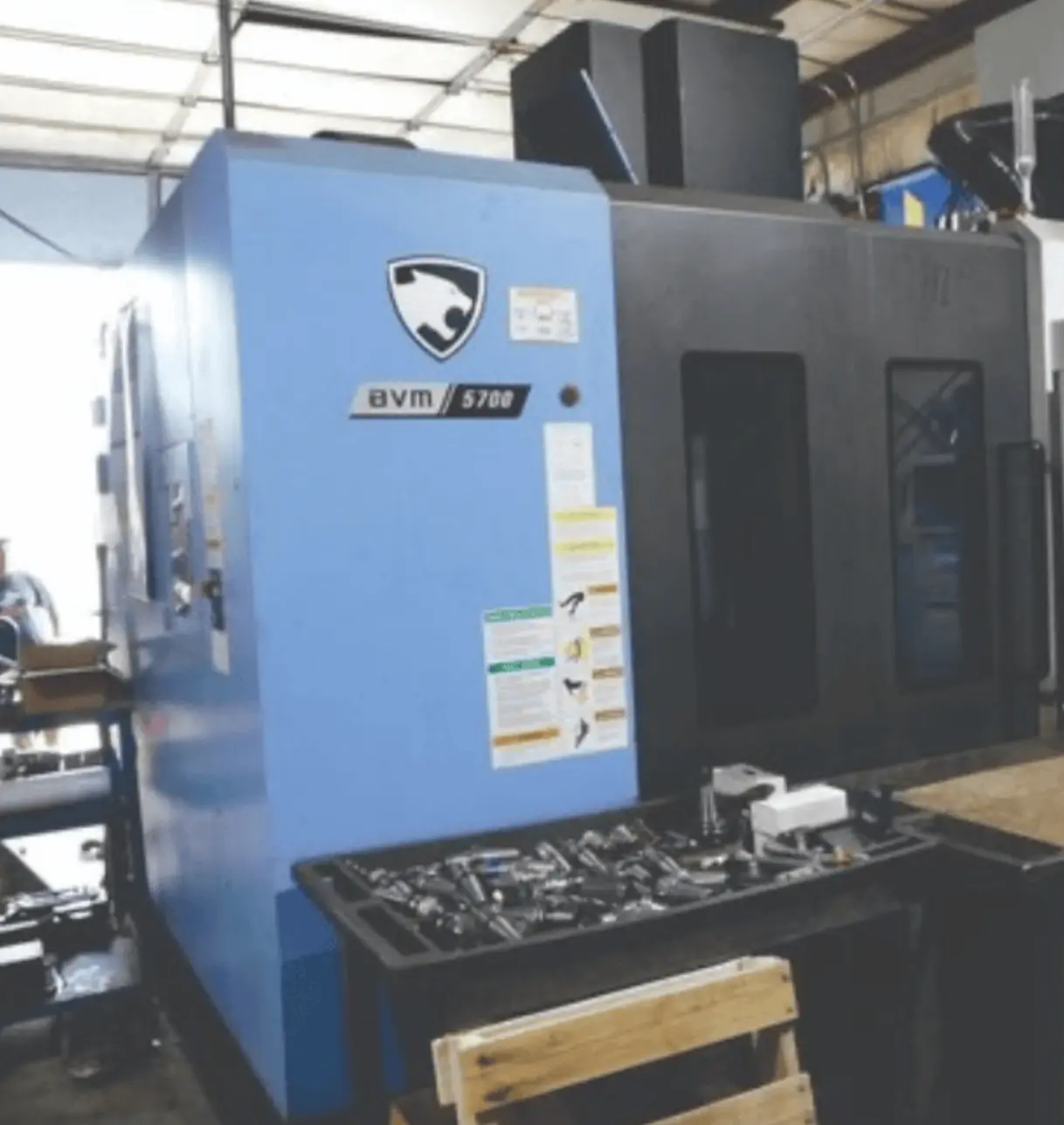

Vertical Machining Center, used condition. Features 41.3" x 22.4" x 18.1" axis travel, 50 hp, 15,000 RPM, BT-40 taper, 3-axis, and includes Turbo LNS HB Barfeeder and Tubo Chip Blaster.
| X | 41.3" | 1,049 mm |
| Y | 22.4" | 568.96 mm |
| Z | 18.1" | 459.74 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| Taper | BT-40 | BT-40 |
| # Axis | 3 | 3 |
Axis Travel
X-Axis 1,050 mm / 41.3″
Y-Axis 570 mm / 22.4″
Z-Axis 460 mm / 18.1″
Rapid Feedrates
X / Y 42 m/min (approx. 1,653 IPM)
Z 36 m/min (approx. 1,417 IPM)
Spindle
Max Spindle Speed 15,000 RPM
Max Spindle Power ~37 kW (~50 hp)
Max Torque ~214 Nm (158 ft-lb)
Taper / Tool Interface BT-40 / ISO #40
Table/Work Envelope
Table Size (L × W) 1,300 × 570 mm (51.2″ × 22.4″)
Max Workpiece Weight ~1,000 kg (2,205 lb)
Table to Spindle Nose ~610 mm
Machine FootPrint
Length ~3,080 mm (121.3″)
Width ~2,560 mm (100.8″)
Height ~2,890 mm (113.8″)
Weight ~7,500 kg (16,535 lb)
Turbo LNS HB Barfeeder
Tubo Chip Blaster
