| Swing | 78.7" | 1,999 mm |
| Machining Length | 200" | 5,080 mm |
| # Axis | 2 | 2 |
| Chuck Size | 55" | 1,397 mm |
| Power | 75 hp | 55.9 kW |
| Max RPM | 250 RPM | 250 RPM |
| Turning Dia | 60" | 1,524 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 18T) | CNC (Fanuc 18T) |

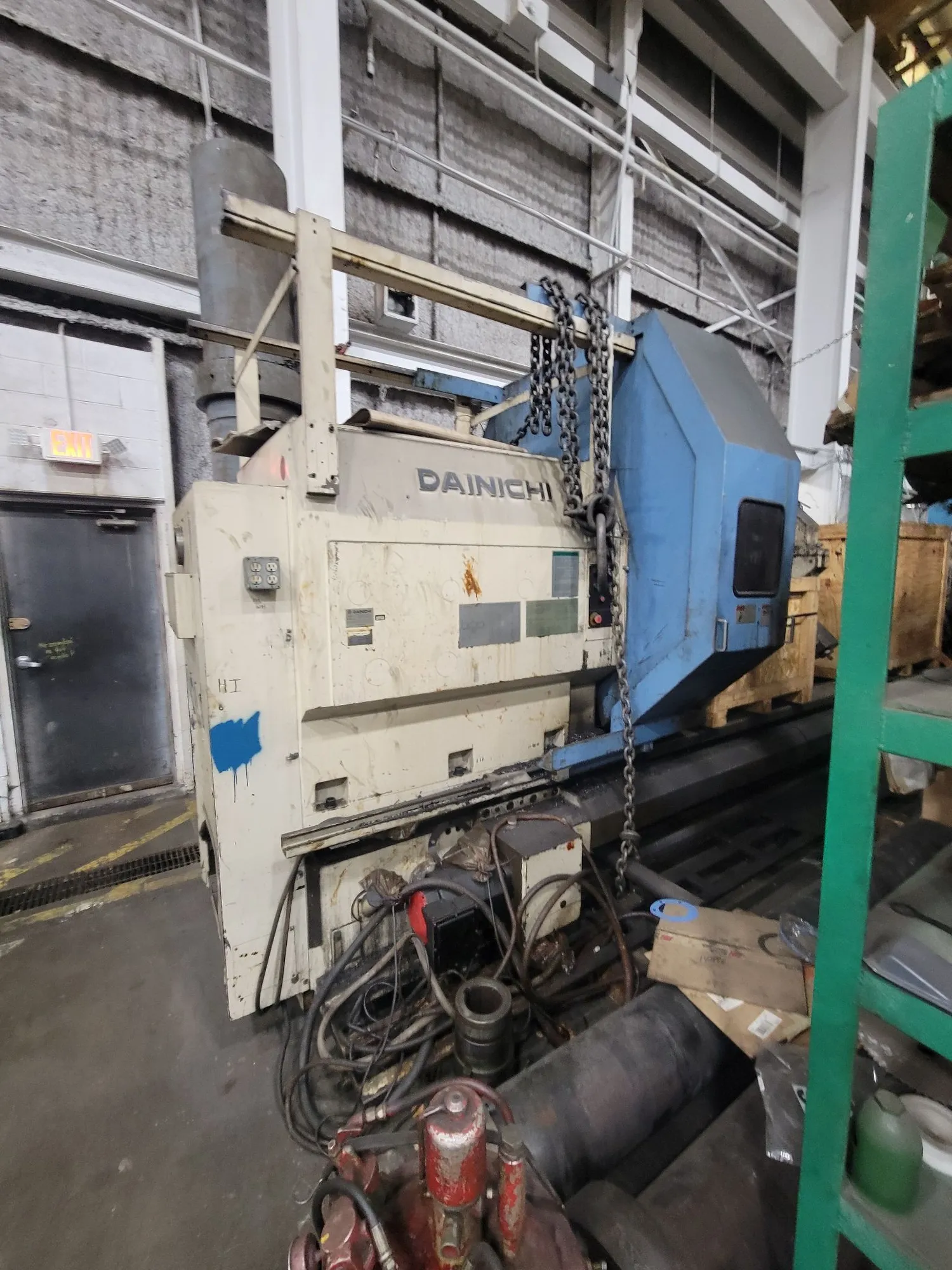

Dainichi
Model W-16 200X 500 CNC Flat bed lathe with Fanuc 18T Control
78.7” Swing X 196.8” Centers
59” Swing over Cross slide
55” 4- jaw Chuck
30” Way span middle to middle
30” Capacity Steady rest
4 Way toll post programmable
Chip conveyor
Mfg’d 1999
Low hour was holding critical tolerances before disconnecting. 2021
55" 4 jaw chuck, 30" capacity steady rest, 4 way tool post, all available manuals
