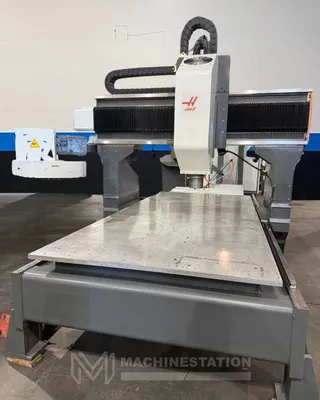

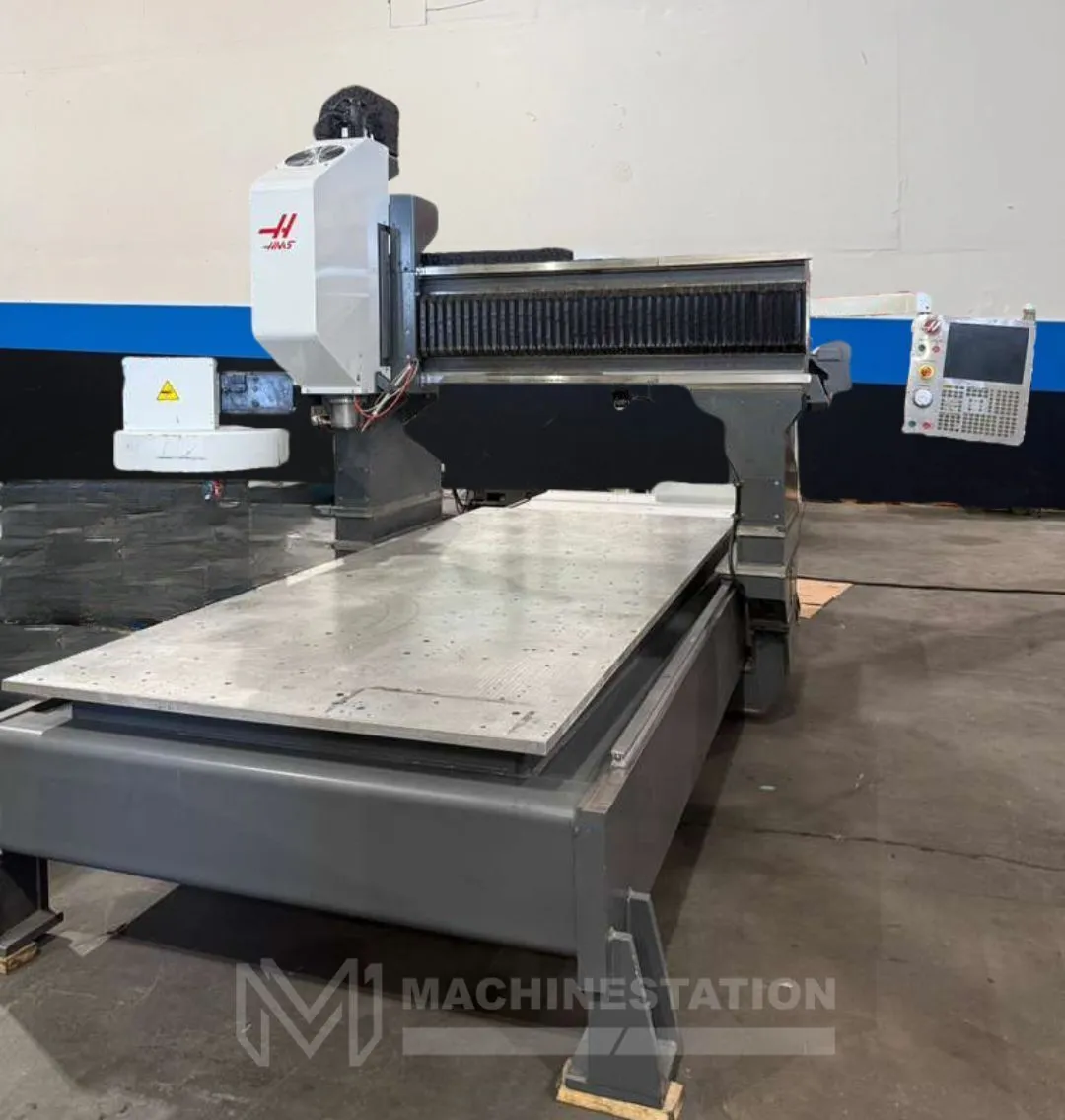

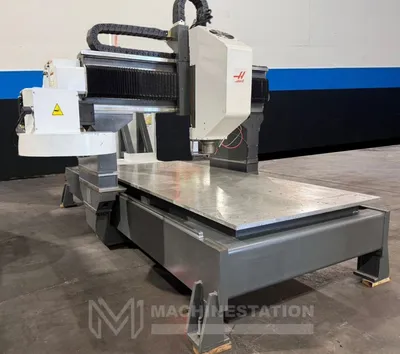

USED 2011 HAAS GR-510
Specifications
| X | 121" | 3,073.4 mm |
|---|---|---|
| Y | 61" | 1,549.4 mm |
| Z | 11" | 279.4 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | 40 | 40 |
| Table-W | 53" | 1,346.2 mm |
| Table-L | 122" | 3,098.8 mm |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 206″ x 111″ x 108″ High | 206″ x 111″ x 108″ High |
| Weight | 19,400 lbs | 19,400 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Replacement Cost Over $220k with Similar Options
Features:
Haas CNC Control
Remote Jog Handle
Coolant System
Travels:
X-Axis: 121″
Y-Axis: 61″
Z-Axis: 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″
Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
X Axis Rapid Traverse Rates: 800 Inch Per Minute
Y Axis Rapid Traverse Rates: 2100 Inch Per Minute
Z Axis Rapid Traverse Rates: 1100 Inch Per Minute
Table:
Length: 122″
Width: 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
General:
Air Required: 100 psi, 4 scfm

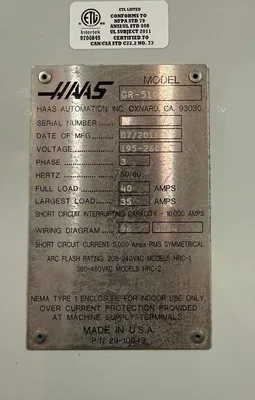

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs
Equipped With
10,000 RPM Spindle (Upgraded $6,195 value Included)
6″ Extended Z-Axis Clearance (Upgraded $8,195 value Included)
20 Station Automatic Tool Changer (Upgraded $5,395 value Included)
Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included)
