| X Axis | 39.37" | 1,000 mm |
| Y Axis | 23.62" | 599.95 mm |
| Z Axis | 23.62" | 599.95 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 47.24" | 1,199.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 118″ x 102″ x 110″ High Approx. | 118″ x 102″ x 110″ High Approx. |
| Weight | 14,330 lbs Approx. | 14,330 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc 180i Series CNC Control
15,750 Hours Cutting Time
24 Station Automatic Tool Changer
40 Taper Spindle
Rigid Tapping

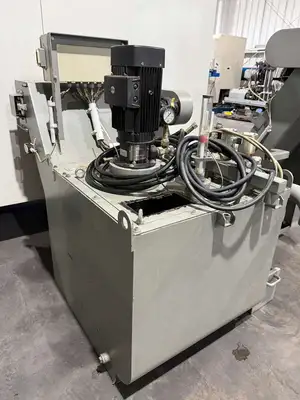

Coolant system
Travels:
X-Axis: 39.37″
Y-Axis: 23.62″
Z-Axis: 23.62″
Rapid Traverse Rates: 1181 Inch Per Minute

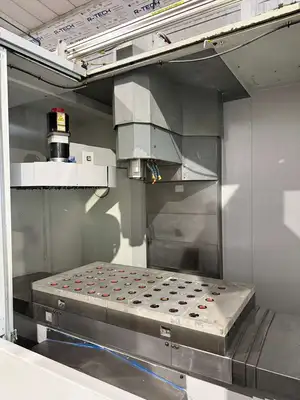

Table:
Length: 47.24″
Width: 23.62″
Max Weight on Table: 1103 lbs
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 24 Station
Tool Weight: 15.43 lbs
Max Tool Dia: 3.14″
General:
Air Required: 80 psi 4 scfm
Power: 400v / 30 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 118″ x 102″ x 110″ High Approx.
Weight: 14,330 lbs Approx.
10,000 RPM Spindle
Through Spindle Coolant

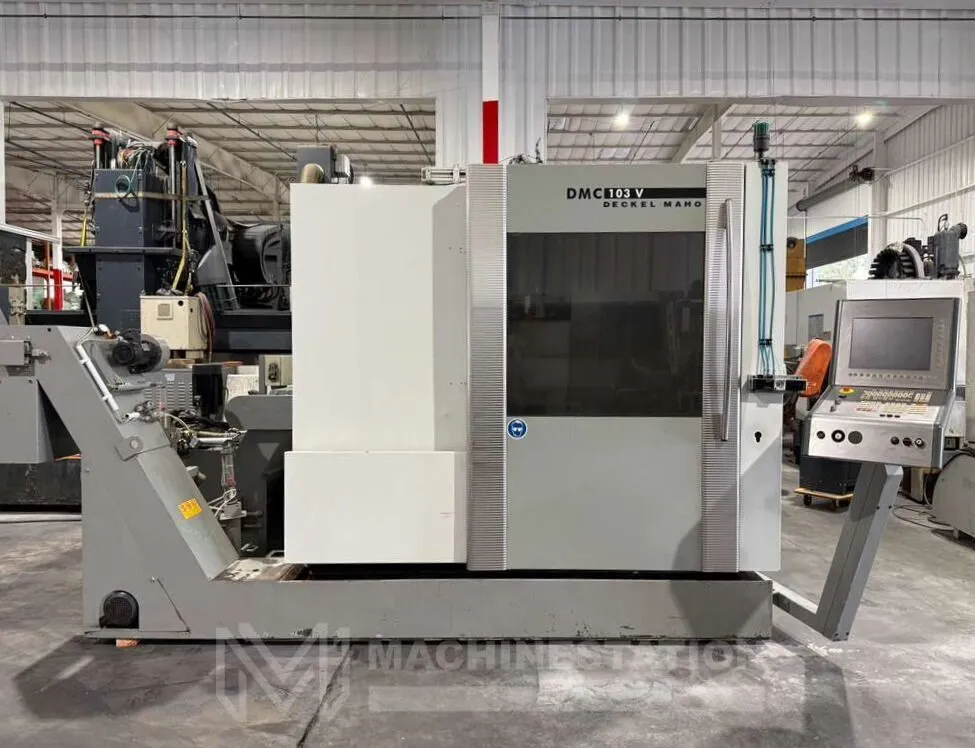

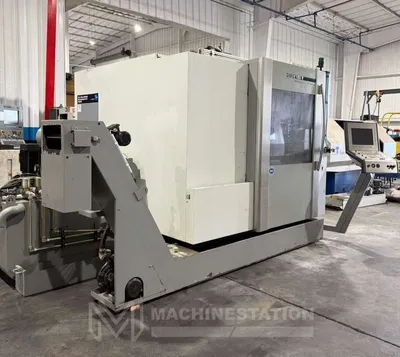

Chip Conveyor
