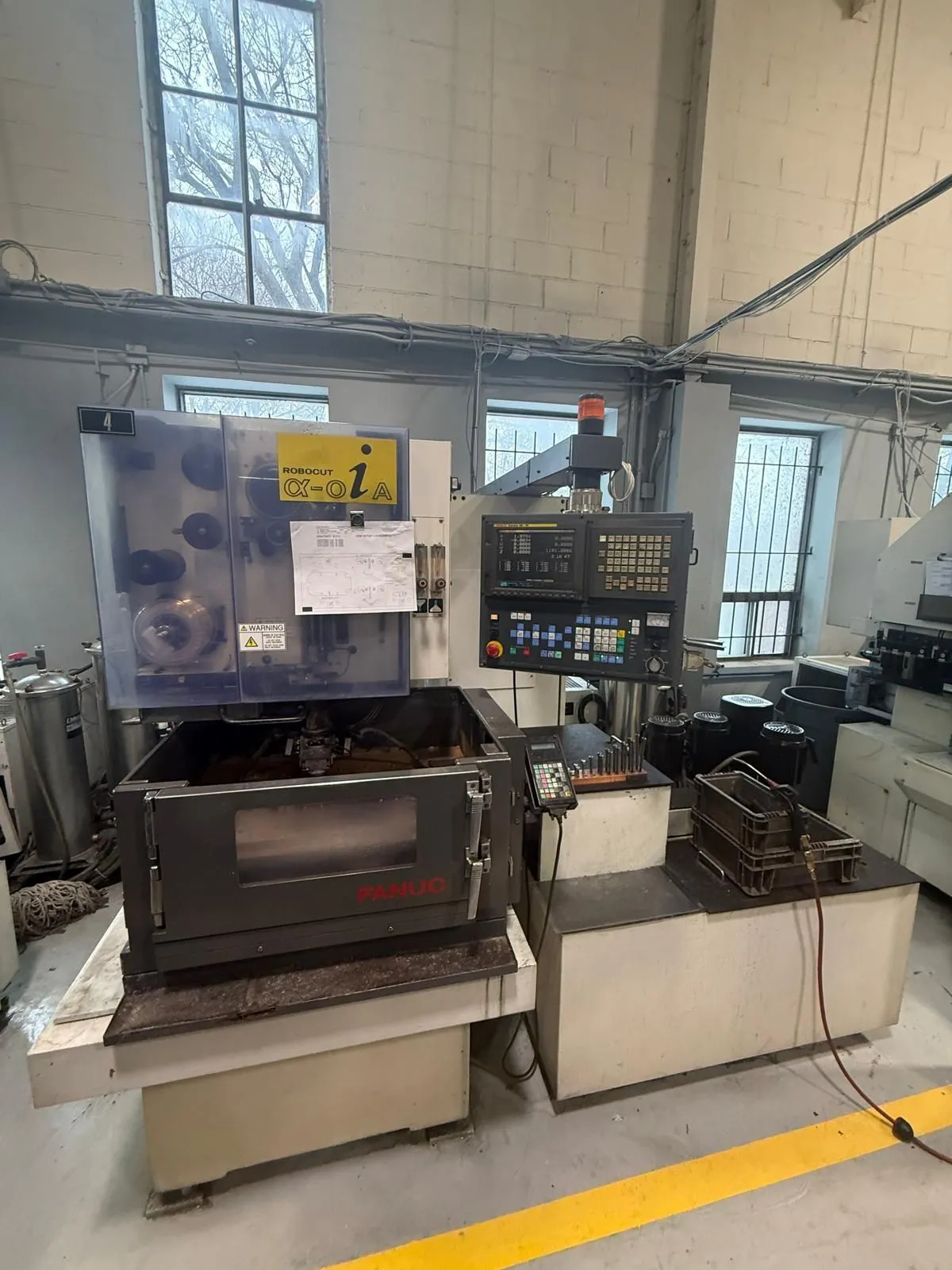

USED 2000 FANUC ROBOCUT ALPHA OIA

2002 FANUC ROBOCUT α-0iA WIRE EDM

Manufacturer: Fanuc
Model: Robocut α-0iA
Mfg Date: 2000

POWER: 200/220v, 50/60hz, 3ph

Axis Travels (Stroke):
X-axis travel: 320 mm
Y-axis travel: 220 mm
Z-axis travel: 180 mm

Table Capacity
Max Workpiece Length: 650 mm
Max Workpiece Width: 420 mm
Max Workpiece Height: 170 mm
Max Workpiece Weight: 500 kg

Accuracy (Inspection Certificate)
Straightness Error: 0.001 mm
Squareness Error: 0.001 mm
Positioning Accuracy (X Axis): 0.004 mm
Positioning Accuracy (Y Axis): 0.001 mm
Repeatability: ±0.001 mm
Parallelism (Work Surface): 0.004 – 0.007 mm
Z-Axis Squareness: 0.002 mm
Units: mm

Control & Features:
CNC Control: FANUC Series 18i-W

Machine Features
Automatic Wire Feed System
Wire Tension Control
EDM Power + Water Controls
Roller Feed + Pipe Up/Down Controls
FANUC Integrated Operator Pendant

Weight: 3000 lbs
Dimensions: 126in x 79in x 83in
