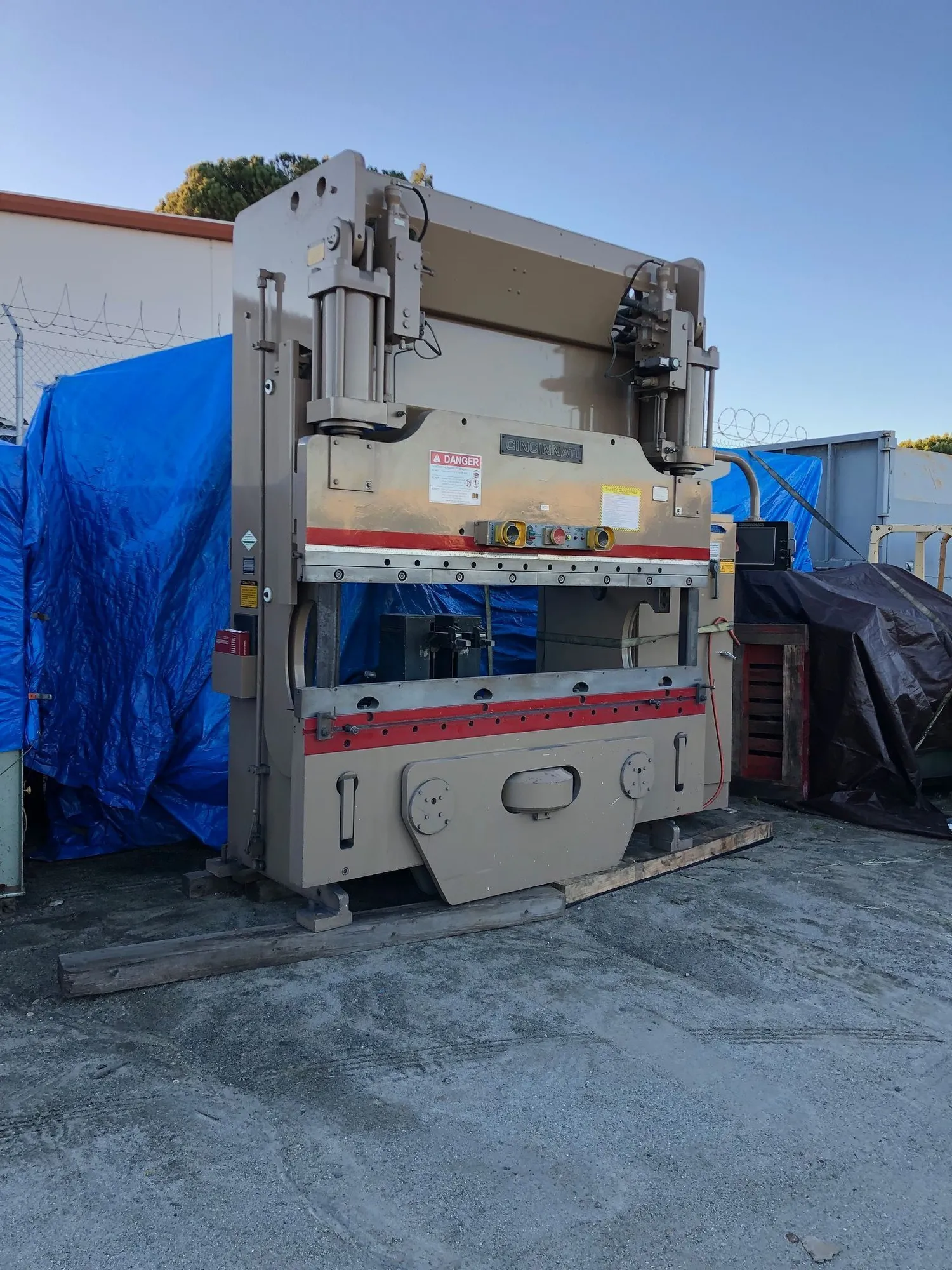

Nice running brake. Backgage needs repair on one of the slides.
| Tonnage | 90 T | 81.647 t |
| Overall Length | 8' | 2.4 m |
| Between Housings | 6.5' | 2 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
From catalog - Buyer to verify all
Capacity: 90 TON
Overall length of bed & ram: 8'
Distance between housings: 6'6"
Stroke of ram: 14"
Open height: 21"
Closed height: 7"
Depth of throat: 7"
Ram speed rapid approach: 380 IPM
Ram speed pressing: 1 TO 120 IPM
Ram speed normal return: 11 TO 405 IPM
Back gauge: 2 AXIS
Control: AUTO FORM
Electric foot pedal: YES
Dual palm buttons: YES
Motor: 15 HP
