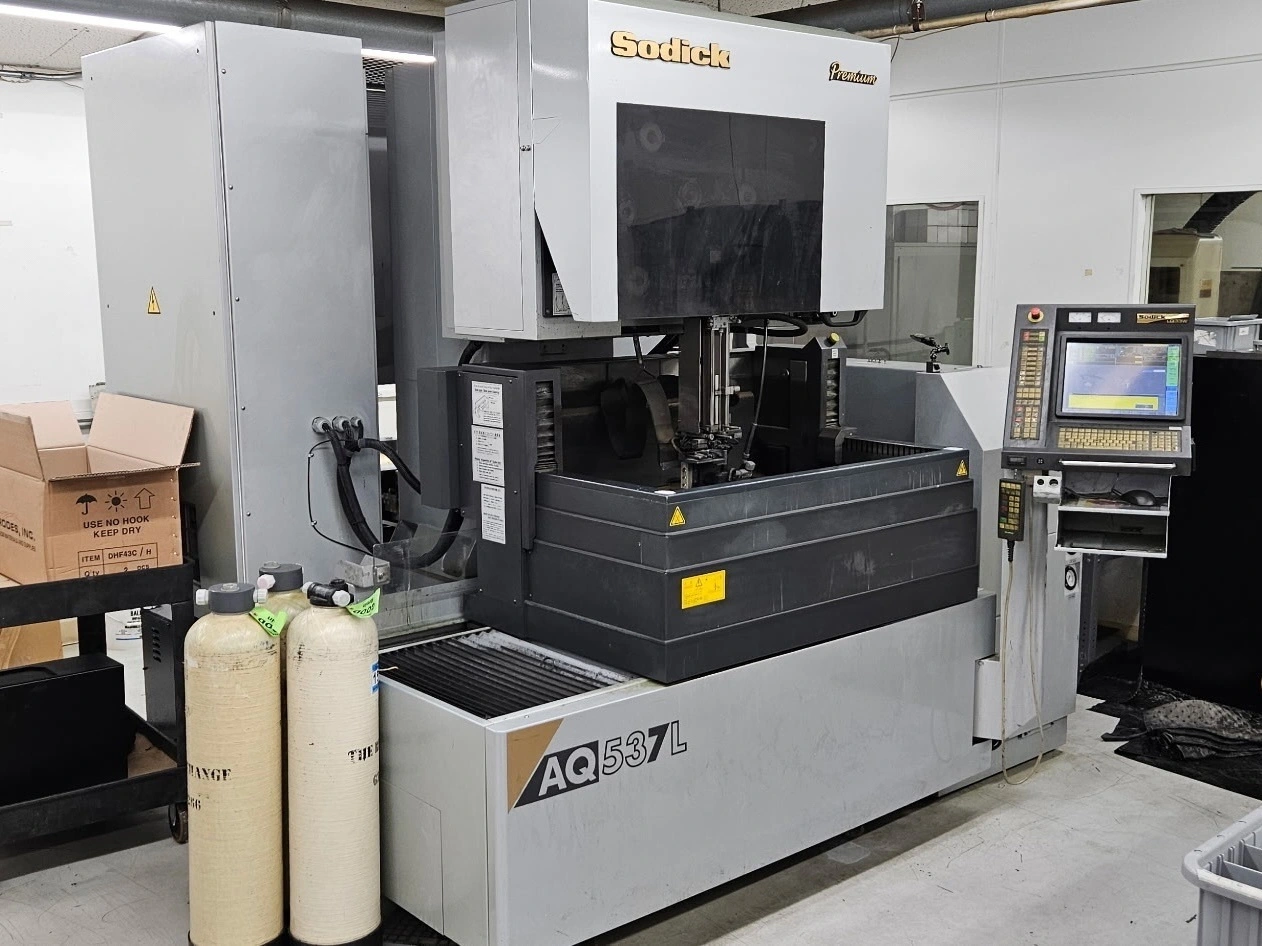

Sodick AQ537L Wire EDM - 26,986 Machining Hours
Very Clean Machine with One Shift Hours
- PREMIUM MODEL
- LQ33W CNC Control
- 31.625" x 19.625 Table Size
- 13.77 Z-axis travel
- High-Speed Electrolysis Free Circuit
- 15.1" TFT LCD Screen
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller
- Automatic Wire Threading
| # of Axis | 5 | 5 |
| Table Size - L | 31.625 in | |
| Table Size - W | 19.625 in | |
| Table Load Capacity | 2200 lb | |
| X - Axis Travel | 22.44 in | |
| Y - Axis Travel | 14.57 in | |
| Z - Axis Travel | 13.77 in | |
| U/V - Axis Travel | 4.72 in | |
| Taper Capacity | 25 deg | 25° |
| Dielectric Tank Capacity | 211 gal | |
| Control | CNC | CNC |
| Dimensions | 97" x 102" x 95" | 97" x 102" x 95" |
| Weight | 9900 | 9900 |
- PREMIUM MODEL
- LQ33W CNC Control
- High-Speed Electrolysis Free Circuit
- FT II Contact Position Detection
- Multi Task OS, Sodick Motion Controller
- 15.1" TFT LCD Screen
- Standard 101-Type Keyboard
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller
- Complete Dielectric Filtration System
- Automatic Temperature Control
- Submersible Flushing
- Automatic Wire Threading
