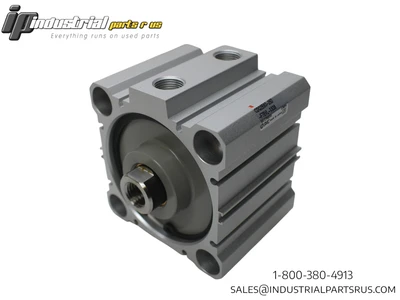

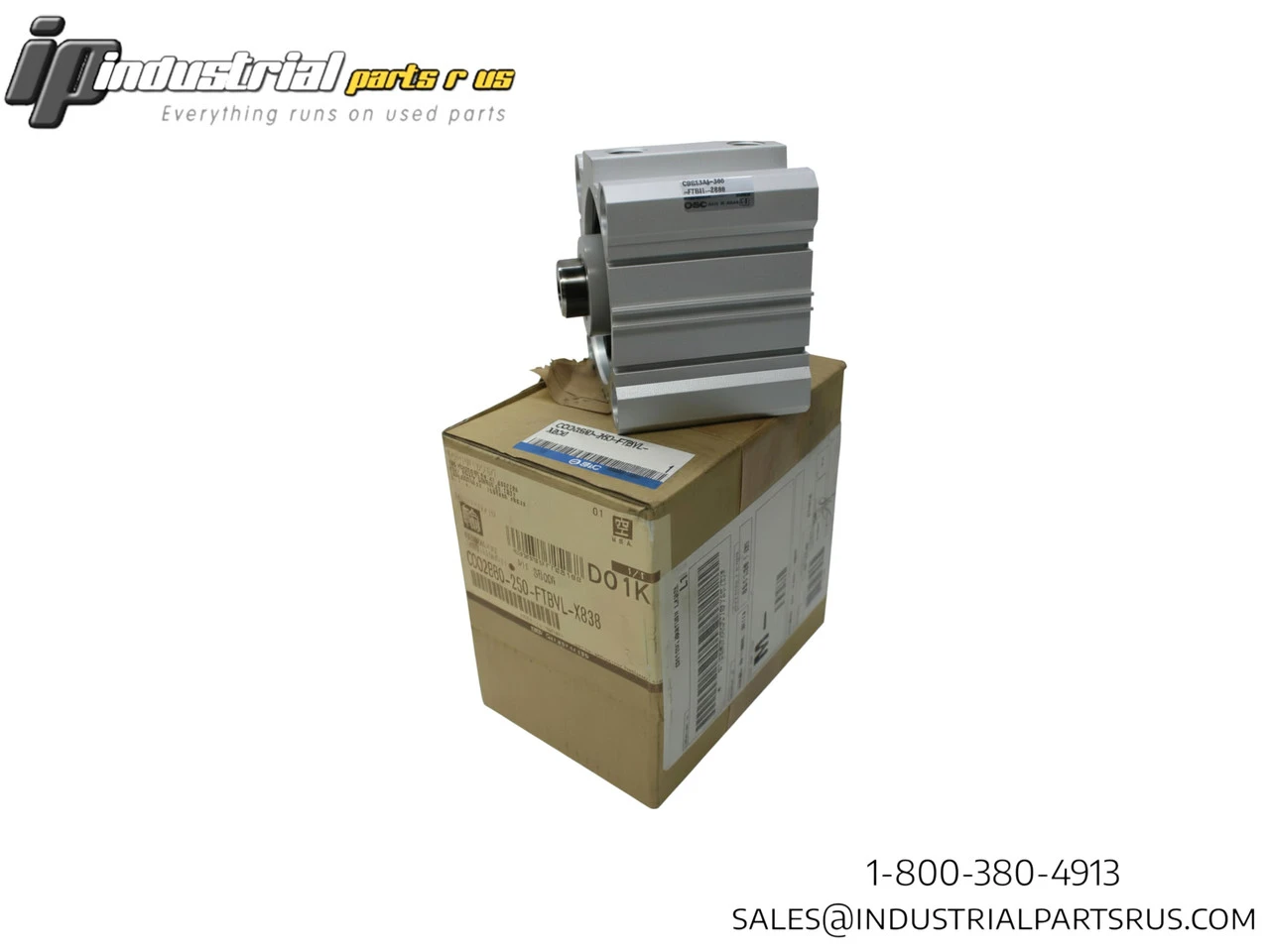

NEW SMC CDQ2B80-25D-F7BVL-X838

The SMC CDQ2B80-25D-F7BVL-X838 is a compact double-acting pneumatic cylinder designed for precision automation applications. Part of SMC's CQ2 series available in bore sizes from 4mm to 100mm, this 80mm bore model features built-in magnet and auto switch mounting grooves for enhanced versatility in industrial automation systems.
Specification
Value
Brand
SMC
Model Number
CDQ2B80-25D-F7BVL-X838
Bore Size
80mm
Stroke Length
25mm
Cylinder Type
Compact Double Acting
Maximum Operating Pressure
1.0 MPa (145 psi)
Minimum Operating Pressure
0.05 MPa (7.3 psi)
Proof Pressure
1.5 MPa (218 psi)
Mounting Type
Through-hole mounting (B)
Port Connection
Rc3/8" pneumatic threaded ports x 2
Magnetic Piston
Yes (Built-in magnet)
Auto Switch Compatibility
Mounting grooves available
Country of Origin
Japan
We warranty all items for 30 days from date of purchase.

SKU: AI0125
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 6.00
(in)
Height: 7.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Japan
Max. Mpa: 1.0
Max. PSI: 145
Max. Operating Pressure: 1.0 MPa / 145 PSI
Useraction: Double
Manufacturer: SMC
Max. Pressure: 1.0 MPa / 145 PSI
Part Number: CDQ2B80-25D-F7BVL-X838
Shelf: B-11
Stroke: 25mm
Bore Diameter: 80mm
Model: CDQ2B80-25D-F7BVL-X838
MPN: CDQ2B80-25D-F7BVL-X838
Type: Pneumatic Cylinder
