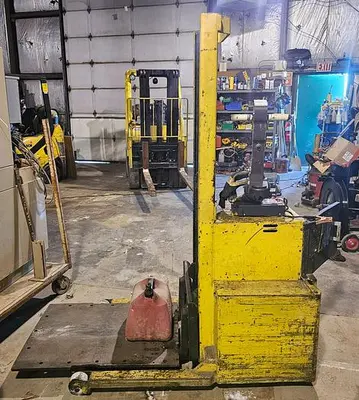

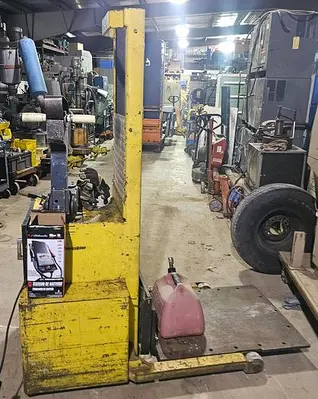

USED BIG JOE PDM 20-60

Big Joe PDM 20-60 Power Driven Straddle StackerCompact 2,000# Heavy-Weight Capacity | 60" Lift HeightThe Big Joe PDM 20-60 is a "Heavyweight" walkie stacker designed for high-performance handling in confined retail or warehouse spaces. Unlike light-duty manual stackers, the PDM series features a fully powered drive and lift system, making it ideal for loading/off-loading, inter-department transport, and stocking. Its unitized seam-welded steel frame and interlocked I-beam mast provide the structural integrity required for moving heavy skids up to 2,000 lbs.Unit OverviewManufacturer: Big Joe (Classic Series)Model: PDM 20-60Serial Number: [User to Provide for Year Verification]Condition: UsedPower Source: 12-Volt or 24-Volt Electric (Model Dependent)Battery: Integrated 110V On-Board ChargerTech SpecsLifting Capacity: 2,000 lbs @ 24” Load CenterMax Lift Height: 60" (5 Feet)Lowered Height: ~77" (Non-Telescoping)Turning Radius: ~58" (Exceptional Maneuverability)Mast Type: Single Stage Channel and I-Beam (Interlocked Steel)Travel Speed: 2.8 mph (Empty) / 2.4 mph (Loaded)Braking: Automotive-type disc brake with "Dead-Man" handle functionControl: 3-speed forward/reverse with "Belly-Button" reversing safety switchKey FeaturesHigh-Strength Construction: Features a unitized steel chassis and a chrome-plated lift cylinder for maintenance-free operation and load stability.Maneuverability: Designed specifically for "retail" applications where space is primary and back rooms are small or confined.Safety First: Equipped with a reversing impact switch (Belly-Button) in the handle and an automatic high-speed cut-off when forks are elevated.Easy Maintenance: Modular drive control panel and coded wiring simplify servicing. Hinged compartment covers provide quick access to batteries.
