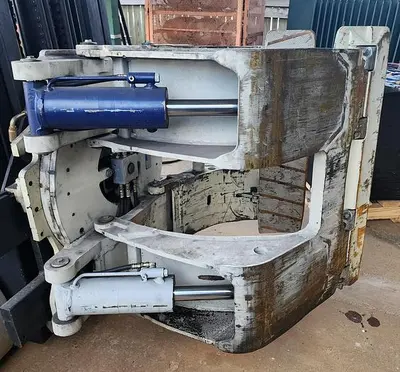

USED 2001 CASCADE 60G-RCP-116

Cascade 60G-RCP-116 Hydraulic Paper Roll Clamp6,000# Capacity | 51" Roll Diameter | 360° RotationThe Cascade 60G Series is engineered for the most demanding 3-shift environments. Designed to handle kraft, linerboard, and coated paper stocks, this 60G-RCP-116 model offers a rugged frame and superior visibility through the arms. With a 6,000 lb. capacity and 360-degree continuous rotation, it provides the precision and durability required for professional paper handling and damage reduction.Unit OverviewManufacturer: Cascade CorporationModel: 60G-RCP-116Serial Number: 98862-1Year of Manufacture: 2001Condition: UsedTech SpecsCapacity: 6,000 lbs (2,722 kg)Max Roll Diameter: 51" (1,300 mm)Rotation: 360° ContinuousMounting Class: Class III (3A)Weight: ~1,805 lbs (819 kg)Load Center: 25.5"System Pressure: Recommended 2,300 PSI (Max 2,600 PSI)Hydraulic Flow: 10 GPM Recommended (5 GPM Min / 15 GPM Max)Key FeaturesOptimized Roll Handling: Features high-grip contact pads as standard, designed to handle rolls securely with minimal clamping pressure to reduce paper damage.Rugged Rotator Gearbox: Equipped with a heavy-duty rotator ring gear and gearbox, providing 70,000 inch-lbs of torque for smooth, high-speed 180° and 360° positioning.Superior Visibility: The frame and arm design are slimmed down where possible to give the forklift operator maximum visibility through the attachment to the floor and the load.Serviceability: Features a check valve diagnostic port, allowing for hydraulic testing and service without needing to disassemble the entire clamp.

Weight: 1805 lbs
S/N: 98862-1
Load Center Diameter: 25.5"
Capacity: 6000 lbs
Min/Max System Pressure: 2300/2600 psi
* Rotation: 360° Continuous
* Mounting Class: Class III (3A)
* Capacity: 6,000 lbs (2,722 kg)
* Max Roll Diameter: 51" (1,300 mm)
* Load Center: 25.5"
* Weight: ~1,805 lbs (819 kg)
