USED 1996 BISHAMON EZ-45

Bishamon EZ-45 Self-Leveling EZ LoaderHeavy-Duty 4,500# Capacity | 360° Rotating Turntable | 1996 VintageThe Bishamon EZ-45 is the industry standard for ergonomic pallet positioning. This self-leveling work station uses a captive air spring to automatically adjust height as weight is added or removed, keeping the load at an ideal working level. Featuring a 43" rotating turntable, it allows operators to stay in one position while loading, eliminating repetitive reaching and walking. This 1996 unit is a testament to Bishamon’s durability, offering a purely mechanical/pneumatic solution with no electrical components to fail.Tech SpecsModel: EZ-45Serial Number: EZ9611001Year: 1996Capacity: 4,500 lbs (Max) / 1,100 lbs (Min)Raised Height: 30"Lowered Height: 8.75" – 10.5" (Model variant dependent)Turntable: 43" Diameter (360° Rotation)Operation: Pneumatic (Captive Air Spring)Base Dimensions: 48.5" L x 24" W (Forklift Accessible)Key Selling PointsCaptive Air System: Unlike spring-actuated models that require manual spring changes for different weights, the EZ-45 uses an air-charge system that provides more controlled, dampened movement.Maintenance-Free Design: There are no hydraulic pumps, seals to leak, or electrical motors to burn out. This 1996 unit is essentially "plug-and-play" once charged with shop air.Firestone Airstroke™ Actuator: Utilizes a heavy-duty fabric-reinforced rubber air spring. As long as the rubber is not dry-rotted, these units can remain in service for decades.Safety Integration: Includes a pressure relief valve to prevent over-inflation and integral maintenance bars to lock the scissor mechanism for safe inspection.

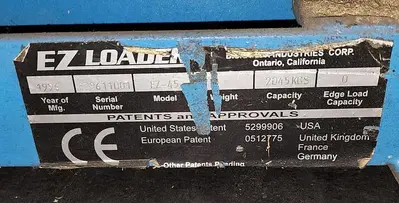

S/N: EZ9611001

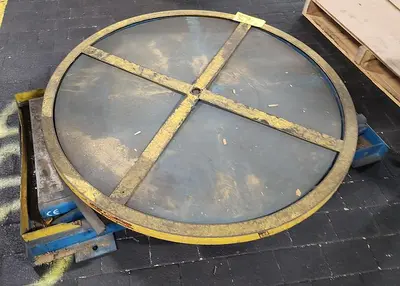

Rotary Turntable Top: 43"
Raised Height: 30"

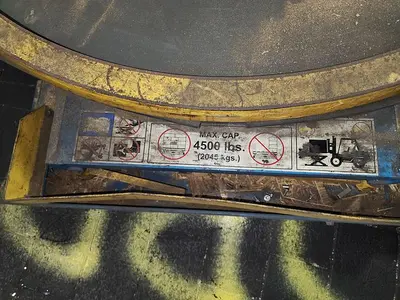

Capacity: 4500 lbs
* Raised Height: 30"
* Turntable: 43" Diameter (360° Rotation)
* Operation: Pneumatic (Captive Air Spring)
