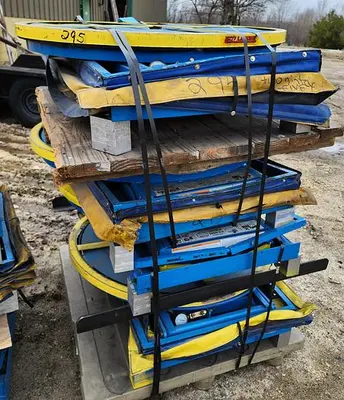

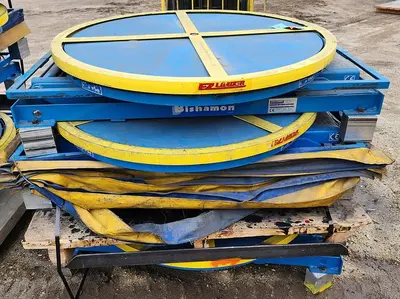

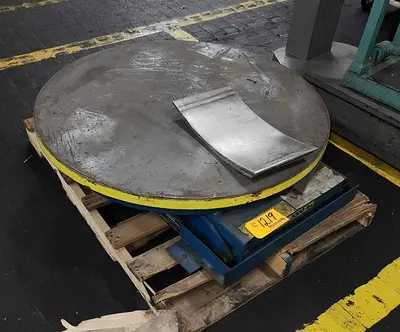

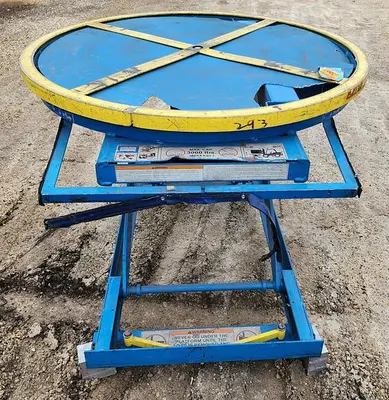

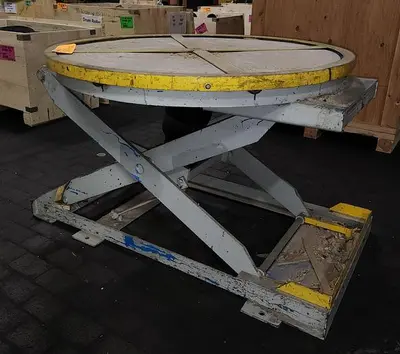

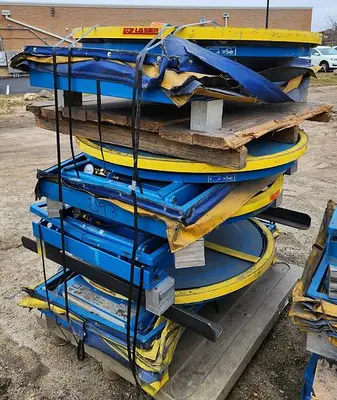

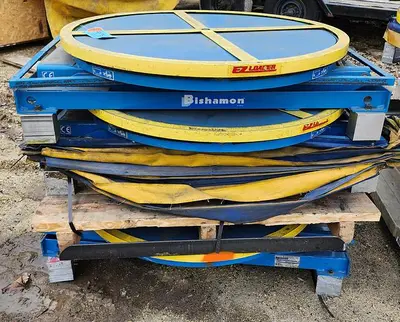

USED 2010 BISHAMON EZ-30

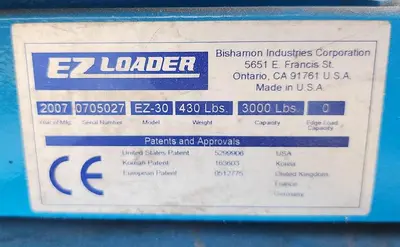

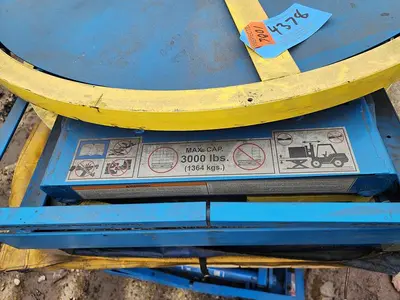

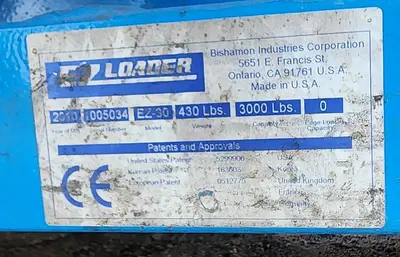

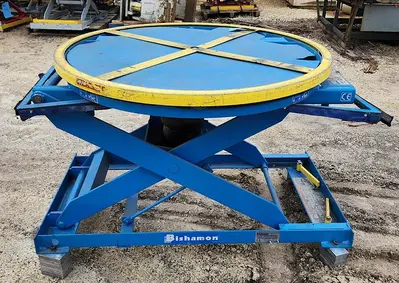

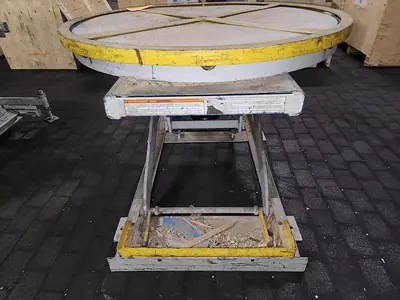

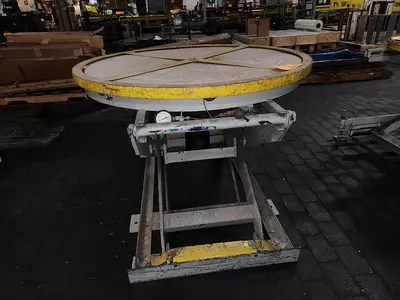

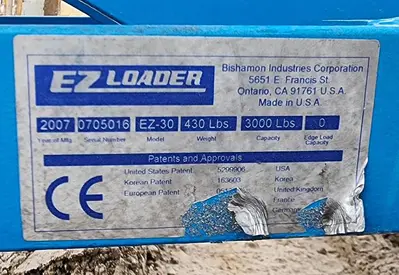

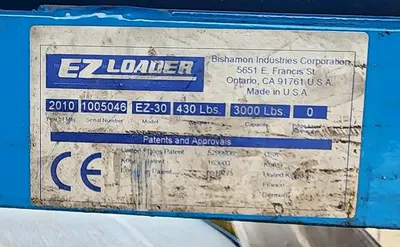

Bishamon EZ-30 Self-Leveling EZ LoaderErgonomic 3,000 lb Capacity | 360° Rotating Turntable | Pneumatic OperationThe Bishamon EZ-30 is an elite ergonomic workstation designed to eliminate the physical strain of loading and unloading pallets. Utilizing a patented Firestone Airstroke™ pneumatic actuator, this unit automatically raises and lowers as weight changes, keeping the top of the load at a constant, comfortable working height. The integrated 43" rotator ring allows the operator to bring the work to them, significantly increasing productivity while reducing the risk of back injuries.Unit OverviewManufacturer: Bishamon Industries Corp.Model: EZ-30Serial Number: [Verify via first two digits for year]Capacity: 3,000 lbs (1,364 kg)Operation: Self-Contained Pneumatic (Captive Air)2007-2010 Year ModelsTech SpecsLifting Capacity: 450 lbs (Min) to 3,000 lbs (Max)Raised Height: 30" (762 mm)Lowered Height: 8.75" (222 mm)Vertical Travel: 21.25"Turntable Diameter: 43" (Rotating 360°)Base Dimensions: 50.5" L x 30" WAir Requirements: Initial charge of 60–75 PSI (Standard Shop Air)Shipping Weight: ~500 lbsKey FeaturesAutomatic Self-Leveling: The captive air spring system adjusts automatically to load weight, requiring no electrical power or constant air connection after the initial charge.EZ-Adjust Knob: Features a 3-position adjustment knob that allows the operator to fine-tune weight sensitivity for light, medium, or heavy loads without changing air pressure.Smooth 360° Rotation: The ball-bearing center pivot provides effortless rotation of the 43" ring, allowing workers to stay in one position and eliminate reaching or stretching.Safe & Durable Construction: Built with heavy-duty structural steel and a powder-coated finish. Includes hinged maintenance bars to secure the scissor mechanism for safe inspections.Forklift Portable: The base frame includes integrated fork pockets, making it easy to reposition the unit across the warehouse as needed.

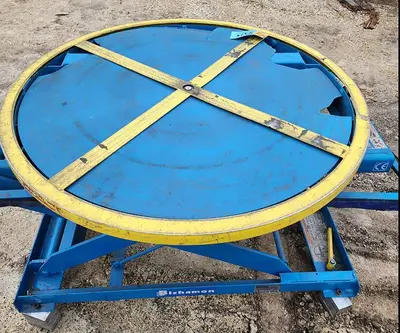

Turntable O.D.: 43"
Lift Height: 30"
Lowered Height: 10"

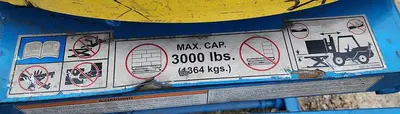

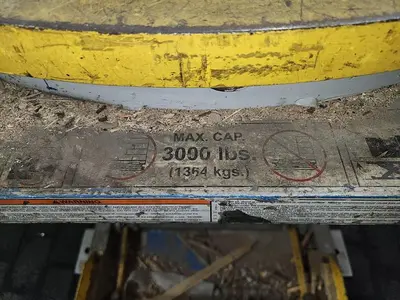

Weight Capacity: 3,000 lbs
