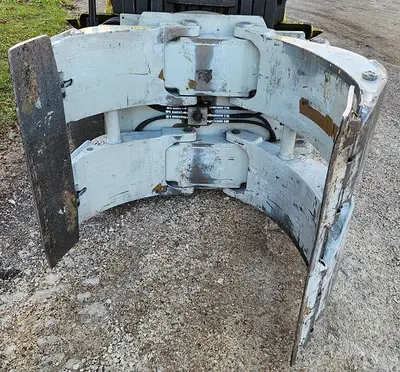

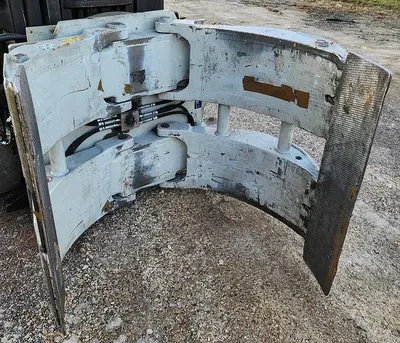

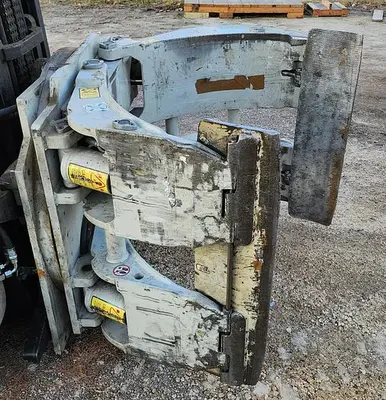

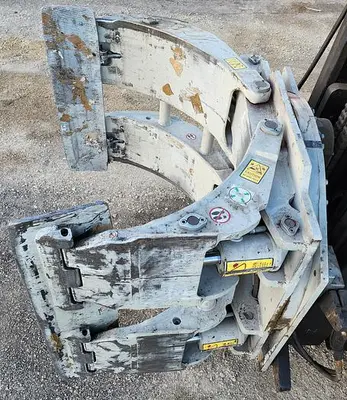

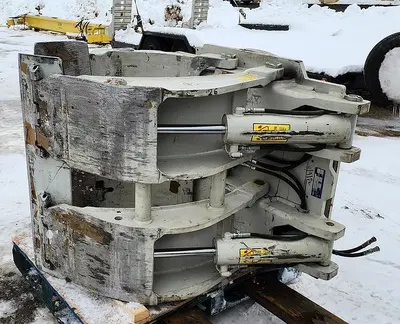

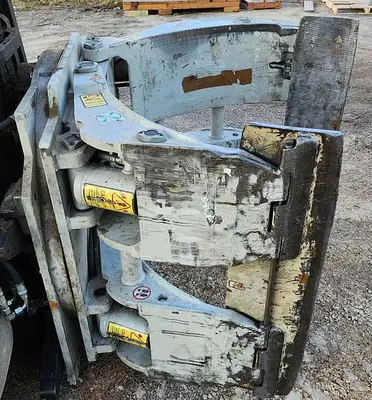

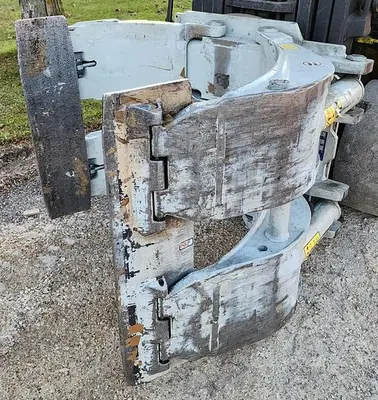

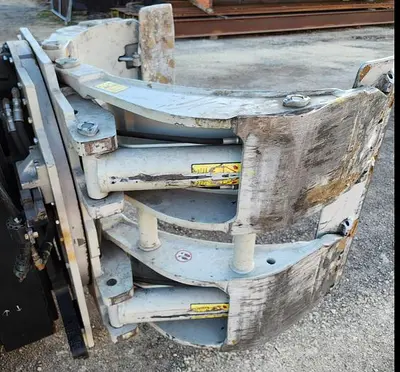

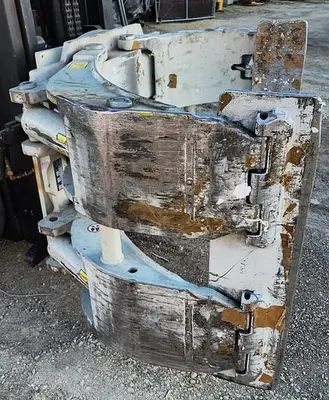

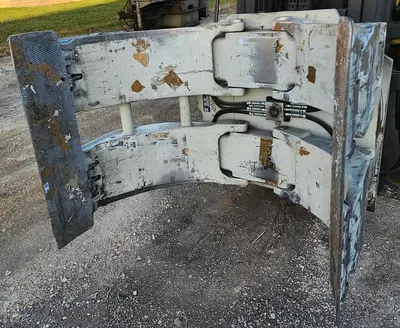

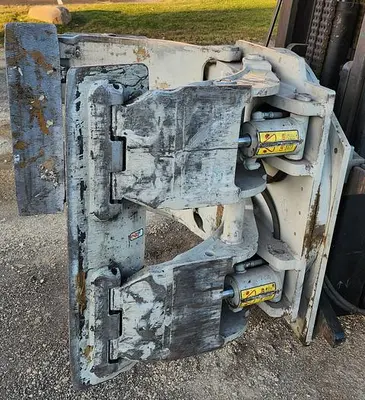

Cascade 11,000# Paper Roll ClampHigh-Capacity Industrial Attachment for Heavy-Duty Paper HandlingThis Cascade 100F series clamp is a field-proven workhorse designed for handling heavily coated stocks and large-diameter rolls. Featuring a 360° continuous rotation and an ultra-thin arm profile, it allows for tight stacking and efficient breakout in boxcars or warehouses.Unit OverviewManufacturer: Cascade CorporationModel: 100F-RCP-07CType: Rotating Paper Roll ClampFrame Style: Fixed Frame / Positioned Short ArmTech SpecsLifting Capacity: 11,000 lbs @ 25.5" Load CenterRoll Diameter Range: 10" – 51"Rotation: 360° ContinuousMounting Class: Class IV (4)Operating Pressure: 2,300 PSIAttachment Weight: ~2,830 lbsThickness (Effective): 8.3"Center of Gravity: 11.5" (Horizontal) / 19.5" (Vertical)Key FeaturesDamage Reduction: Proven contact pad shape and ultra-thin arm profile allow the clamp to "knife" between rolls without damaging the paper surface.Visibility: Excellent line-of-sight through the center of the frame, reducing handling errors and increasing operator safety.Heavy-Duty Drive: Robust rotator drivetrain built for high-torque, continuous operation in abrasive or dusty mill environments.Maintenance: Features lube-free pivot bushings for extended service life and reduced operational costs.

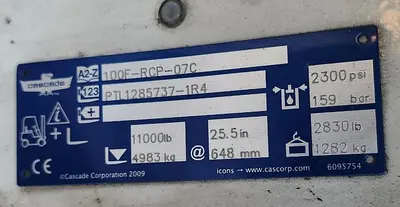

S/N: PTL1285737-1R4
Paper Roll Diameter: 60"
Roll Capacity: 11,000 lbs @ 25.5"
Roll Clamp Weight: 2830 lbs
* Type: Rotating Paper Roll Clamp
* Roll Diameter Range: 10" – 51"
* Rotation: 360° Continuous
* Mounting Class: Class IV (4)
* Attachment Weight: ~2,830 lbs
* Operating Pressure: 2,300 PSI
* Thickness (Effective): 8.3"
