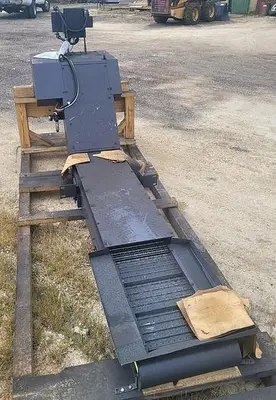

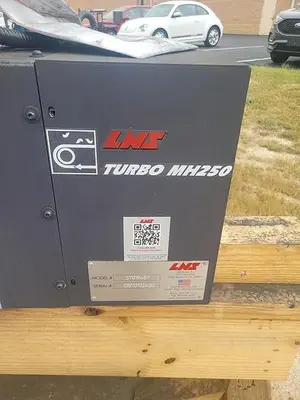

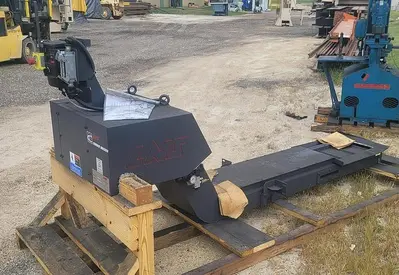

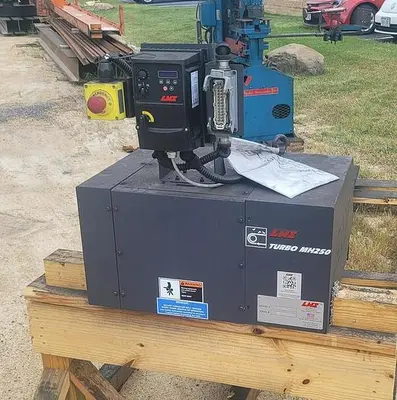

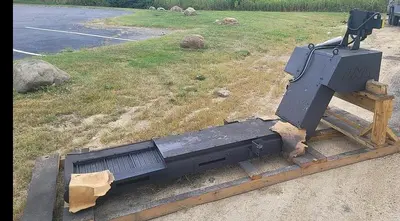

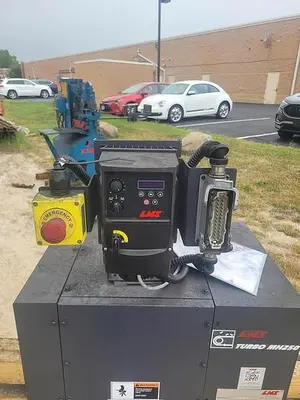

USED 2013 LNS MH250

2013 LNS Turbo MH250 Filtering Chip ConveyorNEW OLD STOCK – Advanced Self-Cleaning FiltrationThis LNS Turbo MH250 is a premium, self-cleaning chip management system designed for CNC machining centers. Unlike standard conveyors, the MH250 features integrated filter boxes that clean coolant down to 250 microns (with capabilities between 140/500 depending on screen choice), significantly extending tool life and reducing the labor-intensive need for frequent coolant tank cleanouts.Unit OverviewManufacturer: LNS GroupModel: Turbo MH250Part Number: 57019467Serial Number: 13570102430Year of Manufacture: 2013Condition: New Old Stock (Unused)Tech SpecsFiltration Level: 140 / 500 Microns (Self-Cleaning)Motor Power: 1/4 HP (0.18 kW)Gearbox Ratio: 240:1Electrical Requirements: 208-230/460V, 3-Phase, 60HzTail Height: 4.72" (Ultra-low profile for standard tanks)Side Wing Height: 3/4"Frame Width: Minimum 10.5" / Maximum 26.54"Belt Type: Cleated Belt with "Live Link" fine chip evacuationTail Height: 4.72"Minimum Frame Width: 10.5"Maximum Frame Width: 26.54"Width Increments: 2"Motor Power: 1/4 HpRatio: 240:1Key FeaturesLive Link Technology: A unique feature that allows fine chips to pass through the belt to the base of the conveyor, where they are removed by scraper cleats, preventing the "clumping" common in standard hinge belts.Self-Cleaning Filter Boxes: Internal brushes automatically clean the filter screens during every rotation, ensuring continuous coolant flow without manual intervention.Mixed Material Capability: Specifically engineered to handle a variety of materials, including aluminum, brass, and cast iron, as well as both stringy and broken chips.Reduced Maintenance: By filtering out fines before they reach the main tank, this unit prevents sludge buildup and bacterial growth, doubling or tripling the life of your coolant.

Type: Material Handling
Filtration: 140 / 500 Microns
Side wing height: 3/4"
Tail height: 4.72"
Minimum frame width: 10.5"
Maximum frame width: 26.54"
Width increments: 2"
Motor power: 1/4 Hp
Ratio: 240
* Part Number: 57019467
* Electrical Requirements: 208-230/460V, 3-Phase, 60Hz
* Ratio: 240
* Gearbox Ratio: 240
* Maximum Frame Width: 26.54"
* Minimum Frame Width: 10.5"
* Tail Height: 4.72"
* Motor Power: 1/4 Hp
* Width Increments: 2"
* Side Wing Height: 3/4"
