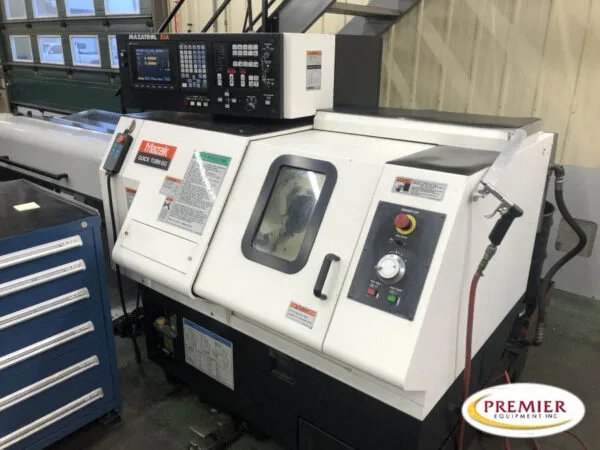

Mazak QT-6G – 2011

MAZAK QUICK TURN 6G / QT6G / QT-6G CNC Gang-Tool Chucker

Standard Chuck Diameter……………….   5″
Standard Bar Capacity…………………   1.26″
Max. Swing…………………………..   18.5″
Swing Over Carriage…………………..   3.94″
Max. Cutting Dia……………………..   3.74″
Max. Machining Length…………………   2.36″
Spindle Nose………………………………..   115MM Dia Flat
Spindle Bore…………………………   1.73″
Spindle Type……………………………….. Intergal Spindle
Spindle Speed………………………..   35 – 7000 RPM
Number of Spindle Ranges………………  1
Spindle Horsepower (Cont/30min)……………….   5HP/7.5HP (A.C.)
Spindle Torque……………………….   26 ft/lbs
Turret Type………………………………..   Gang Tool
Number of Tools………………………  6 (Max)
Turning & Facing……………………..   5/8″ x 5/8″
Boring Bar Max. Dia…………………..   3/4″ Dia.
X-Axis Travel………………………………   11.81″
Z-Axis Travel ………………………………   9.45″

Mazatrol-EIA Control
Gang Tool Plate
EIA/ISO Code Input Function
LNS ECO Load Barfeeder Short Magazine
Manual Tool Eye
Collet Chuck
Chip Conveyor
