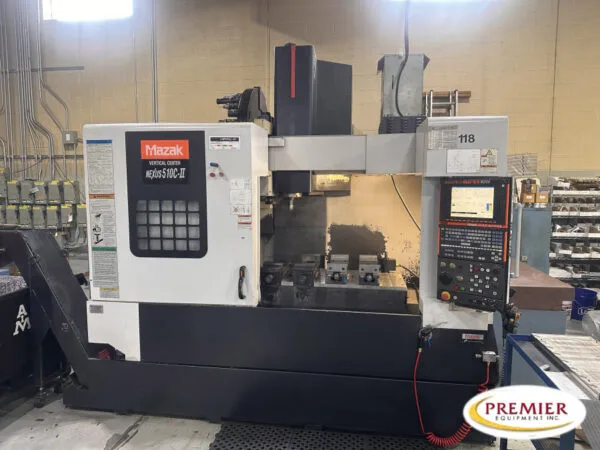

Mazak Nexus 510C-II – 2008

Mazak Nexus 510CII CNC Vertical Machining Center / VCN510C / VCN-510C

Table Size…………………………… 51.1″ x 21.6″
X-Axis Stroke………………………… 41.3″
Y-Axis Stroke………………………… 20.08″
Z-Axis Stroke………………………… 20.08″
Spindle Face to Table Surface(Min/Max)….. 5.91″/25.98″
Maximum Table Weight Capacity………….. 2,646 LBS
Spindle Speed………………………… 12,000 RPM
Spindle Motor (5MIN/10MIN/30MIN/CONT.)….. 25/20/15/10.2 HP
Spindle Taper ……………………….. CAT #40
Rapid Traverse (X,Y,Z)………………… 1417.3 IPM
Number of Tools………………………. 30

Mazatrol Matrix Nexus Control
ATLM

Chip Conveyor

Thru Spindle Coolant
