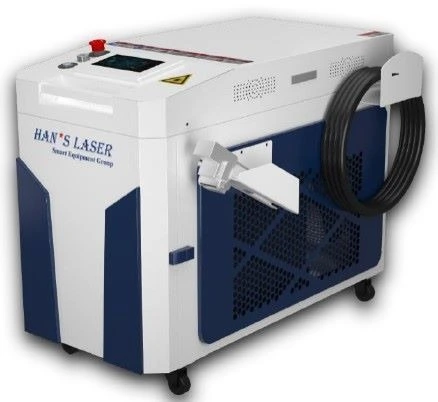

NEW HANS LASER DZW PRO SERIES

HAN'S LASER (NEW) MODEL DZW2000
PRO C LASER CLEANING MACHINE

2000 W LASER POWER
8.5 KW MACHINE POWER CONSUMPTION
3 KW LASER WITH 380V INPUT VOLTAGE
1064 +/- 10NM LASER WAVELENGTH
10M STANDARD FIBER LEGNTH
- CAN BE CUSTOMIZED
CLEANING GUN LASER GUN HEAD
0-11.81" SWING ARC WIDTH
10-100Hz SWING FREQUENCY
-20-20 (ELIMINATES UNEVEN LIGHT
EMISSION AT BOTH ENDS OF THE CLEANING TRACK.
- DEPENDING ON THE ACTUAL SITUATION, REDUCING THE VALVE
MAY MAKE THE ENDPOINT ENERGY LARGE OR SMALLER
- THE SAME APPLIES TO INCREASING THE VALVE
- PLEASE ADJUST TO IDEAL STATE
WATER COOLING COOLING SYSTEM
50 DEGREE F - 104 DEGREE F
70% NO CONDENSATION WORKING
ENVIRONMENT HUMIDITY
50 DEGREE F - 140 DEGREE F STORAGE
ENVIRONMENT TEMPERATURE

STANDARD EQUIPMENT
- 2000W FIBER-OPTIC LASER
- 10M FIBER OPTIC CABLE
- HAN'S LASER CUSTOMIZATION CONTROL SYSTEM
- 4kW CAPACITY WATER COOLER COOLING
- CLEAN FOCUSING LENS
- LASER PROTECTIVE GLASSES
- 5 - PROTECTIVE LENSES
- WHOLE MACHINE TEST REPORT
- EQUIPMENT DELIVERY LIST
- EQUIPMENT TRAINING REPORT
- EQUIPMENT INSTRUCTION MANUAL

CLEANING ABILITY - FLOATING RUST
- 118"/S CLEANING SPEED
- 709"/S EFFECTIVE BEAM/CLEANING RANGE
- 20 UM DEPTH OF CLEANING
- 30 SQUARE/H CLEANING EFFICENCY

CLEANING ABILITY - PAINT
- 118"/S CLEANING SPEED
- 709"/S EFFECTIVE BEAM/CLEANING RANGE
- 100 UM DEPTH OF CLEANING
- 14 SQUARE/H CLEANING EFFICENCY

CLEANING ABILITY - RUST
- 118"/ S CLEANING SPEED
- 709"/S EFFECTIVE BEAM/CLEANING RANGE
- 120 UM DEPTH OF CLEANING
- 9 SQUARE/H CLEANING EFFICENCY
Power: 380 (3-Phase)
