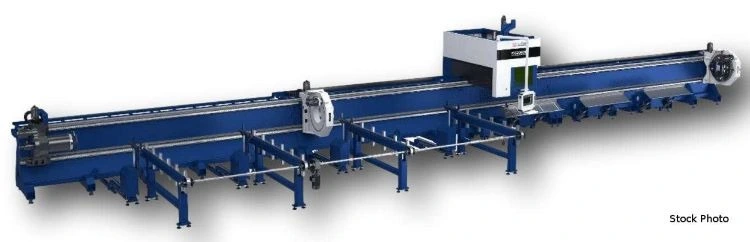

NEW HANS LASER WTX12050T 12KW

HANS LASER (NEW) MODEL WTX12050T FIBER
TUBE LASER CUTTING SYSTEM - 12KW

COMPONENTS
- WTX12050T TUBE CUTTER
- +/- 45 DEGREE BEVEL CUTTING HEAD
- HANS 1003 CNC CONTROL
- NESTING SOFTWARE
- 12000W LASER SOURCE
- WATER CHILLER
- POWER SUPPLY
- 39.37' MULTI PIPE LOADING (3 PIECES)
- 25.52' MULTI PIPE RECIEVING TYPE
ULOADING SYSTEM (3 PIECES
- DONALDSON DUST COLLECTOR
- INGERSOLL RAND AIR COMPRESSOR

ROUND TUBE PIPE
- 39' 37" X DIAMETER 1.97'' - 19.69"
- 39' 4" X 2" 19"
- 50 SIDE LENGTH 19"
ROUND PIPE 17.72" MANUAL LOADING
IS REQUIRED FOR SQUARE AND RECTANGULAR
TUBES WITH SIDE LENGTH EXCEEDING 17.72"
CHANNEL STEEL
- 10 LBS (.94" X 1.89")
- 40 LBS (15.75" X 4.09")
ANGLE STEEL
- 50 LBS (1.79" X 1.79" -9.84" X 9.84")
I STEEL
- 10 LBS (3.94" X 2.68")
- 50 LBS (19.69" X 6.38")
H STEEL
- GB HW 3.94" X 3.94" - 13.78" X 13.78"
- GB HM 5.91"X 3.94" - 15.75" X 11.81"
- GB HN 3.94" X 1.79" - 19.69" X 7.87"
MANUAL LOADING INTERVENTION
IS REQUIRED FOR PROFILES WITH SIDE
LENGTH EXCEEDING 17.72"
- +/- 19"/39" X, Y, AXIS POSITIONING ACCURACY
- +/- 19" X, Y AXIS REPEATED POSITIONING ACCURACY
- 197"/MIN X, Y SINGLE-AXIS MAXIMUM POSITIONING SPEED
- 40 RPM A, B, C AXIS MAXIMUM POSITIONING SPEED
AS THE WEIGHT OF THE PIPE INCREASES, THIS PARAMETER
NEEDS TO BE ADJUSTED ACCORDINGLY LOAD LENGTH
- 19.03'- 20.34'
- 28.87' - 30.18'
- 38.71' - 39.7'
UNLOADING LENGTH
- 0 - 19.69'
- 0 - 29.52'
- 0 - 39.37'
TAIL LENGTH
0 STRAIGHT CUTTING OF CERTAIN TUBES
CAN BE ACHIEVED WHEN THE PROCESSING NESTING
IS OPTIMIZED, WITH THE REQUIREMENT
THAT THE LAST WORKPIECE SHALL BE NO LESS
THAN 8' 2" IN LENGTH OR ALTERNATIVELY
REALIZED BY MEANS OF MICRO-CONNECTIONS
MAXIMUM CAPACITY OF SINGLE PIPE
- 4,409 LBS (GAS PRESSURE 7BAR)
- 1,121 LBS/FT PIPE WEIGHT
DIMENSION
- 95.14' X 15.75' X 12.14'
- 39.37' UNLOADING
380 VOLTS, 3 PHASE
Power: 380 (3-Phase)
