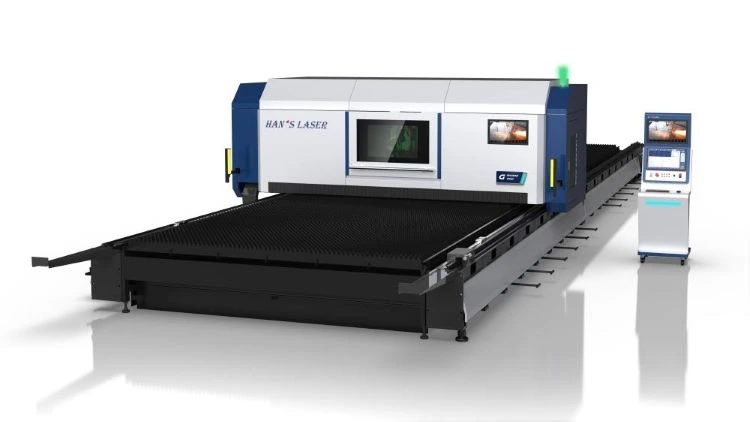

NEW HANS LASER G6025S-PRO-A

HANS LASER (NEW) MODEL G6025S-PRO-A FIBER LASER

19' 8" X 8' 2" SHEET
12 KW HANS FIBER RESONATOR WITH WATER CHILLER
240" X AXIS (6100 MM)
102" Y AXIS (2600 MM)
7" Z AXIS (180 MM)
+/- 0.0019" X AND Y AXIS POSITION ACCURACY (.05 MM)
+/- 0.0012" X AND Y AXIS REPEATABILITY (0.03 MM)
3149" X/Y AXIS MAXIMUM POSITIONING SPEED
15,873 LB MAXIUMUM LOAD OF WORKBENCH
(7200KG/PC) (2.36" WHOLE PLATE (60 MM))

FEATURES
- HIGH SPEED FIBER LASER CUTTING MACHINE
- LASER SOURCE
- CUTTING HEAD
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- TRANSFORMER
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM
- TRANSFORMER

OPTION AVAILABLE - PRICE ON REQUEST
- AIR COMPRESSOR
- DUST COLLECTOR
- MIX GAS DEVICE
- NITROGEN GENERATOR
