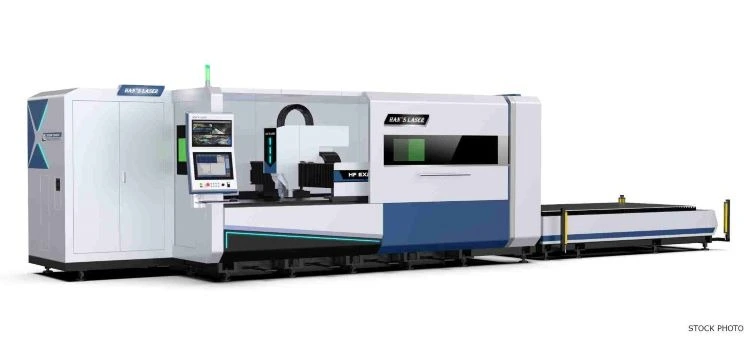

NEW HANS LASER G4020HF-S (SMART)

HANS LASER (NEW) MODEL 4020HF-S (SMART) FIBER LASER
20KW HANS RESONATOR

6' 10" X 13' 5" SHEET (2100 MM X 4100 MM)
20KW HANS FIBER RESONATOR WITH WATER CHILLER
HAN'S LASER AUTO-FOCUS CUTTING HEAD
120 MINUTES MAXIMUM SPEED
2.5 G FORCE
0.05 MM PRECISION
0.03 MM REPETITIVENESS
161" X AXIS (4100 MM)
82" Y AXIS (2100 MM)
13" Z AXIS (350 MM)
AIR COMPRESSOR
TWIN PALLET SYSTEM

STANDARD FEATURES
- REXROTH SERVO DRIVER
- HANS 1001 DIGITAL CONTROL - 17" TOUCHSCREEN
- METALIX CNC KAD PROGRAMMING AND NESTING SOFTWARE
1 SEAT OF SOFTWARE INCLUDED
- VIDEO MONITOR
1 CAMERA INSIDE THE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
CAN BE USED FOR REMOTE MONITORING DIAGNOSTICS
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT
- CLASS 1 FDA CERTIFIED
- 2 YEAR WARRANTY - PARTS LABOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- 12 AND 30KW HANS FIBER RESONATORS
- NITROGEN GENERATION SYSTEM
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATION SYSTEMS
- WORK LIFTERS UNDER PALLET (ANTI-SCRATCH)
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX ON-SITE SOFTWARE TRAINING
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
- MEZZANINE
Power: 380 (3-Phase)
