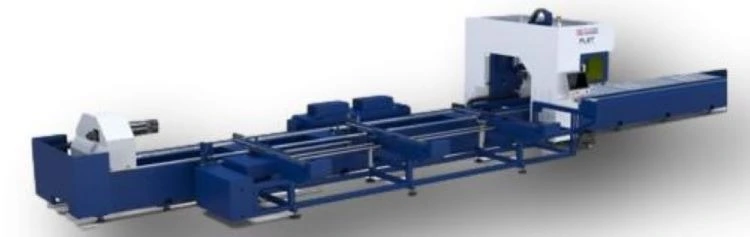

NEW HANS LASER PL2D-0606W 6KW

HANS LASER (NEW) MODEL PL2D-06W 6KW FIBER TUBE LASER

.78" - 9.45" RECTANGULAR PIPE LENGTH
PROFILES PROCESS RANGE
- U BAR
5# (1.9" X 1.45") - 20#(7.87" X 2.9")
- ANGLE STEEL
4# (1.57" X 1.57") - 11# (4.33" X 4.33")
- I STEEL
10# (3.93" X 2.67") - 20# (7.87" X 4.01")
- H STEEL
10# (3.93" X 3.93") - 20# (7.87" X 7.87")
- THE LENGTH 8.66" NEED MANUAL LOAD
+/- .019"/39.37" X, Y, AXIS POSITION SPEED
+/- 0.19" X, Y, AXIS REPOSITION SPEED
+/- 0.32'/MIN X, Y SINGLE-AXIS MAXIMUM POSITIONING SPEED
100 RPM A, B, C, AXIS MAXIMUM POSITIONING SPEED
TAIL LENGTH
- IF THERE IS SPECIAL-SHAPED PIPE OR PROFILE CUTTING,
THE EQUIPMENT TAIL MATERIAL 4.3"
- THE EQUIPMENT TAIL MAERIAL LENGTH CAN ONLY
ACHIEVE ONE OF THE THEM
661 LBS SINGLE PIPE LOADING CAPACITY

SPECIFICATIONS
- HANS CNC CONTROL
- H6000 POWER SOURCE - 6KW
- HANS CUTTING HEAD

OPTION AVAILABLE - PRICE ON REQUEST
- BEVEL CUTTING
Power: 380 (3-Phase)
