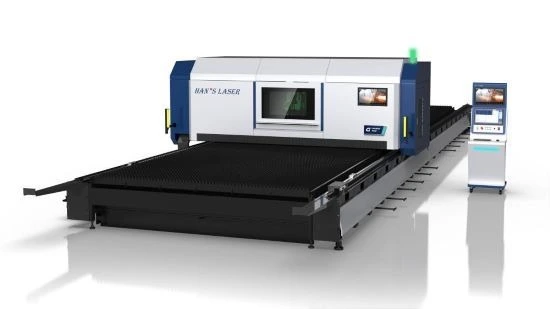

NEW HANS LASER G20040S

HANS LASER (NEW) MODEL G20040S-PRO-G
LASER 30 KW HANS

65' 7" X 13' 1" SHEET SIZE
30 KW HANS FIBER RESONATOR
WITH WATER CHILLER
826" X AXIS (21000 MM)
161" Y AXIS (4100 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS
POSTION ACCURACY (.05 MM)
+/- 0.0019" X AND Y AXIS
REPEATABILITY (0.05 MM)
+/- 0.1 DEGREE A AND B AXIS
POSITIONING ACCURACY
3149" X/Y AXIS MAXIMUM
POSITIONING SPEED
25,353 LB MAXIUMUM LOAD
OF WORKBENCH (11500KG/PC)
(2.36" WHOLE PLATE (60 MM)

FEATURES
- HIGH SPEED FIBER LASER
CUTTING MACHINE - LASERSOURCE
- BEVEL CUTTING HEAD (PRO-G)
- HAN'S GAS MIXER
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM
- DONALDSON DUST COLLECTOR
- INGERSOLL RAND COMPRESSOR
- TRANSFORMER+VOLTAGE REGULATOR
