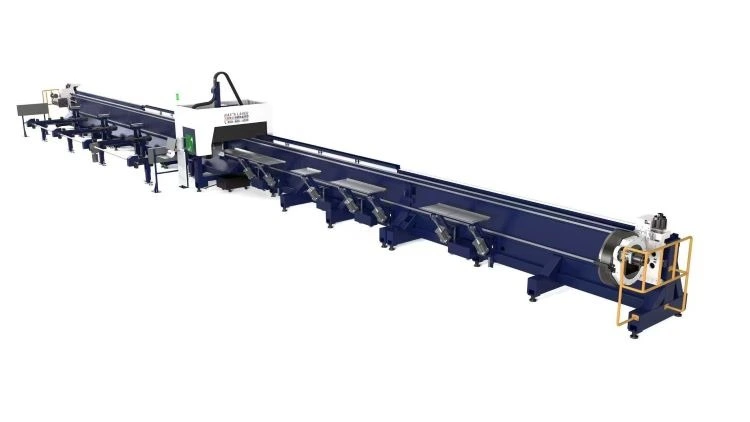

NEW HANS LASER TX9036T

HANS LASER (NEW) MODEL TX9036T CNC LASER TUBE
CUTTING MACHINE 12KW HANS

COMPONENTS
- TX9036T TUBE CUTTER
- 12,000 WATT HANS FIBER LASER
- HAN'S SERIES PIPE CUTTING SOFTWARE
- WATER CHILLER
- DUST COLLECTOR
- AIR COMPRESSOR
- TRANSFORMER
- VOLTAGE STABILIZER

SPECIFICATIONS
- 354" X - AXIS TRAVEL
- =14" Y - AXIS TRAVEL
- =13" Z - AXIS TRAVEL
MAX MACHINE RANGE
- 35" X 1.6" -13"
- 35" X 1.6" -14" 60 RPM
- 60 RPM MAX A/B/C AXIS POSITIONING ACCURACY
- ±0.020" X, Y, AXIS REPEATED POSITIONING ACCURACY
- 1,984 LBS MAX WEIGHT OF SINGLE TUBE FEEDING LENGTH
- 228" - 244" LOAD LENGTH
- 0 - 24" UNLOAD TUBE LENGTH
- 197'/MIN POSITIONING SPEED
- 380 VOLTS, 3 PHASE

OPTIONS AVAILABLE - PRICE ON REQUEST
- DONALDSON DUST COLLECTOR
- HIGH PRESSURE AIR CUTTING COMPRESSOR
- BEVEL CUTTING HEAD
- CUSTOM OUTFEED LENGTHS
Power: 380 (3-Phase)
