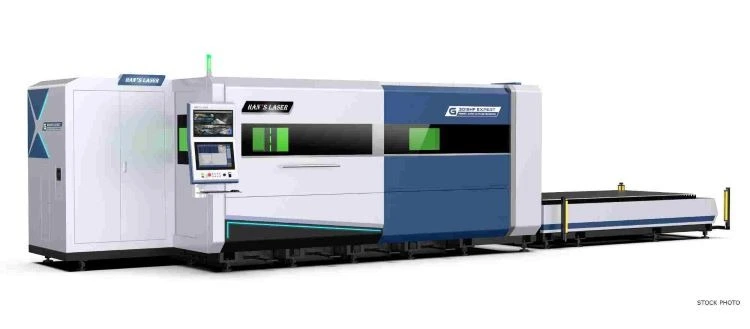

NEW HANS LASER G6025HF EXPERT

HANS LASER (NEW) MODEL G6025HF EXPERT FIBER LASER
30 KW HANS FIBER RESONATOR

20' 4" X 8' 6" SHEET (6200MM X 2600MM)
2.5G FORCE
524 FPM MAX SPEED (160 MIN/M)
244" X AXIS (6200 MM)
102" Y AXIS (2600 MM)
7" Z AXIS (180 MM)
+/- 0.0012 X AND Y AXIS POSITION ACCURACY (.03 MM)
+/- 0.0002 X AND Y AXIS POSITION ACCURACY (.02 MM)
21,164 LB WEIGHT CAPACITY (9600KG)

STANDARD FEATURES
- GUDEL GEAR BOX
- BOSCH REXROTH SERVO DRIVE
- HANS 1001 DIGITAL CONTROL - 17" TOUCHSCREEN
- METALIX CNC KAD PROGRAMMING NESTING SOFTWARE
1 SEAT OF SOFTWARE INCLUDED
- VIDEO MONITOR
1 CAMERA INSIDE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
CAN BE USED FOR REMOTE MONITORING DIAGNOSTICS
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT
- CLASS 1 FDA CERTIFIED
- 2 YEAR WARRANTY - PARTS LABOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- 20 AND 30 KW HANS FIBER RESONATORS
- NITROGEN GENERATION SYSTEM
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 9 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATION SYSTEMS
- WORK LIFTERS UNDER PALLET (ANTI-SCRATCH)
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX ON-SITE SOFTWARE TRAINING
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
- MEZZANINE
