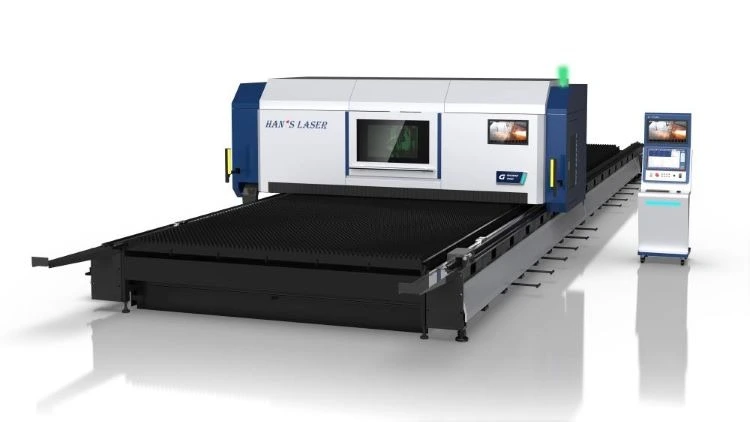

NEW HANS LASER G8030S-PRO-G

HANS LASER (NEW) MODEL G8030S-PRO-G FIBER LASER
30 KW HANS RESONATOR

26' 6" X 10' 2" SHEET
30 KW HANS FIBER RESONATOR
WATER CHILLER
318" X AXIS (8100 MM)
122" Y AXIS (3100 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS POSITION ACCURACY (.05 MM)
+/- 0.0019" X AND Y AXIS REPEATABILITY (0.05 MM)
+/- 0.1 DEGREE A AND B AXIS POSITIONING ACCURACY
3149" X/Y AXIS MAXIMUM POSITIONING SPEED
25,353 LB MAXIUMUM LOAD OF WORKBENCH
(11500KG/PC) (2.36" WHOLE PLATE (60 MM))

FEATURES
- HIGH SPEED FIBER LASER CUTTING MACHINE - LASERSOURCE
- BEVEL CUTTING HEAD (PRO-G)
- HAN'S GAS MIXER
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM
- DONALDSON DUST COLLECTOR
- INGERSOL RAND COMPRESSOR
- TRANSFORMER+VOLTAGE REGULAR

-

-
