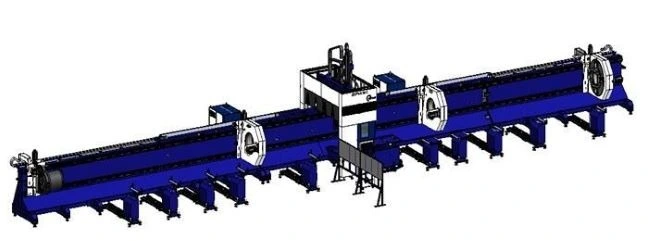

NEW HANS LASER WPX12066F

HANS LASER (NEW) MODEL WPX12066F FIBER TUBE
LASER -12KW HANS

WPX 120066F FIBER LASER PIPE CUTTING MACHINE
BEVEL CUTTING HEAD
LANTEK FIVE-AXIS PIPE CUTTING SOFTWARE
PROFILE PACKAGE
12000W HANS LASER RESONATOR + CHILLER
DONALDSON AIR COMPRESSOR
AIR COMPRESSOR

PERFORMANCE PARAMETER

PIPE PROCESSING RANGE (LENGTH X PIPE DIAMETER)
- 39' 4" X f 3" - 26"
- 39' 4" X ? 3" - 17"
- RECTANGULAR TUBE SIDE LENGTH =3"
- RECTANGULAR TUBE CIRCUMSCRIBED CIRLE = 25"
MULTIPLE PAIRS OF JAWS WHICH NEED
TO BE REPLACED IN DIFFERENT RANGES PIPE WITH
CIRCUMSCRIBED CIRCLES 25" REQUIRE MANUAL LOADING
- 41' X-AXIS TRAVEL
- =1' 7" Y-AXIS TRAVEL
- INFINITE SPINS A, B, C, D AXIS TRAVEL
- = 13" Z-AXIS TRAVEL
- ±.0040" - 3' 3" X, Y-AXIS POSITIONING ACCURACY
- ±.0040" REPEATABLE POSITIONING ACCURACY OF X AND Y AXIS
- 1545"/MINUTE MAXIMUM POSITIONING SPEED FO X, Y-SINGLE AXIS
- 30 RPM MAXIMUM POSITIONING SPEED OF A, B, C, D-AXIS
AS THE WEIGHT OF THE PIPE INCREASES
THIS PARAMETER NEEDS TO BE ADJUSTED ACCORDINGLY
- ±45 DEGREE BEVEL CUTTING RANGE
FEEDING LENGTH
- 19' - 20'
- 28' 10" - 30' 10"
- 38' 8" - 39' 8"
39' 4" CUTTING LENGTH
=0 TAIL LENGTH
- STRAIGHT CUTTING OF SOME PIPES
CAN BE ACHIEVED WHEN THE PROCESS LAYOUT IS REASONABLE
AND THE LAST WORKPIECE IS REQUIRED TO BE =9' 6"
OR AVHIEVED THROUGH MICRO-CONNECTION

-
