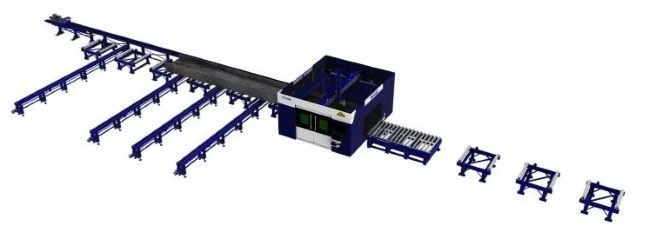

NEW HANS LASER H12560BF-H20000

HANS LASER (NEW) MODEL H12560BF-H20000
STRUCTURAL STEEL CUTTING LINE

H12560BF STEEL LASER CUTTING MACHINE
HL-C-20000 LASER SOURCE
AUTO FOCUS CUTTING HEAD
20KW HANS RESONATOR AND CHILLER
120KVA REGULATED POWER SUPPLY
18 METER IN AND OUT
NESTING SOFTWARE
AUTOMATIC FEEDER
AUTOMATIC UNLOADER
TWO DONALDSON DUST COLLECTOR
AIR COMPRESSOR
TRANSFORMER (SPECIFY CUSTOMER POWER REQUIREMENT)

- ZERO TRAILING ANY PORT AND GRPAHIC
CAN ACHIEVE ZERO TAILINGS CUTTING HIGH PRECISION
- LIGHT CUTTING PRECISON, SAVING
TIME IN THE SUBSEQUENT PROCESS LARGE RANGE
MAXIMUM SUPPORT FOR H STEEL 4' 1" - 1' 4" CUTTING
- HIGH EFFICIENCY MAXIMUM RUNNING SPEED
FOR THE 3D CUTTING HOST IS 1575"/MIN
-FULL PIPE UP MAXIMUM SUPPORT FOR 39'
OF FULL-LENGTH RAW MATERIALS ONE-TIME
FAST LOADING AND CUTTING
- FULL PIPE DOWN MAXIMUM SUPPORT FOR 39'
OF FULL LENGTH H STEEL CUTTING AND UNLOADING
- HIGH SAFETY THE LASER RADIATION PROTECTION
AREA IN THE CUTTING AREA IS FULLY PROTECTED
AND HAS HIGH SAFETY
- 3D CUTTING SUPPORTS PROFILE 90 DEGREE LEFT
AND RIGHT 45 DEGREE BEVEL CUTTING
OF WING PLATES FRONT AND BACK
- UNIFIED PROCESS H-STEEL HAS 5 TRADITIONAL
PROCESSES AND THE H-STEEL CUTTING MACHINE CAN
PROCESS AND SHAPE IT IN ONE TIME
- AUTOMATIC LOADING AND UNLOADING SUPPORTS
AUTOMATIC LOADING AND UNLOADING IN MULTIPLE H-STEEL
SAVING LABOR UNIFIED PROCESS

PRCOESSING AREA
- H-BEAM MAXIMUM
WEB 4' 1" -- WING 1' 4"
- H-BEAM MINIMUM
WEB 6" -- WING 4"
- FEEDING LENGTH 18000 (CUSTOMIZABLE)
WING BEVEL CUTTING ANGLE 0 - 45 DEGREE
2' 11" X-AXIS TRAVEL
7' 10" Y-AXIS TRAVEL
3' 11" Z-AXIS TRAVEL

X, Y-AXIS POSITIONING ACCURACY ± 0.003"
X, Y-AXIS REPEAT POSITIONING ACCURACY ±0.003"
A-AXIS, B-AXIS POSITIONING ACCURACY ±0.1 DEGREE

X/Y-AXIS MAXIMUM POSITIONING AND SPEED 1575"/MINUTE
